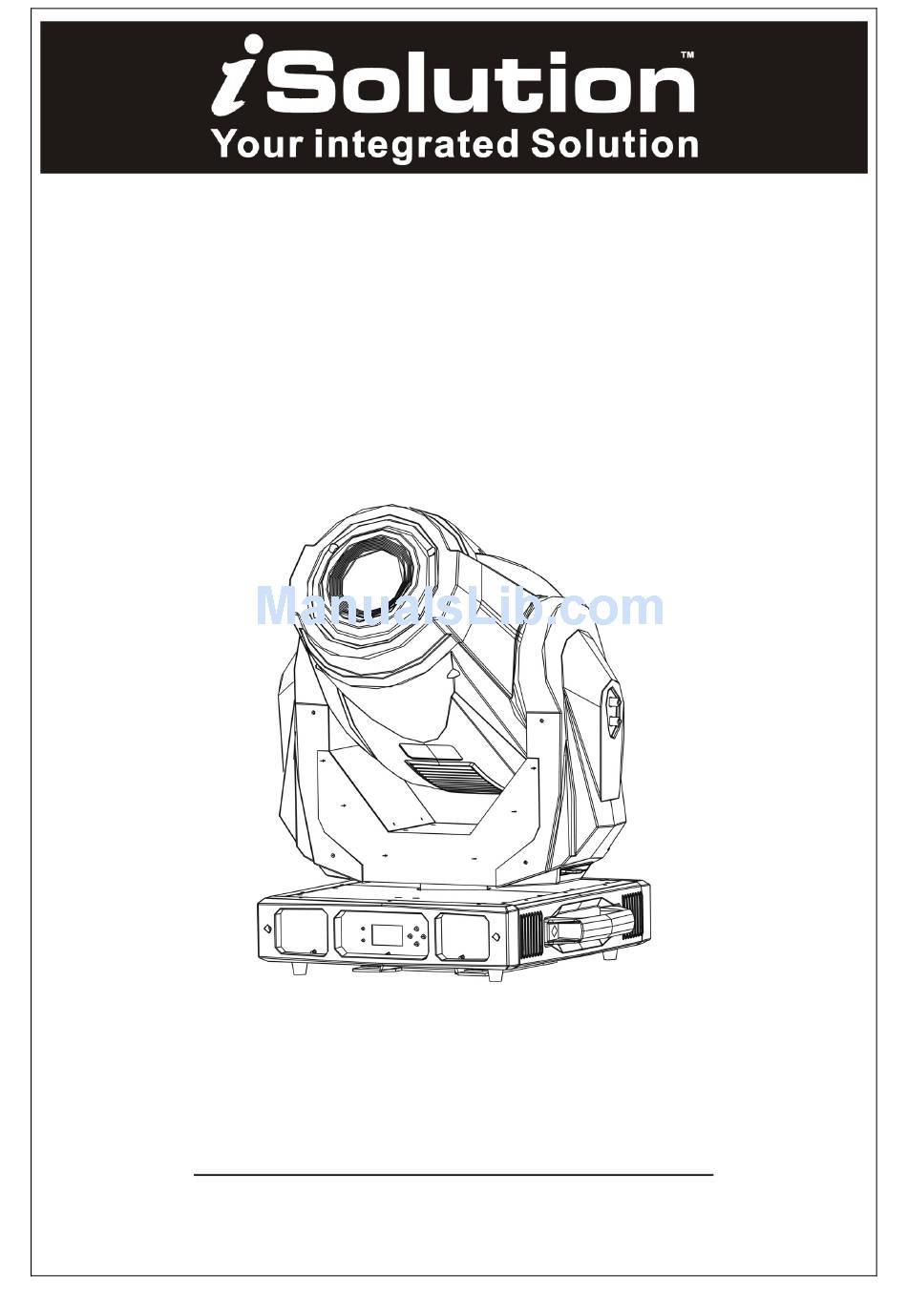

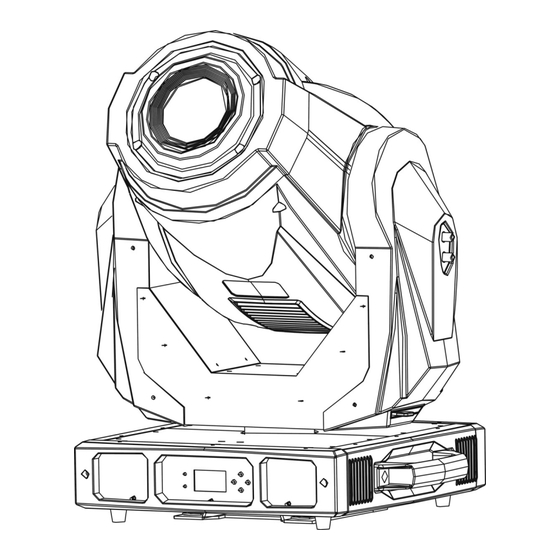

  • Page 1 Xperior 300SZ Spot User Guide Please read these instructions carefully before use...

  • Page 2: Table Of Contents

    XP-300 SZ TABLE OF CONTENTS 1. Safety Instruction ..................2  2. Installation ....................4  3. Technical Specification ................5  4. Description ....................8  4.1 Description of the fixture ..............8  4.2 Control Panel ..................8 5. Gobo and Lamp ..................9  5.1 Inserting/Exchanging rotating gobos ...........

  • Page 3: Safety Instruction

    XP-300 SZ 1. Safety Instruction Please read carefully the instruction manual, which includes important information about the installation, usage and maintenance. WARNING Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction manual. Important: Damages caused by the disregard of this user manual are not subject to warranty.
  • Page 4 XP-300 SZ during its operation, and allow about 15 minutes for cooling the unit down before replacing bulb or maintenance as it could be very hot. Avoid any inflammable liquids, water or metal objects entering the unit. Once it happens, cut off the mains power immediately. Do not operate in dirty or dusty environment, do clean fixtures regularly.

  • Page 5: Installation

    XP-300 SZ 2. Installation Unpacking the fixture (for flight case pack only) 1. Stop the flight case via the brake sheet above the wheels. 2. Unlock the lock modules (1) and open the cover board. 3. Prop the cover board with lid bracket. 4.

  • Page 6: Technical Specification

    XP-300 SZ 3. Technical Specification Power supply - AC 100~240V 50/60Hz Power Consumption - 440W (230V) - 460W (120V) Fuse - T 10 A Lamp - Philips MSR Gold 300/2 mini FastFit Battery backup display - Setting DMX address or other functions without connecting to mains power. - Battery for LCD display charges automatically when the fixtures connects to the mains power.
  • Page 7 XP-300 SZ - Color wheel: 7 dichroic colors + open. - Rainbow effect in both directions. - Easy calibration and maintenance by magnetic home positioning. - CMY speed adjustable. - Optional multiple preset colors and macros available. Gobo wheel - Gobo size: Ø26.8mm (Ø24mm for image) - Gobo Wheel 1: 7 rotating, indexable, easily replaceable gobos + open.
  • Page 8 XP-300 SZ Photometric diagram DMX Channels Mode Mode 1 Mode 2 Mode 3 22-CH 22-CH 25-CH Shutter Pan Fine Dimmer Pan Fine Tilt Cyan Tilt Tilt Fine Magenta Tilt Fine Pan /Tilt Speed Yellow Pan /Tilt Speed Shutter Color Function Dimmer Gobo 1 Pan/Tilt Macro...

  • Page 9: Description

    XP-300 SZ Zoom Focus Shutter Dimmer Dimmer Fine 4. Description 4.1 Description of the fixture 1. Arm 2. Front panel 3. head 4. Tilt lock button (Black) 5. Tilt unlock button (Gray) 6. Pan lock 7. Handle 8. Base Antenna (for XP-300SZ WT only) The head can be locked for transportation protection-the tilt lock button (4) is pressed and the pan lock/unlock lever (6) is in lock position.

  • Page 10: Gobo And Lamp

    XP-300 SZ ○ Button MENU To enter into move backward or leave the menu To go backward to move up in the menu DOWN To go to move down in the menu ENTER To perform the desired functions ○ 4 Antenna (for XP-300SZ WT only) Receive wireless signal from a wide range ○...

  • Page 11: Lamp

    XP-300 SZ CAUTION: Never unscrew the screws of the rotating gobo as the ball bearing will otherwise be opened! Please follow the steps below to insert/change rotating gobos 1. Open the cover by loosening the fastening screws on the cover. 2.

  • Page 12: How To Set The Unit

    XP-300 SZ shielding. When lighting up, the lamp operates at high pressure and there is a slight risk of arc tube rupture. The risk increases with age, temperature and improper handling of the lamp. Do not use the lamp longer than its lifespan. Make sure the lamp is located in the center of the reflector for the best projection.

  • Page 13: Main Function

    XP-300 SZ Fig.4 Fig.5 Explanation of fig.5: Base 40°C Present temperature of base CPU is 40°C Present start address Md.1 22Ch. Present channel mode is mode 1 (22 channels mode) Lamp 30°C Present temperature of lamp is 30°C Warning signal blinking direct resetting error 6.2 Main Function Turn on the unit, press MENU button into menu mode, press UP and DOWN button until the required function is shown on the monitor.
  • Page 14 XP-300 SZ...

  • Page 15: Dmx Functions

    XP-300 SZ DMX Functions Enter menu mode, select DMX Functions, press ENTER button to confirm, use UP and DOWN button to select DMX Address, DMX Channel Mode, View DMX Value or W-DMX Setting. DMX Address—DMX512 address setting Select DMX Address, press ENTER button to confirm, the present address will blink on the display, use UP and DOWN button to adjust the address from 0 to 512, press ENTER button to store.
  • Page 16 XP-300 SZ value will show on the display, use UP and DOWN button to view other DMX value. Press MENU button back to the last menu or let the unit idle one minute to exit menu mode. WDMX Setting—wireless control setting (For the unit with wireless receiver built-in only) Select WDMX Setting, press ENTER button to confirm.
  • Page 17 XP-300 SZ Select Pan Inverse, press ENTER button to confirm, present mode will blink on the display, use UP and DOWN button to select No (normal) or Yes (pan inverse), press ENTER button to store. Press MENU button back to the last menu or let the unit idle one minute to exit menu mode.
  • Page 18 XP-300 SZ DOWN button to select On/Off, State/Power on, Off Via Dmx, On if Dmx on, Off if Dmx off, Cooling Mode, Ignition Delay or Low Power Delay.. On/Off — Turn on/off the lamp Select On/Off, press ENTER button to confirm, present mode will blink on the display, use UP and DOWN button to select On (lamp on) or Off (lamp off), press ENTER button to store.

  • Page 19: Display Setting

    XP-300 SZ Select Off If Dmx Off, press ENTER button to confirm, present mode will blink on the display, use UP and DOWN button to select Yes (Lamp turns off when DMX signal is cut off), press ENTER button to store. Press MENU button back to the last menu or let the unit idle one minute to exit menu mode.

  • Page 20: Fixture Test

    XP-300 SZ display), press ENTER button to store. Press MENU button back to the last menu or let the unit idle one minute to exit menu mode. Backlight Auto Off Select Backlight Auto Off, press ENTER button to confirm, present mode will blink on the display, use UP and DOWN button to select No (display always on) or Yes (display goes off one minute after exiting menu mode), press ENTER button to store.

  • Page 21: Fixture Information

    XP-300 SZ the display, use Up and DOWN button to select channel, press ENTER button to confirm, then use UP and DOWN button to adjust the value, press ENTER button to store, the fixture will run as the channel value indicates. Press MENU button back to the last menu or exit menu mode idling one minute.
  • Page 22 XP-300 SZ press ENTER button to store. Press MENU button to exit. Color/CMY Reset Color/CMY — Select Color/CMY, press ENTER button to confirm, use UP and DOWN button to select Yes (the unit will run built-in program to reset color and CMY to their home positions) or No, press ENTER button to store.

  • Page 23: Home Position Adjustment

    XP-300 SZ Special Functions Enter menu mode, select Special Functions, press ENTER button to confirm, use UP and DOWN button to select Fixture Maintenance or Factory Setting. Fixture Maintenance Select Fixture Maintenance, press ENTER button to confirm, use UP and DOWN button to select Interval or Remain Time.
  • Page 24 XP-300 SZ Pan—pan home position adjust Enter offset mode, Select Pan, press ENTER button to confirm, the present position will blink on the display, use UP and DOWN button to offset the value from -128 to 127, press ENTER button to store. Press MENU button to exit. Tilt—Tilt home position adjust Enter offset mode, Select Tilt, press ENTER button to confirm, the present position will blink on the display, use UP and DOWN button to offset the value from -128 to 127, press...
  • Page 25 XP-300 SZ ENTER button to store. Press MENU button to exit. Color—Color home position adjust Enter offset mode, Select Color, press ENTER button to confirm, the present position will blink on the display, use UP and DOWN button to offset the value from -128 to 127, press ENTER button to store.
  • Page 26 XP-300 SZ Iris—Iris home position adjust Enter offset mode, Select Iris, press ENTER button to confirm, the present position will blink on the display, use UP and DOWN button to offset the value from 0 to 255, press ENTER button to store. Press MENU button to exit. Prism—Prism home position adjust Enter offset mode, Select Prism, press ENTER button to confirm, the present position will blink on the display, use UP and DOWN button to offset the value from 0 to 255, press...

  • Page 27: Error Information

    XP-300 SZ 6.4. Error Information Lamp Startup Fail It appears when there is no lamp or some wires are damaged. Temperature Sense Error It appears when temperature check board is damaged. Lamp Too Hot Power Off It appears when temperature is detected higher than 110℃. Check if the unit is properly ventilated, or fans or temperature check board may is damaged.

  • Page 28: Control By Universal Dmx Controller

    XP-300 SZ 7. Control By Universal DMX Controller 7.1 Connection ATTENTION Termination reduces signal errors and to avoid signal transmission problems and interference. It is always advisable to connect a DMX terminal (Resistance 120 ohm 1/4W between pin2 (DMX-) and pin3 (DMX+) of the last fixture). 1.

  • Page 29: Channel Mode Setting

    XP-300 SZ when one of the units’ power is disconnected. 4. Each lighting unit needs to have a DMX address to receive the data by the controller. The address number is between 0-511 (usually 0 & 1 are equal to 1). 5.
  • Page 30 XP-300 SZ Attention: 1. The unit will maintain the last condition until reset if you cut-off the DMX signal. 2. For the channel Function, keep the value for about 5 seconds, then the corresponding function will take into effect. 22 Channels mode 1:...
  • Page 31 XP-300 SZ...
  • Page 32 XP-300 SZ 22 Channels mode 2:...
  • Page 33 XP-300 SZ...
  • Page 34 XP-300 SZ 29 Channels mode:...
  • Page 35 XP-300 SZ...

  • Page 36: Update Software

    XP-300 SZ 8. Update Software Download update file from our web site, follow the user manual of IU-01 to update the fixture via IU-01(not included). 9. Troubleshooting Following are a few common problems that may occur during operation. Here are some suggestions for easy troubleshooting: A.
  • Page 37 XP-300 SZ of the unit or the previous one. 4. Try to use another DMX controller. 5. Check to see if the DMX cables run near or run alongside to high voltage cables that may cause damage or interference to DMX interface circuit. C.

  • Page 38: Maintenance And Cleaning

    XP-300 SZ 10. Maintenance and Cleaning Maintenance: Ignitor Ballast Filter A. As the pictures shown above, please replace the cable or cable joints immediately once they’ve turned yellow. B. Do maintain the fixtures every two months and make sure that all the screws and terminals have been locked firmly to make sure the normal performance of the fixtures.
  • Page 39 EC Declaration of Conformity We declare that our products (lighting equipments) comply with the following specification and bears CE mark in accordance with the provision of the Electromagnetic Compatibility (EMC) Directive 89/336/EEC. EN55103-1:1996; EN55103-2:1996; EN61000-3-2:2006 EN61000-3-3:1995+A1:2001+A2:2005. & Harmonized Standard EN 60598-2-17: 1989 +A2: 1991 IEC 60598-1: 2008 Part 1:General requirements and test Following the provisions of the low voltage directive 73/23/EEC and...
