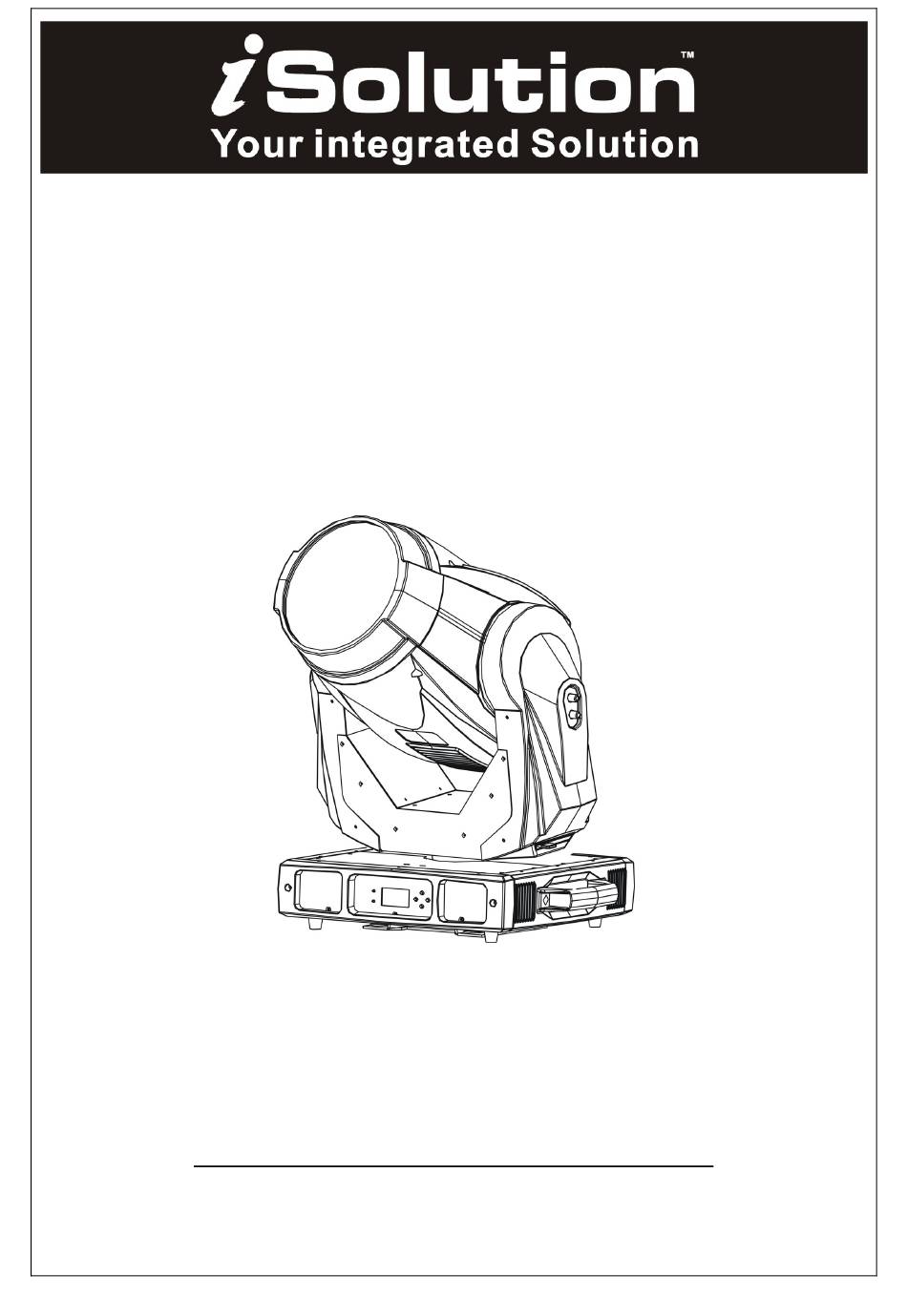

  • Page 1 Xperior 300A Beam User Guide Please read these instructions carefully before use...

  • Page 3: Table Of Contents

    XP-300A Beam TABLE OF CONTENTS 1. Safety Instruction ..................3   2. Installation ....................5   3. Technical Specification ................6   4. Description ....................9   4.1 Description of the fixture ..................9   4.2 Control Panel ......................9 5.

  • Page 4: Safety Instruction

    XP-300A Beam 1. Safety Instruction Please read carefully the instruction manual, which includes important information about the installation, usage and maintenance. WARNING Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction manual. Important: Damages caused by the disregard of this user manual are not subject to warranty.
  • Page 5 XP-300A Beam during its operation, and allow about 15 minutes for cooling the unit down before replacing bulb or maintenance as it could be very hot. Avoid any inflammable liquids, water or metal objects entering the unit. Once it happens, cut off the mains power immediately. Do not operate in dirty or dusty environment;...

  • Page 6: Installation

    XP-300A Beam Product Items User manual 2 x Omega clamps 2. Installation Unpacking the fixture (for flight case pack only) 1. Stop the flight case via the brake sheet above the wheels. 2. Unlock the lock modules (1) and open the cover board. 3.

  • Page 7: Technical Specification

    XP-300A Beam Attention: Always ensure that the structure to which you are attaching the unit is secure and is able to support a weight of 10 times of the unit’s weight without any harming deformation. Also always use a safety cable that can hold 12 times of the weight of the unit when installing the fixture.
  • Page 8 XP-300A Beam Optical system - High efficiency optical system, delivering extremely powerful output - High quality dichroic lenses - Beam angle: 8° Movement - Pan: 540° - Tilt: 270° - Pan/Tilt moving speed adjustable. - Automatic Pan/Tilt correction. - Easy calibration and maintenance by magnetic home positioning. - Pan/Tilt position lock for transporting protection.
  • Page 9 XP-300A Beam - Date input/output: 3/5 Pin XLR socket Dimension - 447 × 369 × 604 mm Weight - 21kgs Photometric diagram DMX Channels Mode Mode 1 Mode 2 Mode 3 18-CH 18-CH 25-CH Shutter Pan Fine Dimmer Pan Fine Tilt Cyan Tilt...

  • Page 10: Description

    XP-300A Beam Frost P/T Macro P/T Macro Speed Preset Color Color Macro Function 4. Description 4.1 Description of the fixture 1. Arm 2. Front panel 3. head 4. Tilt lock button (Black) 5. Tilt unlock button (Gray) 6. Pan lock 7.

  • Page 11: Gobo And Lamp

    XP-300A Beam ○ POWER Power on DMX input present ○ Button MENU To enter into, move backward or leave the menu To go backward to move up in the menu DOWN To go to move down in the menu ENTER To perform the desired functions ○...

  • Page 12: Lamp

    XP-300A Beam DANGER! Install the gobos with the device switched off only. Unplug from mains before changing gobos! CAUTION: Never unscrew the screws of the rotating gobo as the ball bearing will otherwise be opened! Please follow the steps below to insert/change rotating gobos 1.
  • Page 13 XP-300A Beam controller) and let the unit run at least five minutes to cool down before switching off the mains supply. Never handle the lamp or luminaire when it is hot. Do not touch the bulb with bare hands. If this happens, clean the lamp with denatured alcohol and wipe it with a lint free cloth before installation.

  • Page 14: How To Set The Unit

    XP-300A Beam 6. How To Set The Unit 6.1 Power On Display Every time you turn on the unit, it will run built-in program to reset all motors to their home position, the display will show as fig.4, you may hear some noises for about 20 seconds. It will show warning sign if it goes wrong during resetting and you can press the MENU button to view the error information.
  • Page 15 XP-300A Beam The main functions are shown below（the grayed boxes are preset settings）:...
  • Page 16 XP-300A Beam DMX Functions Enter menu mode, select DMX Functions, press ENTER button to confirm, use UP and DOWN button to select DMX Address, DMX Channel Mode, View DMX Value or WDMX Setting. DMX Address DMX512 address setting — Select DMX Address, press ENTER button to confirm, the present address will blink on the display, use UP and DOWN button to adjust the address from 0 to 512, press ENTER button to store.
  • Page 17 XP-300A Beam button to store. Press MENU button back to the last menu or let the unit idle one minute to exit menu mode. View DMX Value Select View DMX Value, press ENTER button to confirm. Channel function and its value will show on the display, use UP and DOWN button to view other DMX value.
  • Page 18 XP-300A Beam Fixture Setting Enter menu mode, select Fixture Setting, press ENTER button to confirm, use UP and DOWN button to select Pan Inverse, Tile Inverse, BL.O. P/T Moving, BL.O. Color Change or BL.O. Gobo Change. Pan Inverse Select Pan Inverse, press ENTER button to confirm, present mode will blink on the display, use UP and DOWN button to select No (normal) or Yes (pan inverse), press ENTER button to store.
  • Page 19 XP-300A Beam Yes (blackout while changing gobo), press ENTER button to store. Press MENU button back to the last menu or let the unit idle one minute to exit menu mode. Lamp Setting Attention: The lamp will not be on unit detected temperature is lower than 45 °...
  • Page 20 XP-300A Beam display, use UP and DOWN button to select Yes (Lamp turns on when DMX signal is detected) or No (keep the present state), press ENTER button to store. Press MENU button back to the last menu or let the unit idle one minute to exit menu mode (If the lamp is off via DMX signal, you can reconnect the DMX controller to make the lamp on).
  • Page 21 XP-300A Beam and DOWN button to select Display Inverse, Backlight Auto Off, Backlight Intensity or Temperature unit. Display Inverse Select Display Inverse, press ENTER button to confirm, present mode will blink on the display, use UP and DOWN button to select No (normal display) or Yes (inverse display), press ENTER button to store.
  • Page 22 XP-300A Beam Select Auto Test, press ENTER button to confirm, the unit will run built-in programs to automatically test pan, tilt, color, CMY, gobo, gobo rotation, shutter, dimmer, prism, prism rotation, frost, zoom, and lamp on/off. Press MENU button back to the last menu or exit menu mode after auto test.
  • Page 23 XP-300A Beam Reset Functions Enter menu mode, select Reset Function, press ENTER button to confirm, use UP and DOWN button to select Pan/Tilt, Shutter/Dimmer, Color/CMY, Gobo, Prism/Frost or All. Pan/Tilt Reset Pan/Tilt — Select Pan/Tilt, press ENTER button to confirm, use UP and DOWN button to select Yes (the unit will run built-in program to reset pan and tilt to their home positions) or No, press ENTER button to store.

  • Page 24: Home Position Adjustment

    XP-300A Beam Select All, press ENTER button to confirm, use UP and DOWN button to select Yes (the unit will run built-in program to reset all motors to their home positions) or No, press ENTER button to store. Press MENU button to exit. Special Functions Enter menu mode, select Special Functions, press ENTER button to confirm, use UP and DOWN button to select Fixture Maintenance or Factory Setting.
  • Page 25 XP-300A Beam — pan home position adjust Enter offset mode, Select Pan, press ENTER button to confirm, the present position will blink on the display, use UP and DOWN button to offset the value from -128 to 127, press ENTER button to store. Press MENU button to exit. Tilt Tilt home position adjust —...
  • Page 26 XP-300A Beam Color Color home position adjust — Enter offset mode, Select Color, press ENTER button to confirm, the present position will blink on the display, use UP and DOWN button to offset the value from -128 to 127, press ENTER button to store.

  • Page 27: Error Information

    XP-300A Beam ENTER button to store. Press MENU button to exit. R-Prism Prism rotation home position adjust — Enter offset mode, Select R-Prism, press ENTER button to confirm, the present position will blink on the display, use UP and DOWN button to offset the value from -128 to 127, press ENTER button to store.

  • Page 28: Control By Universal Dmx Controller

    XP-300A Beam CPU-B Error, CPU-C Error, CPU-D Error They appear when board P.C or some wires are damaged. Pan Reset Error, Pan Encode Error, Tilt Reset Error, Tilt Encode Error, Shutter Reset Fail, Dimmer Reset Fail, Color Reset Fail, Cyan Reset Fail, Magenta Reset Fail, Yellow Reset Fail, Gobo Reset Fail, R-Gobo Reset Fail, Effect Reset Fail, R-Effect Reset Fail, and Frost Reset Fail They may appear when turning on or resetting the unit, for some parts such as board P.C...

  • Page 29: Channel Mode Setting

    XP-300A Beam ATTENTION Termination reduces signal errors and to avoid signal transmission problems and interference. It is always advisable to connect a DMX terminal (Resistance 120 ohm 1/4W between pin2 (DMX-) and pin3 (DMX+) of the last fixture). 1. At last unit, the DMX cable has to be terminated with a terminator. Solder a 120-ohm 1/4W resistor between pin 2(DMX-) and pin 3(DMX+) into a 3-pin XLR-plug and plug it in the DMX-output of the last unit.

  • Page 30: Address Setting

    XP-300A Beam 7.3 Address Setting If you use a universal DMX controller to control the units, you have to set DMX address from 1 to 512 so that the units can receive DMX signal. Press MENU button to enter menu mode, select DMX Functions, press ENTER button to confirm, use UP and DOWN button to select DMX Address, press ENTER button to confirm, the present address will blink on the display, use UP and DOWN button to adjust the address from 0 to 512, press ENTER button to store.
  • Page 31 XP-300A Beam 18 Channels mode 1:...
  • Page 32 XP-300A Beam 18 Channels mode 2:...
  • Page 33 XP-300A Beam...
  • Page 34 XP-300A Beam 25 Channels mode:...
  • Page 35 XP-300A Beam...

  • Page 36: Update Software

    XP-300A Beam 8. Update Software Download update file from our web site, follow the user manual of IU-01 to update the fixture via IU-01(not included). 9. Troubleshooting Following are a few common problems that may occur during operation. Here are some suggestions for easy troubleshooting: A.

  • Page 37: Maintenance And Cleaning

    XP-300A Beam E. If The pan belt is broken 1. Turn off the mains power. 2. Loosen the screws (A)，open the cover (). 3. Loosen the screws (C). 4. Unplug all the connect wires over the belt. 5. Change a new belt (D), put the belt around the axis gear and motor gear.
  • Page 38 XP-300A Beam Negligence of maintenance would cause malfunction of the fixture. Cleaning: The cleaning of internal and external optical lenses and/or mirrors must be carried out periodically to optimize light output. Cleaning frequency depends on the environment in which the fixture operates: damp, smoky or particularly dirty surrounding can cause greater accumulation of dirt on the unit’s optics.
  • Page 39 EC Declaration of Conformity We declare that our products (lighting equipments) comply with the following specification and bears CE mark in accordance with the provision of the Electromagnetic Compatibility (EMC) Directive 89/336/EEC. EN55103-1:1996; EN55103-2:1996; EN61000-3-2:2006 EN61000-3-3:1995+A1:2001+A2:2005. & Harmonized Standard EN 60598-2-17: 1989 +A2: 1991 IEC 60598-1: 2008 Part 1:General requirements and test Following the provisions of the low voltage directive 73/23/EEC and...
  • Page 40 Innovation, Quality, Performance...
