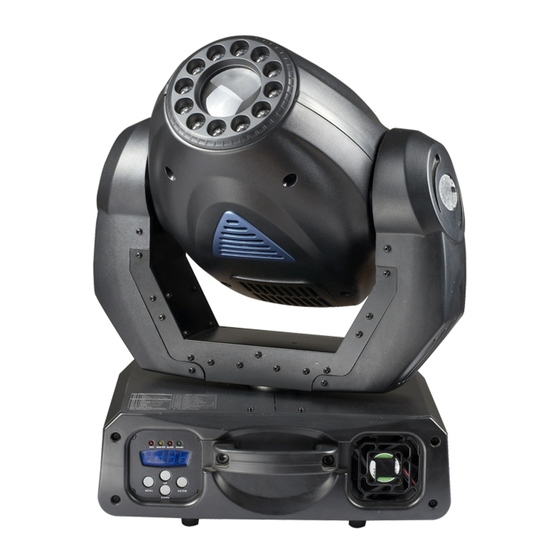

iSolution IM-250SW User Manual
  1. Manuals
  2. Brands
  3. iSolution Manuals
  4. Lighting Equipment
  5. IM-250SW
  6. User manual

iSolution IM-250SW User Manual

Hide thumbs

Advertisement

Quick Links

IM-250SW
User Guide
Please read these instructions carefully before use
Innovation , Quality , Performance

Advertisement

loading
Need help?

Need help?

Do you have a question about the IM-250SW and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for iSolution IM-250SW

Summary of Contents for iSolution IM-250SW

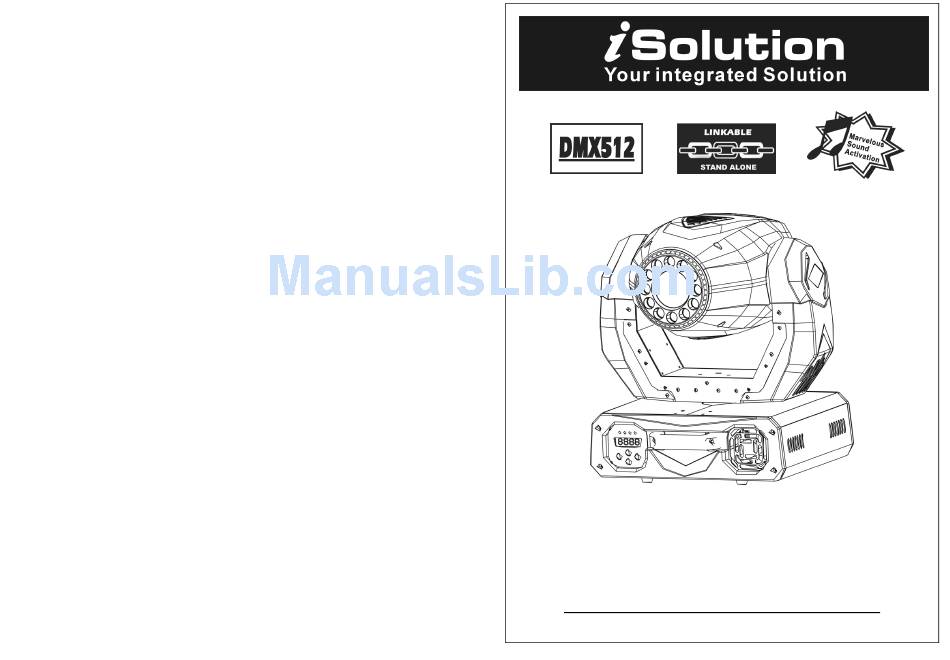

  • Page 1 IM-250SW User Guide Please read these instructions carefully before use Innovation , Quality , Performance...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS 1. Safety Instruction 2. Technical Specification 3. Lamp 4. How To Set The Unit 4.1 Control Panel 4.2 Main Function 4.3 Home Position Adjustment 5. How To Control The Unit 5.1 Master/Slave Built-In Preprogrammed Function 5.2 Easy Controller 5.3 DMX Controller 5.4 DMX 512 Configuration 5.5 DMX 512 Connection...

  • Page 4: Safety Instruction

    1. Safety Instruction Please read carefully the instruction, which includes important information about the installation, usage and maintenance. WARNING Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction booklet. Unpack and check carefully there is no transportation damage before using the unit.
  • Page 5 7. Maintenance and Cleaning Warning To prevent or reduce the risk of electrical shock or fire, do not expose the unit to rain or moisture. Maintenance: Never touch bulb with bare fingers, as it is very hot after using. Hot lamp explosion hazard. Do not open the unit within five minutes after switching off. Do not start on the unit without bulb enclosure or when housing is damaged.

  • Page 6: Technical Specification

    2. Technical Specification Pay attention to the belt tension when install the belt. Power supply - AC 120V~60Hz or AC 230/240/250V~50/60Hz Please refer to the photos below: Light Source - MSD 250W/ NSD 250/2 W - LED: Total 12pcs, Red: 4pcs, Green: 4pcs, Blue: 4pcs Optical system - High efficiency optical system - High quality optical lens and dichroic colors...
  • Page 7 Luminous intensity: F. If The tilt belt is broken 1. Turn off the main power. 2. Unscrew all the screws (A) and open the right arm cover (B). 3. Unscrew the screws (C), the screws (D) and screws (E) that fix the bridge. 4.

  • Page 8: Lamp

    CAUTION! G. If The pan belt is broken Never unscrew the screws of the rotating gobo as the ball bearing 1. Turn off the main power. will otherwise be opened! 2. Unscrew all the screws (A) and open the base-housing cover (B). 3.

  • Page 9: How To Set The Unit

    6. Troubleshooting 4. How To Set The Unit Following are a few common problems that may occur during operation. Here are 4.1. Control Panel some suggestions for easy troubleshooting: A. The unit does not work, no light and the fan does not work Check the connect power and main fuse.

  • Page 10: Main Function

    4.2. Main Function 5.5. DMX512 Connection To select any of the pre-set functions, press the MENU button up to when the required one The DMX512 is widely used in intelligent lighting control, with a maximum of 512 is shown on the display. Select the function by ENTER button and the display will blink. Use channels.
  • Page 11 Show Mode Press the MENU button up to when the is showing on the display. Pressing ENTER button and the display will blink. Use DOWN and UP button to select the (show 1) or (show 2) or (show 3) or (show 4) mode.
  • Page 12 Once the address has been selected, press and keep ENTER button pressed up to when button and the display will blink. Use DOWN and UP button to select the (normal) the display stops blinking or storing automatically 8 seconds later. To go back to the (pan inversion) mode.
  • Page 13 5.1. Master/Slave Built-In Preprogrammed Function Display normal mode for the fixture putting on the floor. Once you control the unit by Built-In program, be sure the unit is setting on mode Display inversion mode for the fixture fixing under ceiling. via menu.

  • Page 14: Home Position Adjustment

    seconds and then automatically exit menu mode. up to when the is shown on the display. Pressing ENTER button and the display DMX RESET : will blink. Use DOWN and UP button to adjust the tilt home position. Once the position has Set DMX value of channel 8 and channel 16 to 255, then all channels of the unit will return to been selected, press the ENTER button to setup or automatically return to the offset their standard home position.
