iSolution IR-7S User Manual

Hide thumbs

Advertisement

Table of Contents

Enlarged version

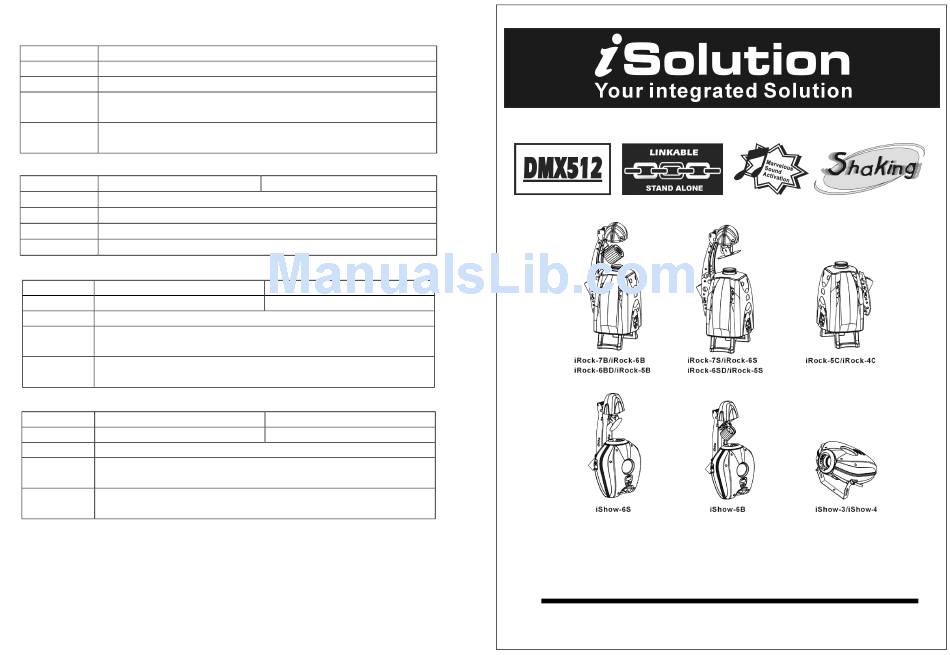

Technical Specifications
IR-7S/IR-7B/IR-5C
Power
AC 120V~60Hz or AC 230/240/250V~50/60Hz
Fuse
20mm Glass 10A Fast Blow
Lamp
MSD 250/2 GY9.5
695 x 340 x 250 mm (IR-7S/IR-7B)
Dimension
360 x 340 x 250 mm (IR-5C)
15 kg
(IR-7S/IR-7B)
Weight
9.2kg
(IR-5C)
IR-6SD/IR-6BD
Power
AC 120V~60Hz
Fuse
20mm Glass 7A Fast Blow
Lamp
CDM 150W
Dimension
695 x 340 x 250 mm
Weight
10.7 kg
IR-6S/IR-6B/IR-5S/IR-5B/IR-4C
Power
AC 120V~60Hz
Fuse
20mm Glass 6.3A Fast Blow
Lamp
ELC 24V 250W
695 x 340 x 250 mm (IR-6S/6B/5S/5B)
Dimension
360 x 340 x 250 mm (IR-4C)
10.6 kg (IR-6S/IR-6B/IR-5S/IR-5B)
Weight
8 kg (IR-4C)
IS-6S/IS-6B/IS-3/IS-4
Power
AC 120V~60Hz
Fuse
20mm Glass 6.3A Fast Blow
Lamp
ELC 24V 250W
685 x 380 x 200 mm (IS-6S/IS-6B)
Dimension
375 x 380 x 200 mm (IS-4/IS-3)
9.4 kg (IS-6S/IS-6B)
Weight
7.5 kg (IS-4/IS-3)
Широкий ассортимент оборудования ACME
на www.maxlight.ru
Innovation , Quality , Performance
AC 230/240/250V~50/60Hz
AC 230/240/250V~50/60Hz
20mm Glass 5A Fast Blow
AC 230/240/250V~50/60Hz
20mm Glass 5A Fast Blow
User Guide
Professional Entertainment Technology

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IR-7S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for iSolution IR-7S

Summary of Contents for iSolution IR-7S

  • Page 1 Technical Specifications IR-7S/IR-7B/IR-5C Power AC 120V~60Hz or AC 230/240/250V~50/60Hz Fuse 20mm Glass 10A Fast Blow Lamp MSD 250/2 GY9.5 695 x 340 x 250 mm (IR-7S/IR-7B) Dimension 360 x 340 x 250 mm (IR-5C) 15 kg (IR-7S/IR-7B) Weight 9.2kg (IR-5C)

  • Page 2: Table Of Contents

    EN55014-2: 1997 A1:2001, EN61000-4-2: 1995; EN61000-4-3:2002; 5.1 Master/Slave Built-In Preprogrammed Function EN61000-4-4: 1995; EN61000-4-5: 1995, EN61000-4-6:1996, 5.2 Easy Controller EN61000-4-11: 1994. 5.3 iSolution Operation / Universal DMX Controller & 5.4 Universal DMX Controller Harmonized Standard 5.5 DMX512 Configuration 5.6 DMX512 Connection...

  • Page 3: Safety Instruction

    6. Troubleshooting 1. Safety Instruction Please read carefully the instruction, which includes important Following are a few common problems that may occur during operation. Here are some information about installation, operation and maintenance. suggestions for easy troubleshooting: WARNING A. The unit does not work, no light and the fan does not work ¤...
  • Page 4 5.5 DMX512 Connection The DMX512 is widely used in intelligent lighting control, with a maximum of 512 channels. Warning ¤ To prevent or reduce the risk of electrical shock or fire, do not expose the unit to rain or moisture. ¤...

  • Page 5: Technical Specification

    • Pan : 180 deg. Tilt : 70 deg. (IR-7S/IR-7B/IR-6SD/IR-6BD/IR-6S/IR-6B/IR-5S/IR-5B/ IS-6S/IS-6B) • IR-7S/IR-7B Independent gobo wheel with 7 rotating, replaceable gobos plus open, including 4 metal, 2 glass and 1 effect gobos with shaking effect, Independent color wheel with 9 dichroic colors with rainbow effect, and independent shutter & dimmer.

  • Page 6: Inserting/Exchanging Rotating Gobos

    2.1 Inserting/Exchanging rotating gobos IS-6S/IS-6B/IS-4 ( IS-4 is a 4 channel gobo rotator ) ( For IR-7S/IR-7B/ IR-5C only ! ) DANGER! Install the gobos with the device switched off only. Unplug from mains before! Open the cover by loosening the fastening screw at the sides of the cover.

  • Page 7: Beam Angle

    IR-6SD/IR-6BD/IR-6S/IR-6B/IR-5S/IR-5BIR-4C ( IR-4C is a 4 channel color changer) 2.2 Beam Angel...

  • Page 8: Lamp

    3. Lamp IR-7S/7B/5C ( IR-5C is a 5 channel color changer ) In case of replacement of the lamp or maintenance, do not open the fixture within 15 minutes until the unit cools down after switching off. MSD 250/2 GY 9.5 (IR-7S/7B/IR-5C)

  • Page 9: How To Set The Unit

    65. 4 DMX512 Configuration 4. How To Set The Unit 4.1 Control Panel Model Shutter Gobo IR-7S Tilt Gobo Color Dimmer /Shaking Rotation Barrel Shutter Gobo IR-7B Gobo Color Dimmer Rotation /Shaking Rotation Shutter IR-6SD/6S Pan Tilt Gobo Color Dimmer...

  • Page 10: Main Function

    4.2 Main Function 5.3.1 iSolution Operation To select any of the given functions, press the MENU button up to when the required one is ¤ Consistent DMX configuration enable iRock and iShow to be linked together and showing on the display. Select the function by ENTER button and the display will blink. Use controlled at the same time.
  • Page 11 Pressing ENTER button and the display will blink. Use DOWN and UP button to select the (yes IR-7S Stand by Blackout the unit blackout) or (no blackout) mode. Once the mode has been selected, press the...

  • Page 12: How To Control The Unit

    Fixture Hours Dimmer Inversion Press the MENU button up to when the is blinking on the display. Pressing ENTER Press the MENU button up to when the is shown on the display. Pressing button and the display will show the number of working hours of the unit. To go back to the ENTER button and the display will blink.

This manual is also suitable for:

Ir-7bIr-5cIrock-7bIrock-6bIrock-6bdIrock-5b ... Show all
