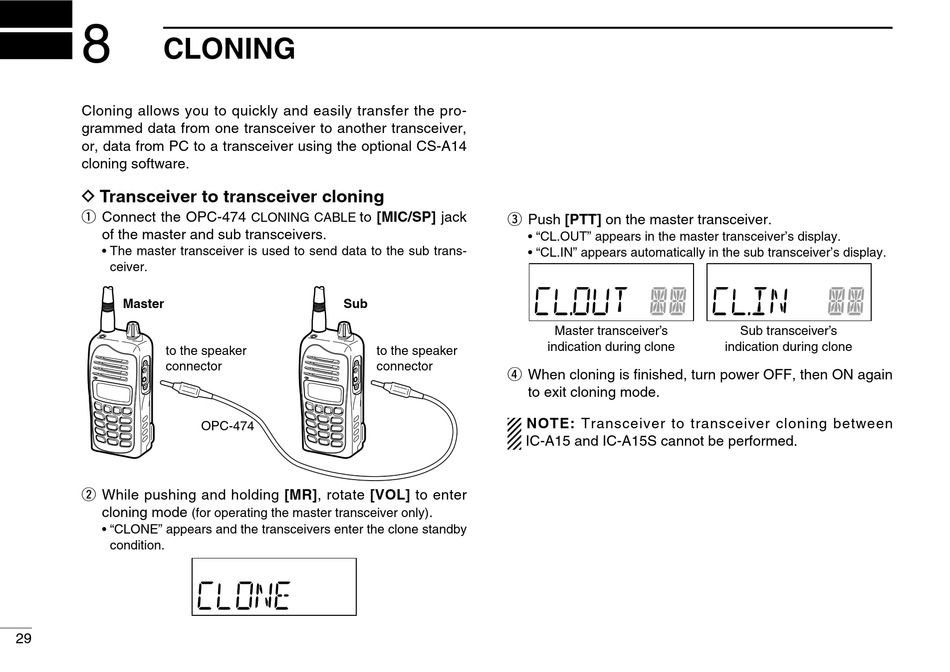

CLONING

Cloning allows you to quickly and easily transfer the pro-
grammed data from one transceiver to another transceiver,
or, data from PC to a transceiver using the optional CS-A14
cloning software.
D Transceiver to transceiver cloning
q Connect the OPC-474
of the master and sub transceivers.
• The master transceiver is used to send data to the sub trans-
ceiver.
Master
to the speaker
connector
w While pushing and holding [MR], rotate [VOL] to enter
cloning mode
(for operating the master transceiver only)
• "CLONE" appears and the transceivers enter the clone standby
condition.
29
to [MIC/SP] jack
CLONING CABLE
Sub
to the speaker
connector
OPC-474
e Push [PTT] on the master transceiver.
• "CL.OUT" appears in the master transceiver's display.
• "CL.IN" appears automatically in the sub transceiver's display.
Master transceiver's
indication during clone
r When cloning is finished, turn power OFF, then ON again
to exit cloning mode.
NOTE: Transceiver to transceiver cloning between
IC-A15 and IC-A15S cannot be performed.
.
Sub transceiver's
indication during clone
