Optional Headset Connection - Icom IC-A15S Instruction Manual

D OPC-499 (
HEADSET ADAPTER)
When using a headset (3rd party products) via the OPC-499
to the headset for monitoring. See "n Side tone function" (p. 11) when setting the side tone level.
PTT

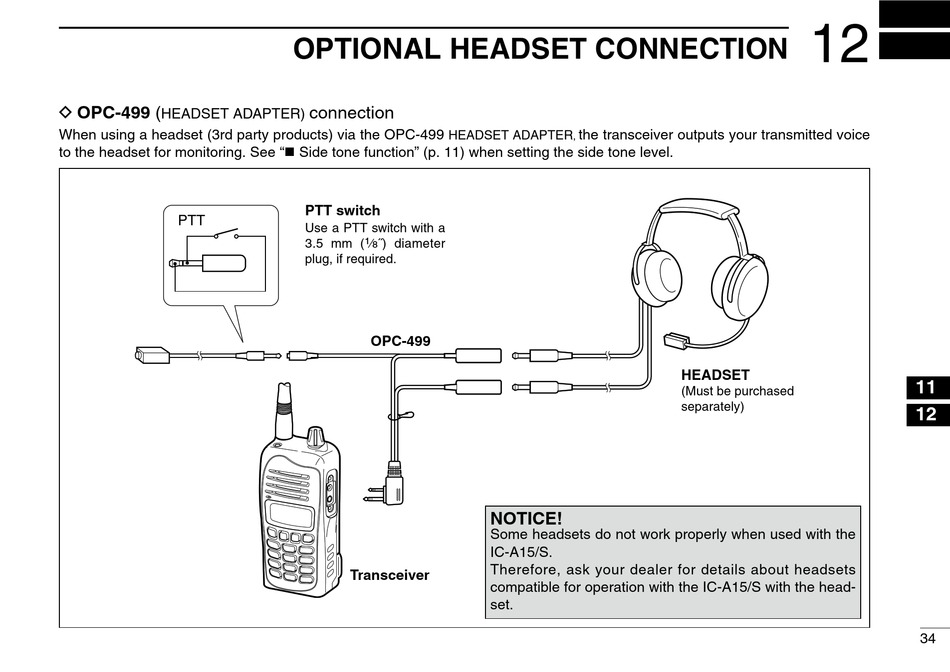

OPTIONAL HEADSET CONNECTION

connection
HEADSET ADAPTER
PTT switch
Use a PTT switch with a
1
3.5 mm ( ⁄ ˝) diameter
8
plug, if required.
OPC-499
Transceiver
the transceiver outputs your transmitted voice
,
NOTICE!
Some headsets do not work properly when used with the
IC-A15/S.
Therefore, ask your dealer for details about headsets
compatible for operation with the IC-A15/S with the head-
set.
