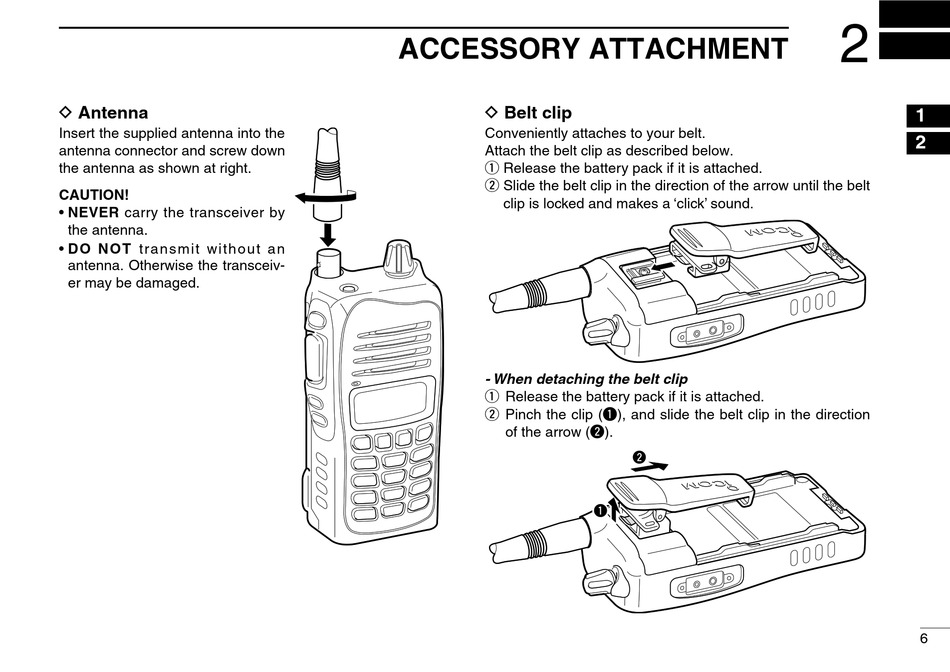

D Antenna
Insert the supplied antenna into the
antenna connector and screw down
the antenna as shown at right.
CAUTION!
• NEVER carry the transceiver by
the antenna.
• DO NOT transmit without an
antenna. Otherwise the transceiv-
er may be damaged.

ACCESSORY ATTACHMENT

D Belt clip
Conveniently attaches to your belt.
Attach the belt clip as described below.
q Release the battery pack if it is attached.
w Slide the belt clip in the direction of the arrow until the belt
clip is locked and makes a 'click' sound.
- When detaching the belt clip
q Release the battery pack if it is attached.
w Pinch the clip (q), and slide the belt clip in the direction
of the arrow (w).
