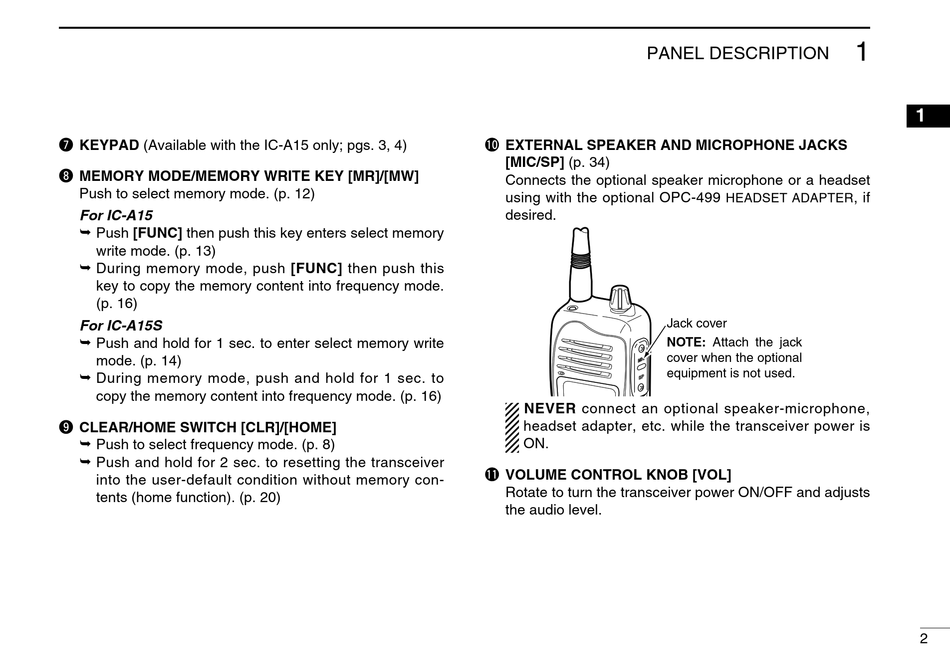

u KEYPAD (Available with the IC-A15 only; pgs. 3, 4)
i MEMORY MODE/MEMORY WRITE KEY [MR]/[MW]
Push to select memory mode. (p. 12)
For IC-A15
Push [FUNC] then push this key enters select memory
write mode. (p. 13)
During memory mode, push [FUNC] then push this
key to copy the memory content into frequency mode.
(p. 16)
For IC-A15S
Push and hold for 1 sec. to enter select memory write
mode. (p. 14)
During memory mode, push and hold for 1 sec. to
copy the memory content into frequency mode. (p. 16)
o CLEAR/HOME SWITCH [CLR]/[HOME]
Push to select frequency mode. (p. 8)
Push and hold for 2 sec. to resetting the transceiver
into the user-default condition without memory con-
tents (home function). (p. 20)
PANEL DESCRIPTION
!0 EXTERNAL SPEAKER AND MICROPHONE JACKS
[MIC/SP] (p. 34)
Connects the optional speaker microphone or a headset
using with the optional OPC-499
desired.
NEVER connect an optional speaker-microphone,
headset adapter, etc. while the transceiver power is
ON.
!1 VOLUME CONTROL KNOB [VOL]
Rotate to turn the transceiver power ON/OFF and adjusts
the audio level.
HEADSET ADAPTER
Jack cover
NOTE: Attach the jack
cover when the optional
equipment is not used.
