2
PANEL DESCRIPTION

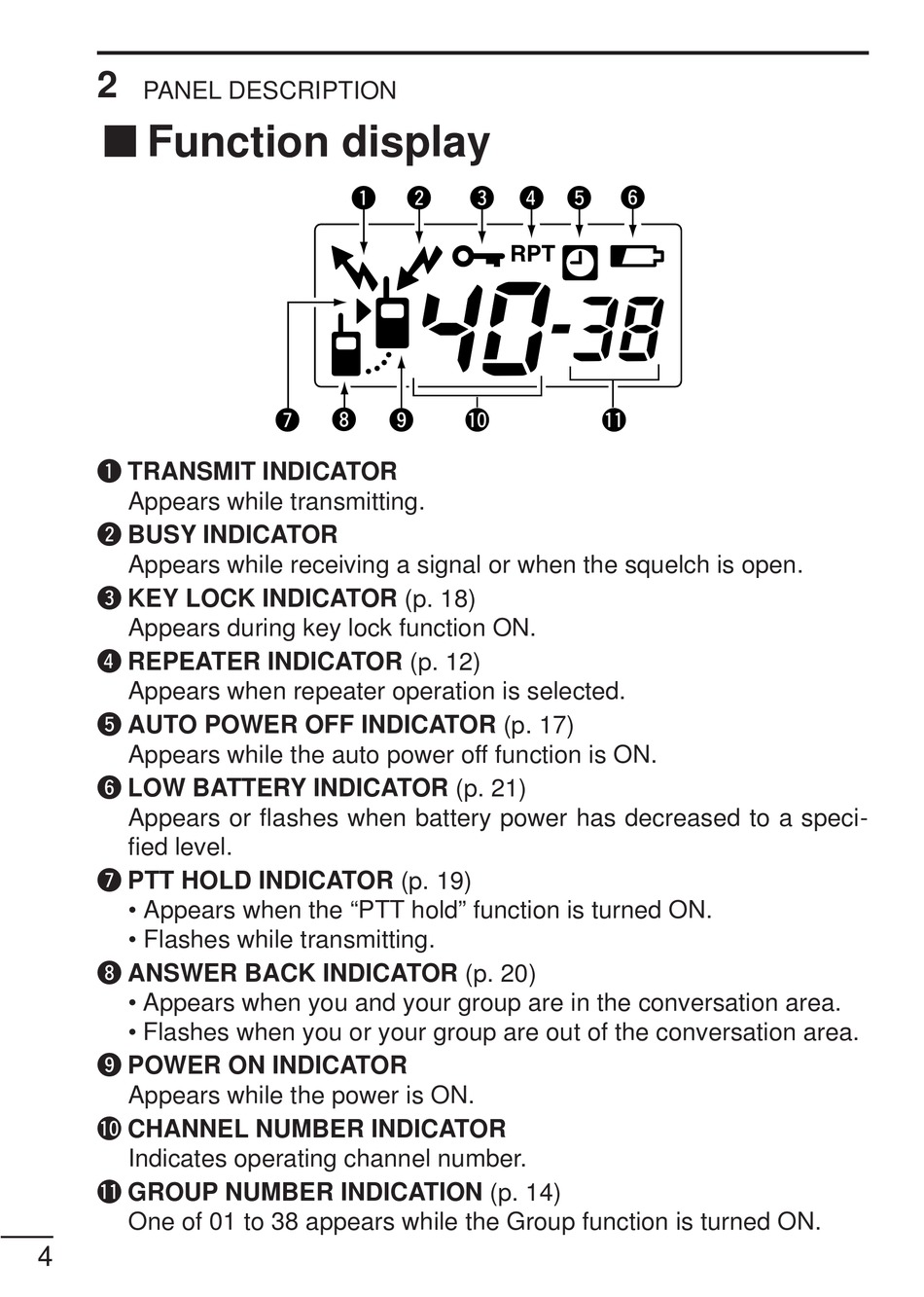

' ' Function display
q TRANSMIT INDICATOR
Appears while transmitting.
w BUSY INDICATOR
Appears while receiving a signal or when the squelch is open.
e KEY LOCK INDICATOR (p. 18)
Appears during key lock function ON.
r REPEATER INDICATOR (p. 12)
Appears when repeater operation is selected.
t AUTO POWER OFF INDICATOR (p. 17)
Appears while the auto power off function is ON.
y LOW BATTERY INDICATOR (p. 21)
Appears or flashes when battery power has decreased to a speci-
fied level.
u PTT HOLD INDICATOR (p. 19)
• Appears when the "PTT hold" function is turned ON.
• Flashes while transmitting.
i ANSWER BACK INDICATOR (p. 20)
• Appears when you and your group are in the conversation area.
• Flashes when you or your group are out of the conversation area.
o POWER ON INDICATOR
Appears while the power is ON.
!0 CHANNEL NUMBER INDICATOR
Indicates operating channel number.
!1 GROUP NUMBER INDICATION (p. 14)
One of 01 to 38 appears while the Group function is turned ON.
4
q
w
i
u
o
e r t
y
!0
!1
