Function Display - Icom IC-F6022 Instruction Manual

1
PANEL DESCRIPTION

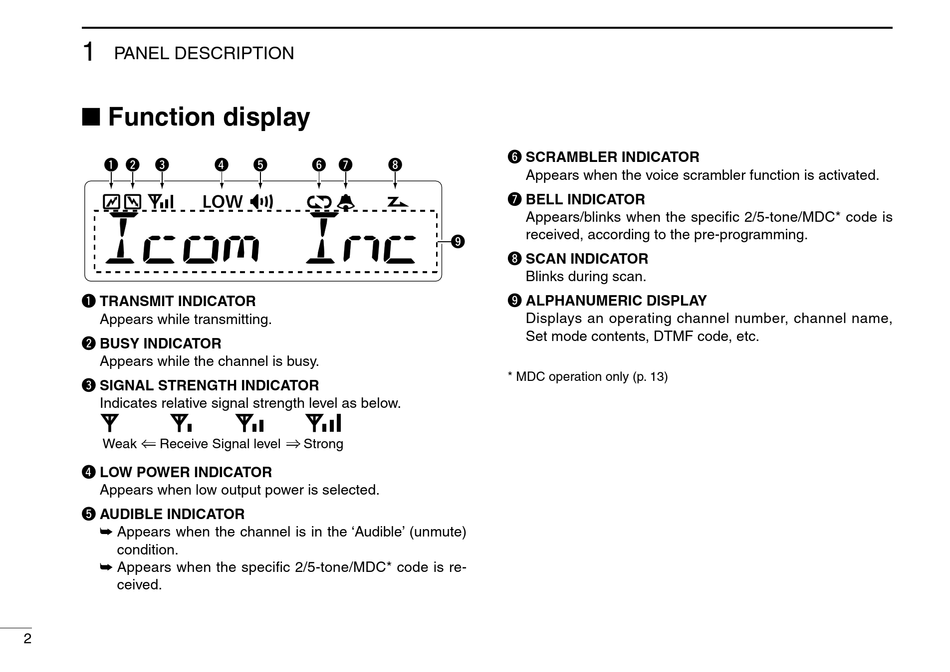

■ Function display

q w e
q TRANSMIT INDICATOR
Appears whle transmttng.
w BUSY INDICATOR
Appears whle the channel s busy.
e SIGNAL STRENGTH INDICATOR
Indcates relatve sgnal strength level as below.
Weak Receive Signal level
r LOW .OWER INDICATOR
Appears when low output power s selected.
t AUDIBLE INDICATOR
➥ Appears when the channel s n the 'Audble' (unmute)
condton.
➥ Appears when the specfic 2/5-tone/MDC* code s re-
ceved.
2
r t y u i
Strong
y SCRAMBLER INDICATOR
Appears when the voce scrambler functon s actvated.
u BELL INDICATOR
Appears/blnks when the specfic 2/5-tone/MDC* code s
receved, accordng to the pre-programmng.
o
i SCAN INDICATOR
Blnks durng scan.
o AL.HANUMERIC DIS.LAY
Dsplays an operatng channel number, channel name,
Set mode contents, DTMF code, etc.
* MDC operaton only (p. 13)
