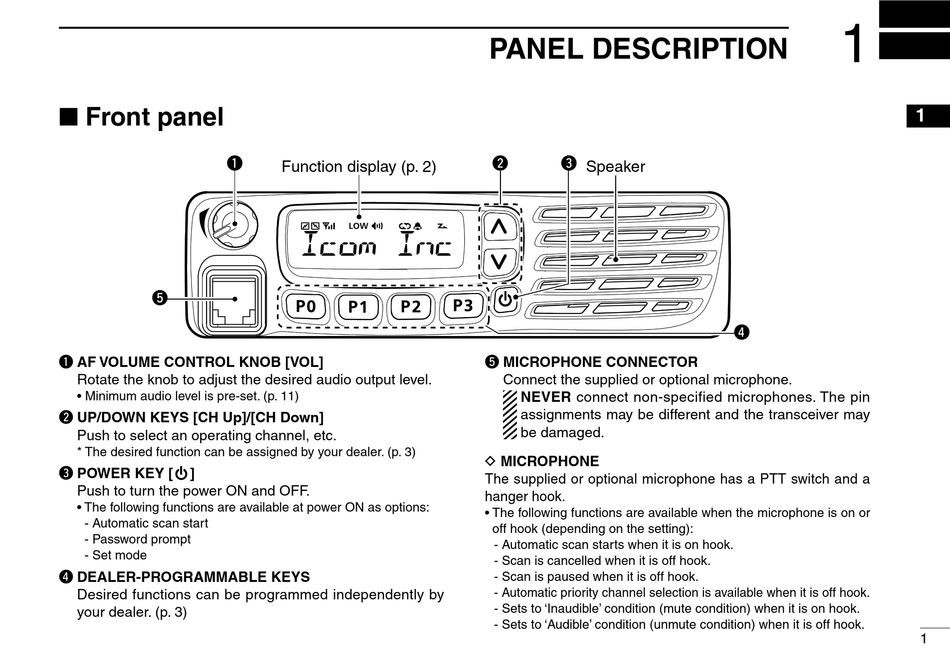

■ Front panel

q
t
q AF VOLUME CONTROL KNOB [VOL]
Rotate the knob to adjust the desred audo output level.
• Mnmum audo level s pre-set. (p. 11)
w U./DOWN KEYS [CH Up]/[CH Down]
Push to select an operatng channel, etc.
* The desred functon can be assgned by your dealer. (p. 3)
e .OWER KEY [ ]
Push to turn the power ON and OFF.
• The followng functons are avalable at power ON as optons:
- Automatc scan start
- Password prompt
- Set mode
r DEALER-.ROGRAMMABLE KEYS
Desred functons can be programmed ndependently by
your dealer. (p. 3)
Function display (p. 2)
.ANEL DESCRI.TION
w e
Speaker
t MICRO.HONE CONNECTOR
Connect the suppled or optonal mcrophone.
NEVER connect non-specfed mcrophones. The pn
assgnments may be dfferent and the transcever may
be damaged.
D MICRO.HONE
The suppled or optonal mcrophone has a PTT swtch and a
hanger hook.
• The followng functons are avalable when the mcrophone s on or
off hook (dependng on the settng):
- Automatc scan starts when t s on hook.
- Scan s cancelled when t s off hook.
- Scan s paused when t s off hook.
- Automatc prorty channel selecton s avalable when t s off hook.
- Sets to 'Inaudble' condton (mute condton) when t s on hook.
- Sets to 'Audble' condton (unmute condton) when t s off hook.
