■ Supplied Accessories

Microphone
Microphone hanger
and screw set
DC power cable Function name
stickers*
Flat washers Nuts
Spring washers Bracket bolts
* Used for labelling the programmable function
keys according to their assinged functions.

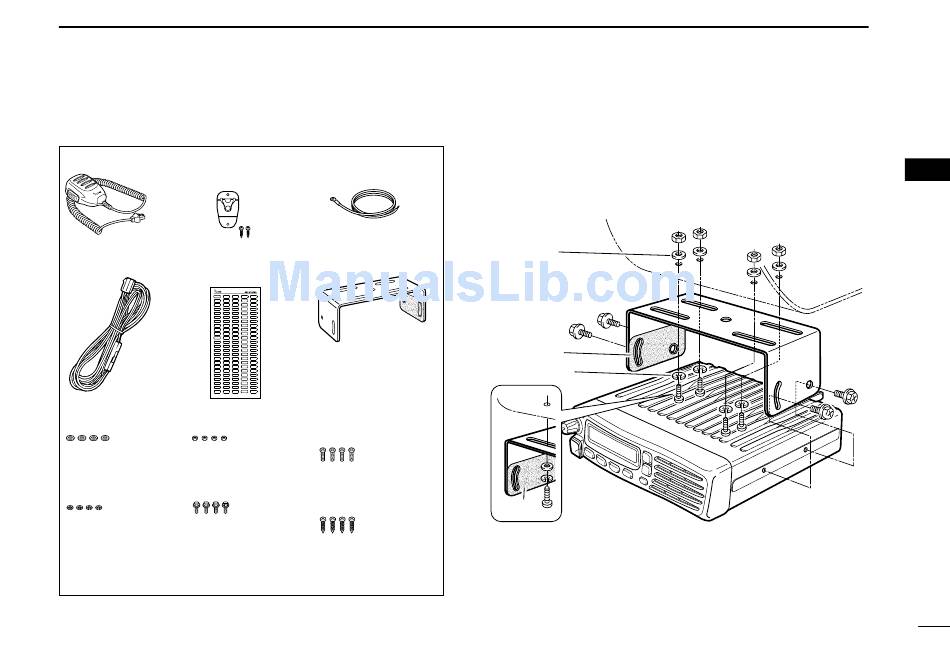

■ Mounting the transceiver

The unversal mountng bracket suppled wth your trans-
Microphone
cever allows overhead mountng.
hanger cable
• Mount the transcever securely wth the 4 suppled screws
to a thck surface whch can support more than 1.5 kg.
Flat washer
Mounting bracket
Spring washer
Mounting screws
(M5×12)
Self-tapping screws
(M5×20)
When using
self-tapping screws
CONNECTION AND MAINTENANCE
Felt*
Felt*
*Felts reduce the vibration effects.
