SmartCommand Thermostat
Installation Manual

Thermostat control screen

The Thermostat control screen (Figure 2) is the default display screen normally displayed on the WDU.

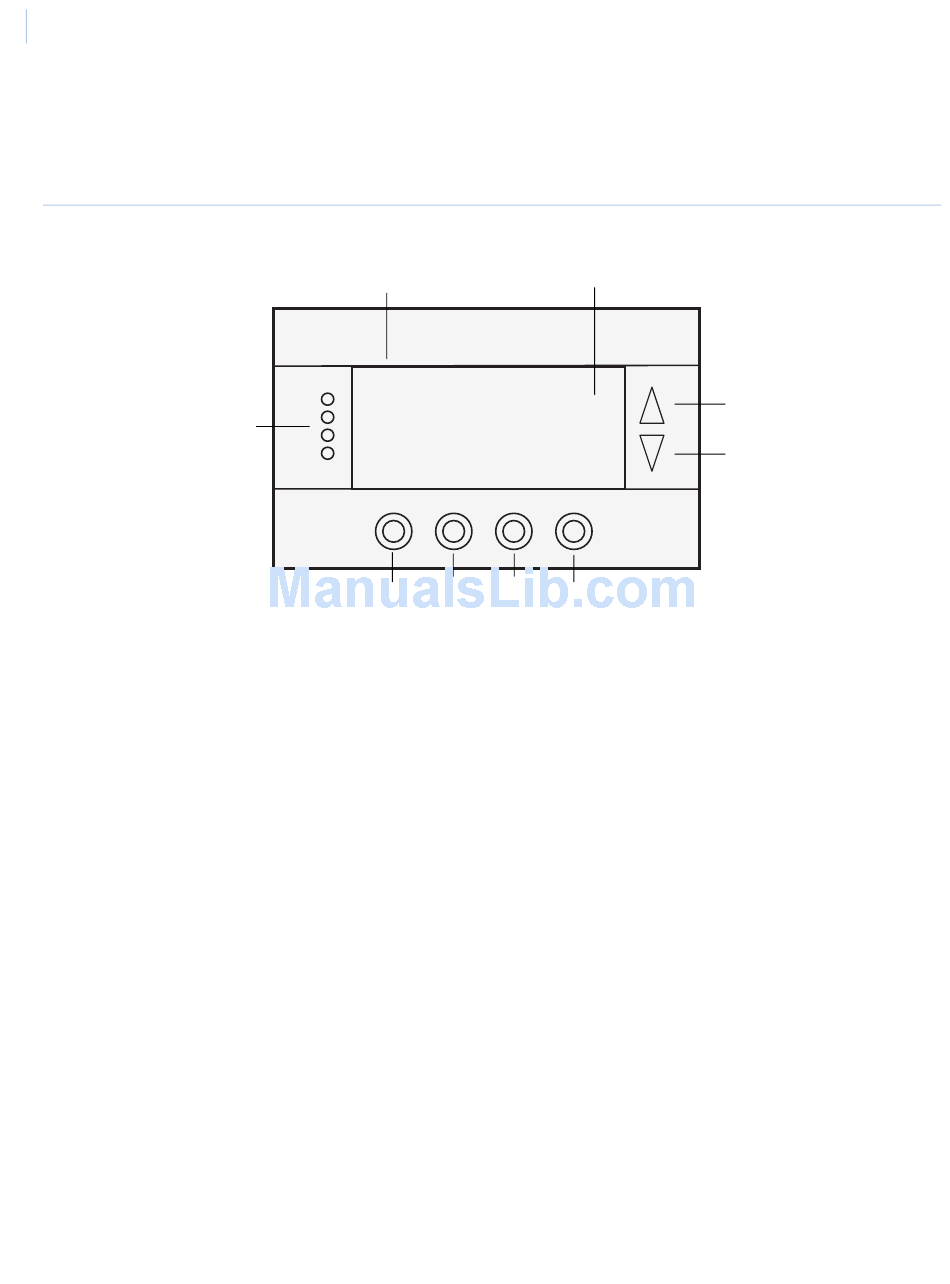

Figure 2. Thermostat control screen

Temperature display

The WDU will normally display the current temperature from the internal digital temperature sensor or a
remote sensor. The sensors have an accuracy of ± 1°F (± 0.5°C). The WDU will display temperatures from -40
to 190°F (-40 to 88°C). If averaging remote sensors are attached, the display will show the average temperature
of all attached averaging sensors.

Setpoint display

The heating and cooling setpoints are displayed next to the Up and Down buttons. In heat mode, the Up and
Down buttons change the heat setpoint. In cool mode, they change the cooling setpoint. When in auto mode,
the buttons change the last call's heating or cooling setpoint. The setpoints will push each other if they are
adjusted to within the minimum heat/cool separation (delta T) setting. This setting is default set to 4 degrees,
but can be changed in the installer settings.

Clock display

The current time is displayed in the upper left corner of the main screen. Set the clock from the
screen
on page 12.
Clock
display
10:25 AM
Sys Off
LED
Econ
Display
Run
No Msg
Menu
Outside 60
75
MENU
MODE
FAN
RUN
Mode
Fan
Run/Hold
Setpoint
Display
Up
76 H
74 C
Down
