Main menu screen

The thermostat has a menu tree that can be accessed by pressing the Menu button on the main Thermostat
control screen. Various configurations of the unit can have different screen contents. The first screen that will
display is the Main menu screen (Figure 3). This is a list of the other menus or functions that you can access.
Standard screens are listed in this manual, your screen may vary with different configurations or revisions.

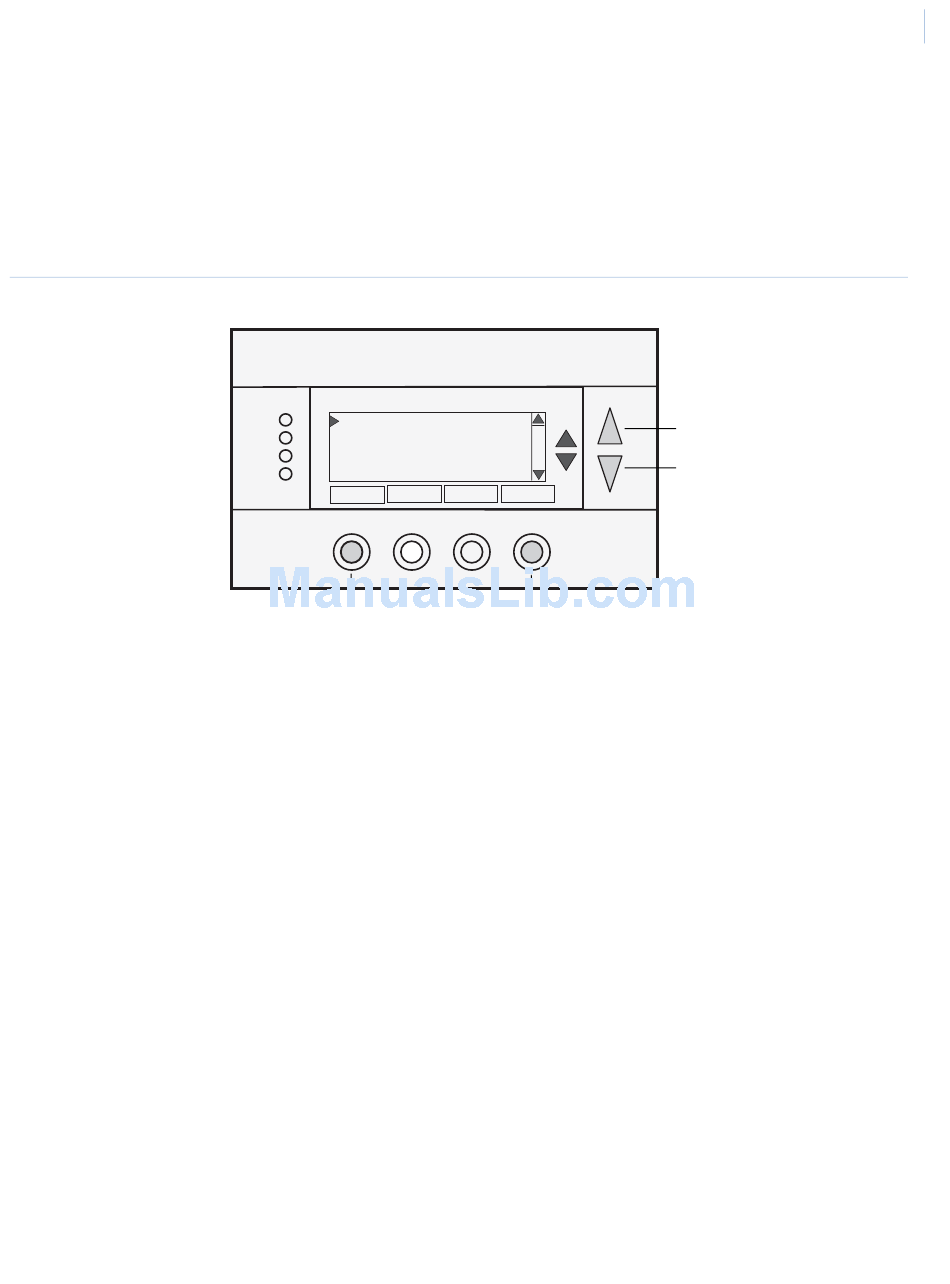

Figure 3. Main menu screen
Screen options include:
Messages. Access the
80 characters to be sent to the thermostat. Messages received display when the message screen is selected.
The Messages menu item may or may not be displayed. It can be enabled or disabled from the installer
settings.
Schedules. Access the
thermostat.
User settings. Access the
sensor calibration, and backlight/display settings.
Thermostat information. Access the
firmware versions of the WDU and control unit, the HVAC system type and equipment options, and the
network address of the thermostat.
Screen navigation buttons include:
Done. Return to
Thermostat control screen
Select. Select menu item at pointer.
Up. Move selection pointer up.
Down. Move selection pointer down.
Menu Selection
Messages
Schedules
User Settings
Thermostat Info
Done
Done
Messages screen
on page 8. A text messaging subsystem allows messages of up to
Schedule setup screen
User settings screen
Thermostat information screen
on page 4.
Select
Select
on page 9 to set the programmable setback schedules of the
on page 12 to set the clock, screen timeout, F/C mode,
Up
Down
on page 16 that displays the
7
