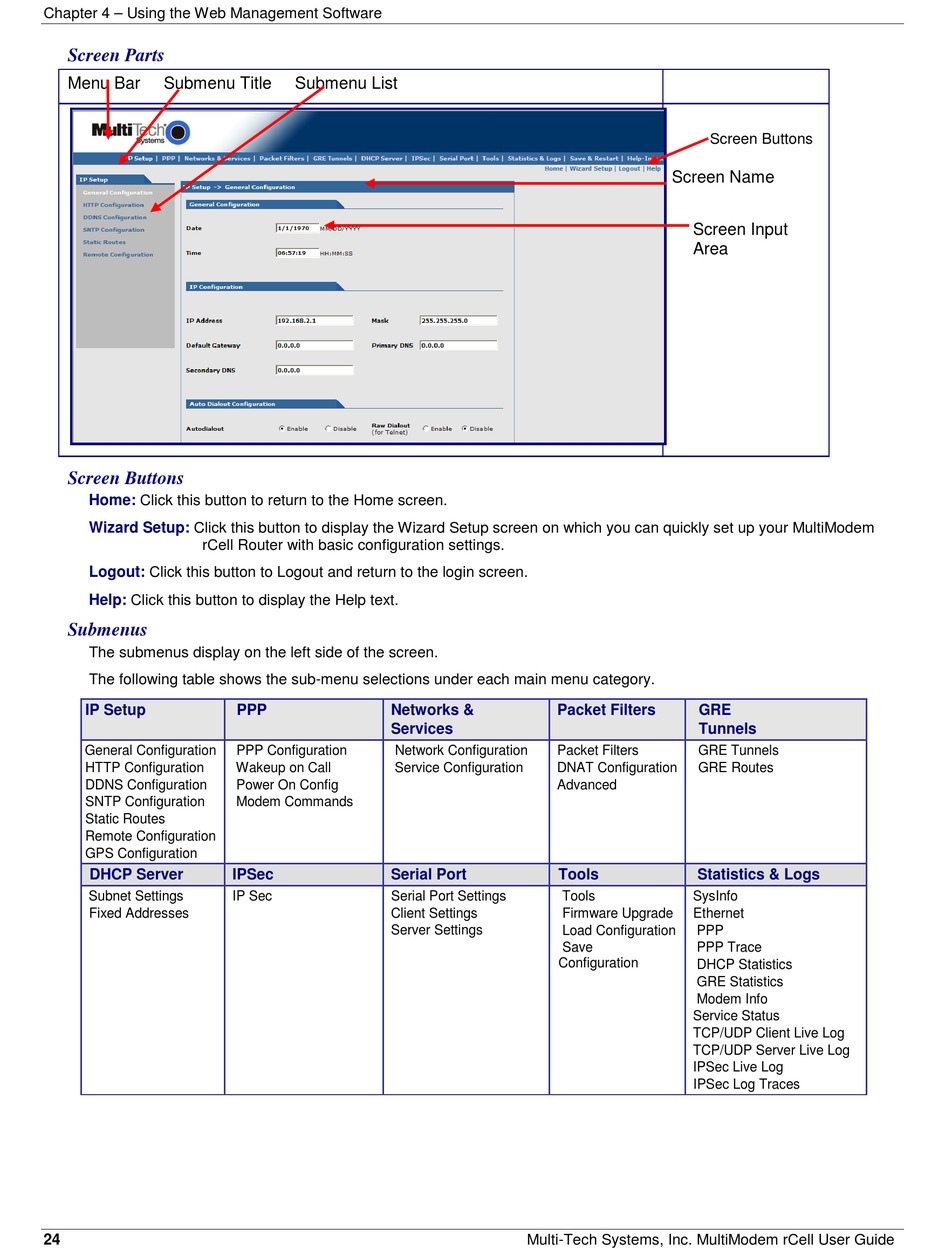

Multitech MultiModem rCell User Manual page 24

Chapter 4 – Using the Web Management Software
Screen Parts
Menu Bar Submenu Title
S creen Buttons
1 1 0 B
Home: Click this button to return to the Home screen.
Wizard Setup: Click this button to display the Wizard Setup screen on which you can quickly set up your MultiModem
rCell Router with basic configuration settings.
Logout: Click this button to Logout and return to the login screen.
Help: Click this button to display the Help text.
S ubmenus
1 1 1 B
The submenus display on the left side of the screen.
The following table shows the sub-menu selections under each main menu category.
IP Setup
General Configuration
HTTP Configuration
DDNS Configuration
SNTP Configuration
Static Routes
Remote Configuration
GPS Configuration
DHCP Server
Subnet Settings
Fixed Addresses
24
Submenu List
PPP Networks &
Services
PPP Configuration Network Configuration
Wakeup on Call Service Configuration
Power On Config
Modem Commands
IPSec Serial Port
IP Sec Serial Port Settings
Client Settings
Server Settings
Screen Name
Screen Input
Area
Packet Filters GRE
Tunnels
Packet Filters GRE Tunnels
DNAT Configuration GRE Routes
Advanced
Tools Statistics & Logs
Tools SysInfo
Firmware Upgrade Ethernet
Load Configuration PPP
Save PPP Trace
Configuration
DHCP Statistics
GRE Statistics
Modem Info
Service Status
TCP/UDP Client Live Log
TCP/UDP Server Live Log
IPSec Live Log
IPSec Log Traces
