S erial-Port

3 7 B 3 8

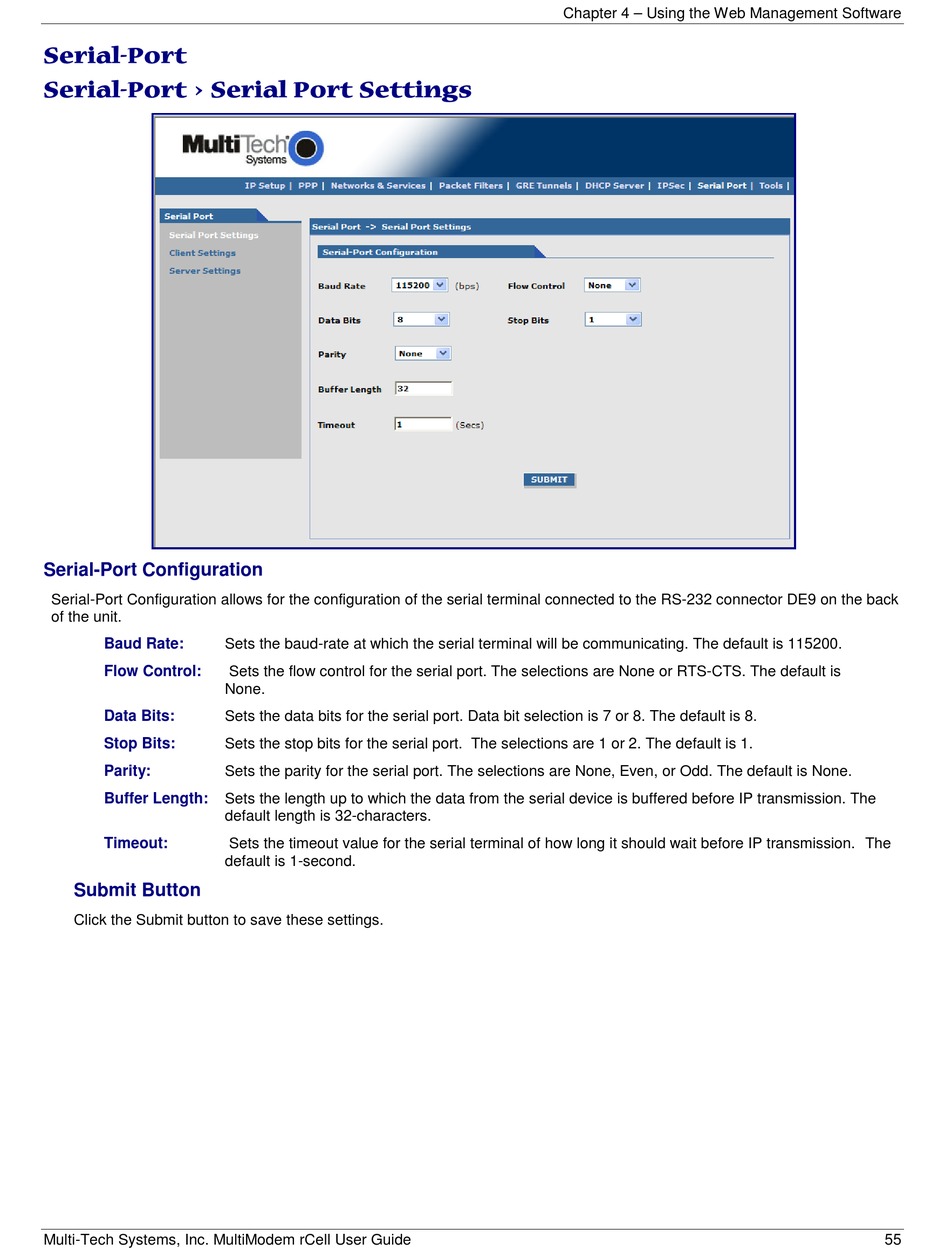

S erial-Port > Serial Port Settings
3 8 B
Serial-Port Configuration
Serial-Port Configuration allows for the configuration of the serial terminal connected to the RS-232 connector DE9 on the back
of the unit.
Baud Rate:
Flow Control:
Data Bits:
Stop Bits:
Parity:
Buffer Length:
Timeout:
S ubmit Button
1 0 5 B 1 1 5 B
Click the Submit button to save these settings.
Multi-Tech Systems, Inc. MultiModem rCell User Guide
Sets the baud-rate at which the serial terminal will be communicating. The default is 115200.
Sets the flow control for the serial port. The selections are None or RTS-CTS. The default is
None.
Sets the data bits for the serial port. Data bit selection is 7 or 8. The default is 8.
Sets the stop bits for the serial port. The selections are 1 or 2. The default is 1.
Sets the parity for the serial port. The selections are None, Even, or Odd. The default is None.
Sets the length up to which the data from the serial device is buffered before IP transmission. The
default length is 32-characters.
Sets the timeout value for the serial terminal of how long it should wait before IP transmission. The
default is 1-second.
Chapter 4 – Using the Web Management Software
