18. Servicing Instructions

To ensure efficient safe operation, it is recommended that the
boiler is serviced annually by a competent person.
Before starting any servicing work, ensure both the gas and
electrical supplies to the boiler are isolated and the boiler is
cool.
Before and after servicing, a combustion analysis should be
made via the flue sampling point (please refer to Section 15.8).
After servicing, preliminary electrical system checks must be
carried out to ensure electrical safety (i.e. polarity, earth
continuity, resistance to earth and short circuit).

18.1 Replacement of Parts

The life of individual components vary and they will need
servicing or replacing as and when faults develop.
The fault finding sequence chart in Section 19 will help to locate
which component is the cause of any malfunction, and
instructions for removal, inspection and replacement of the
individual parts are given in the following pages.

18.2 To Gain General Access

All testing and maintenance operations on the boiler require the
control panel to be lowered. This will also require the removal of
the casing.

18.2.1 Removing the front panel

1. Remove the 4 retaining screws "A" (see Fig. 18.1);
2. Disengage the 2 clips (see Fig. 18.2);
3. Remove the front panel from the rest of the casing (see Fig.
18.3).
4. Reassemble in reverse order.

18.2.2 Removing the control panel

1. Remove the front panel as above;
2. Pull the control panel toward you to disengage it from the
bottom of the chassis (see Fig. 18.4);
3. Clip the top of the control panel onto the bottom of the
chassis. (see Fig. 18.5);
4. Reassemble in reverse order.

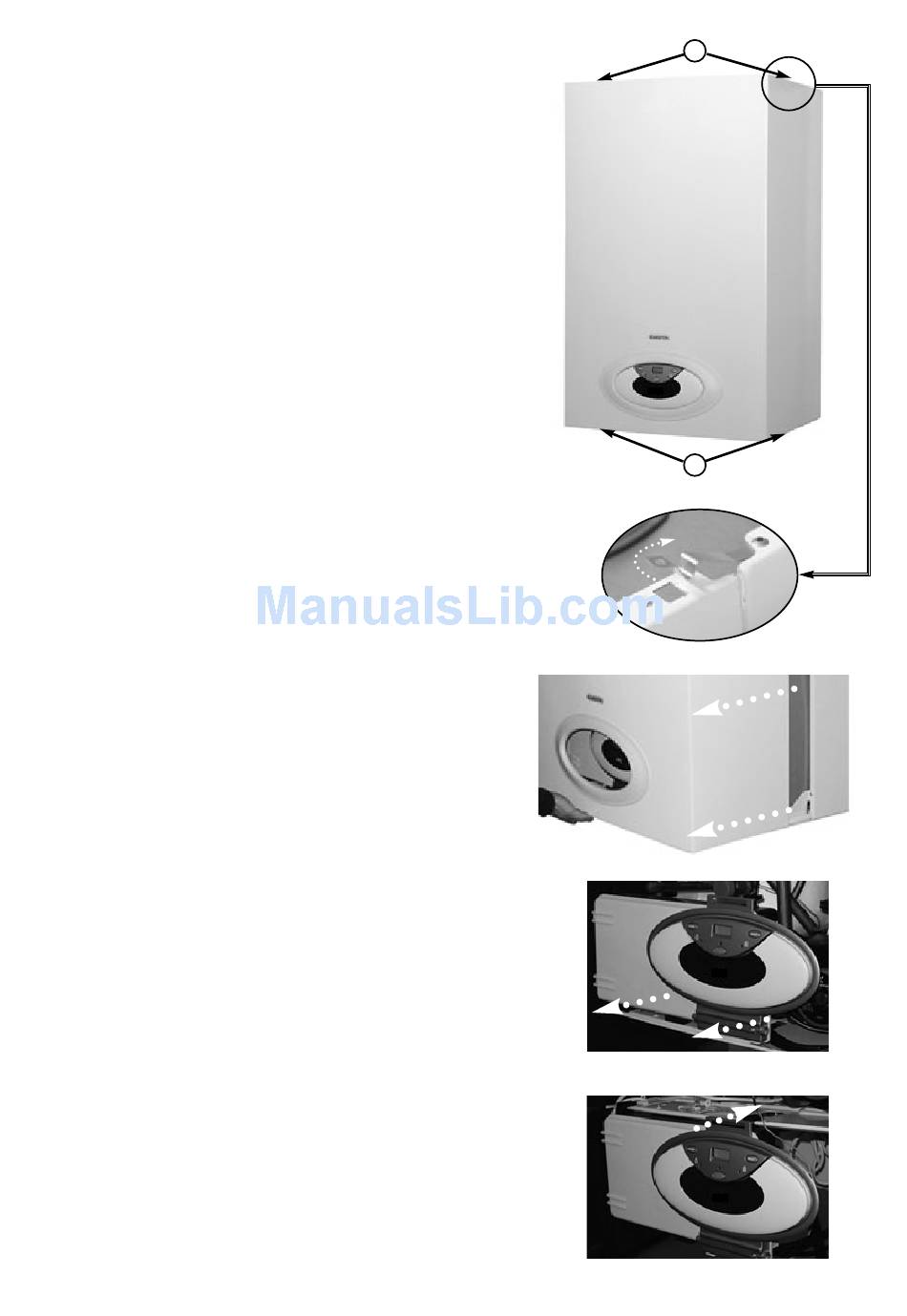

A
Fig. 18.1
A
Fig.18.2
Fig. 18.3
Fig. 18.4
Fig. 18.5
