Clearances - Ariston GENUS HE 35 Plus Installation And Servicing Instrucnion

10.4

Clearances

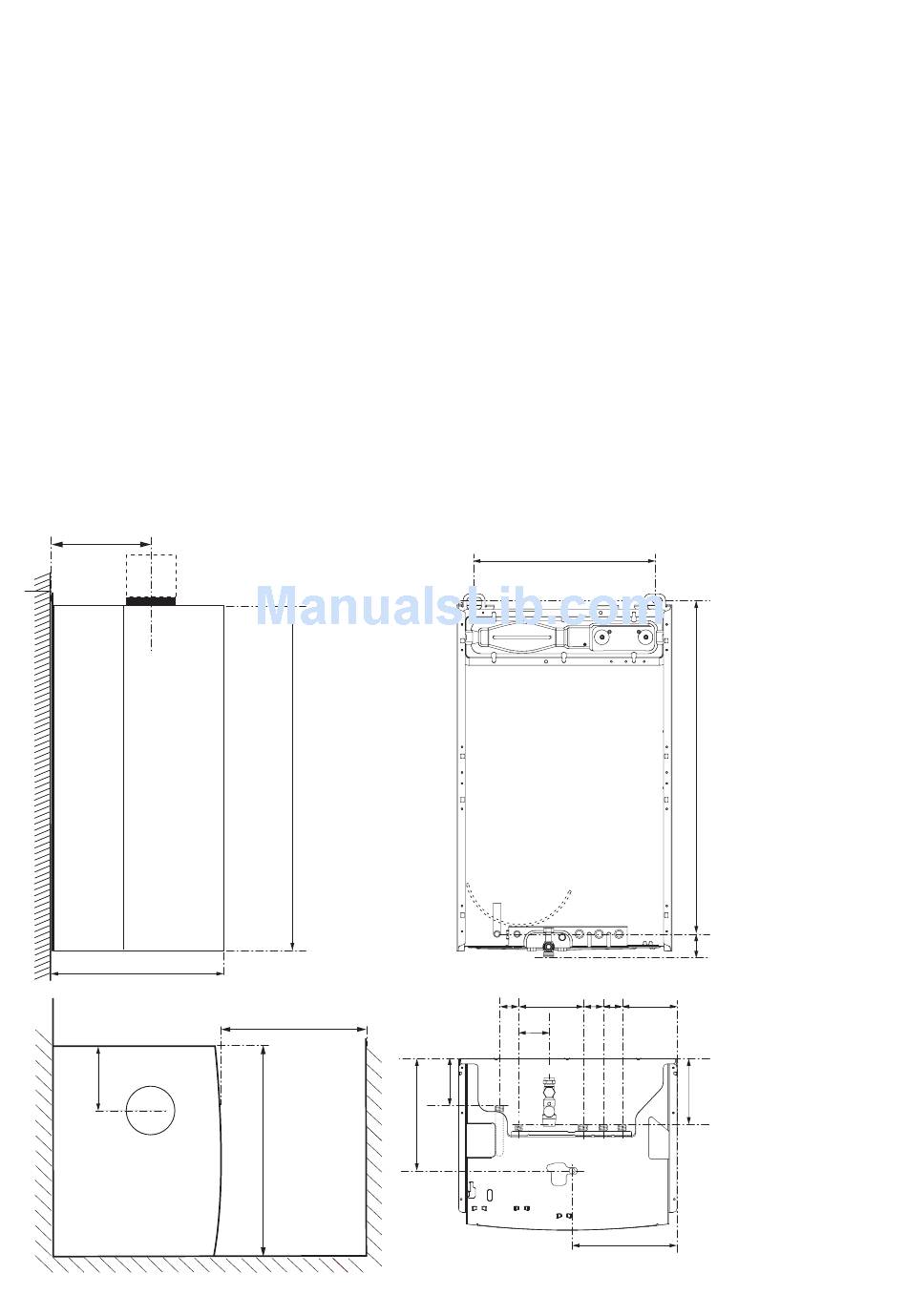

10.5 Overall Dimensions
195
470
180
950
450mm minimum for
servicing purposes
317
595
The type C appliances (in which the combustion circuit,
air vent intake and combustion chamber are air-tight
with respect to the room in which the appliance is
installed) can be installed in any type of room.
Secondary ventilation is not required with this boiler. The
boiler must be installed on a solid, non-combustible,
permanent wall to prevent access from the rear.
In order to allow for access to the interior of the boiler for
maintenance purposes, the boiler must be fitted with a
clearance of 450 mm in front 400 mm below the boiler and
200mm above the boiler, and installed in compliance with the
clearance requirements indicated in Fig. 10.1.
500
54 172 54
80
38
135
43
40
42 41
44
F . 10.1
IG
925
57
54 145
Legend:
39 = Gas service tap
188
40 = Heating return
39
41 = Heating flow
42 = Water service tap
43 = Tank hot water flow
38 = Water tank
discharge valve
44 = Central heating
discharge valve
280
15
