Summary of Contents for GarrettCom Quad

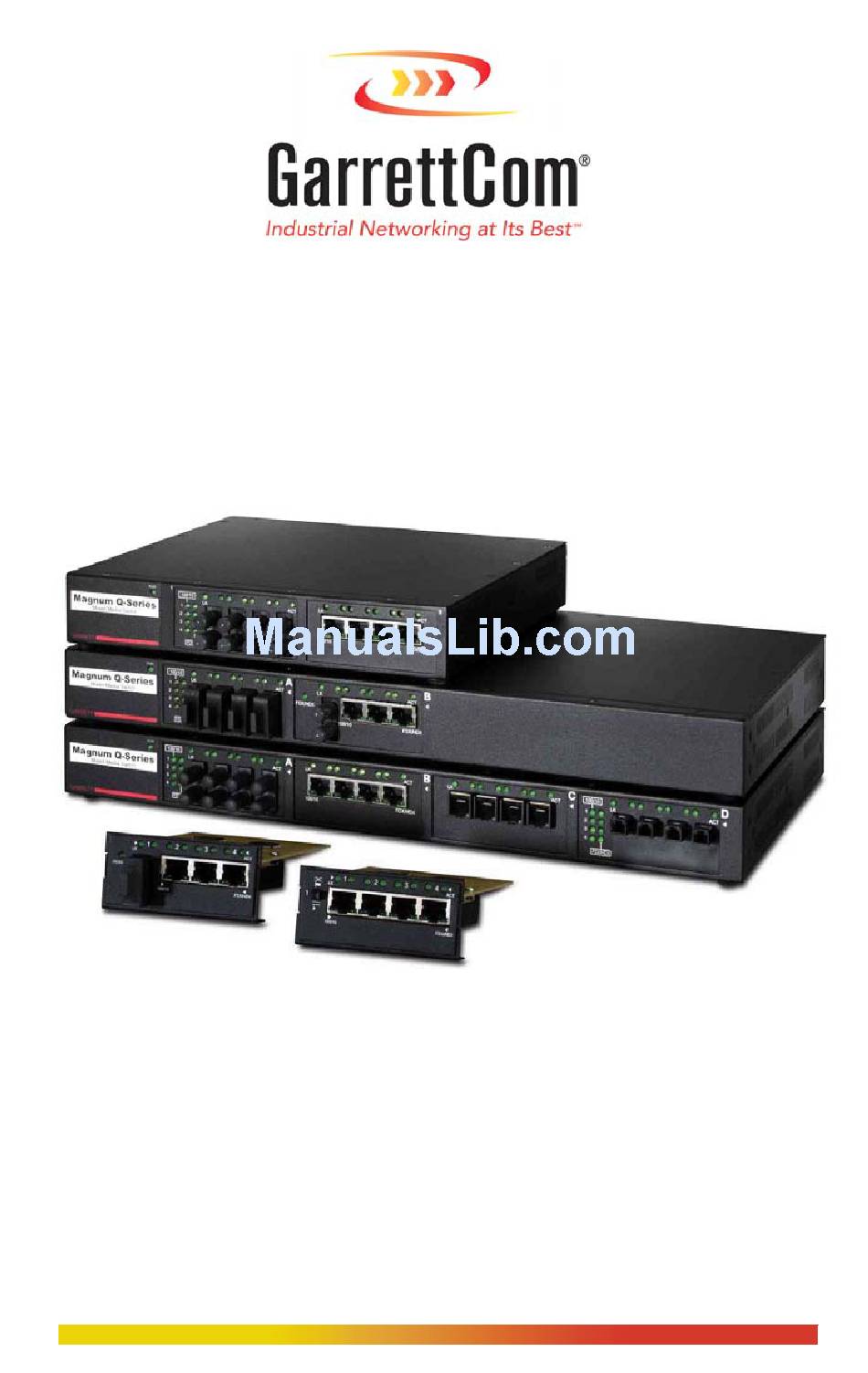

- Page 1 Magnum Quad-Series Fiber Switches Installation and User Guide www GarrettCom com $5.00 USD...
- Page 2 Important: The Magnum Quad Series Fiber Switch contains no user serviceable parts. Attempted service by unauthorized personnel shall render all warranties null and void. If problems are experienced with Magnum Quad Series Fiber Switch products, consult Section 6, Troubleshooting, of this User Guide.
- Page 3 Magnum Quad-Series Fiber Switches Installation and User Guide (06/09) Contacting GarrettCom, Inc Please use the mailing address, phone and fax numbers and email address listed below: GarrettCom, Inc. 47823 Westinghouse Dr. Fremont, CA 94539 Phone (510) 438-9071 Fax (510) 438-9072 Website: http://www.GarrettCom.com...
- Page 4 For earthing wiring, use minimum 14 AWG size wiring. Product does not contain user replaceable fuses. Any internal fuses can ONLY be replaced by GarrettCom personnel through the RMA process. Installation requirements: Elevated Operating Ambient Temperature- If installed in a closed or multi-unit rack assembly, the operation ambient temperature of the rack environment may be greater than room ambient.
-
Page 5: Table Of Contents
Quad-port modules, 10 Mb fiber... 7 2.2.4 Quad-Port Module, RJ-45 (copper) ... 8 2.2.5 Combo “3 + 1” Quad Port Modules, 3@RJ-45 and 1@fiber ... 8 2.2.6 Frame Buffering and Latency ... 9 Features and Benefits ... 11 Applications ... 12 INSTALLATION ... - Page 6 Rev B 04/01 : Change the company name to GarrettCom, Inc. (Formerly it was Garrett Communications). There are no changes to the content of the material at this time Rev A 08/99 : This revision is the initial release of the Magnum Quad Series Fiber Switch user manual. www GarrettCom com...
- Page 7 4K-Series Switches, 100 and 10 Mbps, copper ports with optional fiber port, with auto-negotiating full switching performance. Quad-Series Fiber Switches, 100 & 10Mbps, fiber and copper ports, mixed-speed and mixed-media types, full switching performance. P62-Series “Outdoor Ethernet Switches, for temperature uncontrolled applications 6 10/100 and 2 100Mb fiber ports, managed and unmanaged models, all fiber types.
-
Page 8: Specifications
100BASE-FX, half-duplex, single-mode 100BASE-FX, full-duplex, single-mode Connectors for copper wiring Twisted Pair at 10/100Mb: (for Magnum Quad-Series Fast Ethernet copper ports, use Cat 5 cable) Fiber Multi-mode connector types: Fiber Port, SC-type (snap-in): Fiber Port, ST-type (twist-lock): Fiber optic multi-mode, 100BASE-FX... -
Page 9: Agency Approvals
Magnum Quad-Series Fiber Switches Fiber Single-mode connector types: Fiber Port, SC-type: Fiber optic single-mode, 100BASE-FX Manual switch-selections and jumpers Up-link Push-button: Crossover sw for one RJ-45 port per QPM-RJ45 Fiber default: Full-duplex (Internal jumpers may select HDX mode) Copper default: Auto-negotiation (Internal jumpers may alternatively... -
Page 10: Ordering Information
Same as Model QS580 Switch, but in a 19” rack-mount package, with mounting brackets. Same as Model QS5108, but with 24K-node address table and 8MB packet buffers. Holds up to 4 Quad-port Modules (QPMs), 19” rack-mount package, with mounting brackets. Fiber module for Quad-Series Switches, with four... -
Page 11: Introduction
To validate the product warranty, please complete and return the enclosed Product Registration Card to GarrettCom, Inc. as soon as possible. In the event there are items missing or damaged, contact the party from whom you purchased the product. -
Page 12: Product Description - Magnum Quad-Series Fiber Switches
10/100Mb RJ-45 (copper) ports in the same unit. This flexibility is achieved via a family of quad-port modules that can be integrated with a base unit, in the factory and in the field, to adapt the unit to the individual application’s changing mixed-media requirements for a 10/100... - Page 13 Magnum Quad-Series Fiber Switches mountable Switches with two or four quad-port slots in the front, i.e., with a capacity of 8 or 16 switched ports. The QS5108 and QS5116 rack-mount units are typically used in larger network wiring centers. Magnum QS580...
-
Page 14: 2.2.2 Quad-Port Modules, 100Mb Fiber
SC-Type Fig.2.2.2 Fiber Quad-Port Modules, QPM ST, QPM-SC, QPM-MTRJ, QPM-MV45 In a fiber quad-port module, all of the fiber ports are of the same speed, the same multi- or single-mode, and the same connector type. Multi-mode 100Mbps models are available with ST, SC, MTRJ, and VF-45 connectors. Single-mode 100Mbps models are available with SC connectors. -
Page 15: Quad-Port Module, Rj-45 (Copper)
Internal jumper settings (See Section 3.4) allow technicians to over-ride the auto-negotiation feature and to manually set each port at full-duplex or half-duplex. One port on each RJ-45 quad-port module is equipped with a Media Dependent Interface- Crossover (MDI-X) push-button switch to simplify cascaded or up-link connections. -
Page 16: Frame Buffering And Latency
QPM-RJ45 in Section 2.2.4 above. The fiber port is fixed at 100Mbps speed at all times, and has LEDs that indicate status the same way as described for the Fiber Quad-port modules in Section 2.2.2 above. 2.2.6 Frame Buffering and Latency The Magnum Quad-Series are store-and-forward switches. - Page 17 Magnum Quad-Series Fiber Switches Magnum Quad-Series unit to be applied to all traffic loads, even when the traffic activity is unbalanced across the ports. Since the traffic on an operating network is constantly varying in packet density per port and in aggregate density, the Magnum Quad-Series Switches are constantly adapting internally to provide maximum network performance with the least dropped packets.
-
Page 18: Features And Benefits
Quad-port modules are available with 100Mb mm ST, SC, VF-45, MTRJ single-mode SC, and 10 Mb ST-type connectors. The configuration of the fiber ports, in the factory or in the field, allows the Quad-Series Switches to adapt to mixed and changing fiber types in any application. -
Page 19: Applications
The Dual-Speed characteristic of the Quad-Series Switches enables them to inter-connect a series of subnets (one subnet per Q-Series Switch) in a LAN traffic center. - Page 20 QPMs with multi-mode or single-mode fiber types are available. This requirement for connecting local devices over twisted pair cabling is handled by the Magnum QS5108 using a 4-port RJ-45 Quad-Port Module. The QPM provides a switched port for two local high speed servers, another for the router, another for the users connecting into a 16-port dual-speed hub such as the Magnum DS8016.
- Page 21 If the probable growth of the central Switch is towards more local high speed servers and users, then one quad-port fiber QPM is selected to provide 4 of the required fiber ports, and two “combo 3@RJ-45 + 1@fiber” QPMs are configured for the other 2 fiber ports plus 6 of the switched copper ports.
-
Page 22: Installation
The Magnum Quad-Series Fiber Switches are specifically designed to support all standard Ethernet media types within a single Switch unit. This is accomplished by using a family of Quad-port Modules (QPMs) which can be individually selected and configured per-port. See Section 2.4 for a description... -
Page 23: Connecting Fiber Optic St-Type, "Twist-Lock
Magnum Quad-Series Fiber Switches of the QPMs. The various media types supported along with the corresponding IEEE 802.3 and 802.3u standards and connector types are as follows: IEEE Standard Fiber: 100BASE-FX small form factor 10BASE-FL Copper: 10BASE-T & 100BASE-TX twisted pair 100m (328 ft) mm = multi-mode 3.2.1... -
Page 24: Table-Top Or Shelf Mounting
Connecting Twisted Pair (RJ-45,CAT3, CAT5, Unshielded or Shielded) The RJ-45 ports of the Magnum Quad-Series can be connected to the following two media types: 100BASE-TX and 10BASE-T. CAT 5 cables should be used when making 100BASE-TX connections. When the ports are used as 10BASE-T ports, CAT 3 may be used. -
Page 25: Wall (Or Vertical Surface) Mounting, 8-Port Qs580
(and screws) to allow the unit to be mounted in nearly any desired orientation or position. The brackets are attached to the metal switch case using one of the metal screws for each bracket, and attached to the Magnum QS580 through the round hole of the bracket. A user-supplied screw attaches the bracket to the mounting surface. - Page 26 Magnum Quad-Series Fiber Switches The 23” brackets and ETSI brackets are also available (optional) for Rack- mounting of Magnum QS5108 and QS5116 mixed-media fiber Switches. The 23” brackets are more popular in Telco industry where they are standard for Central Office rack-mounting purposes.
-
Page 27: Ports, Int Jump Set For 10/100Mb
Q-Series RJ-45 (copper) quad-ports to be fixed, even if the attached device may or may not support auto- negotiation. This is desirable when there are unknown devices presently or potentially connected, which will not operate correctly with auto-negotiation. -
Page 28: Fiber 100Mb Ports, Int Jump Set For 100Mb Fixed
Note: Be certain that the main power is disconnected before opening the unit or changing any internal jumper setting quad-ports to be fixed, even if the attached device may or may not support full-duplex. This is desirable when there are unknown devices presently or potentially connected, which will not operate correctly with full-duplex. -
Page 29: Combo(3+1) Ports, Int Jump Set For 10/100 Rj-45 Auto-Neg
If full-duplex will not function properly in your setup, internal jumpers allow the speed and mode of the Q-Series Combo- quad ports to be fixed, even if the attached device may or may not support full-duplex. This is... -
Page 30: Fiber 10Mb Ports, Int Jump Set For 10Mb Fixed Half- Or
10Mbps will not function properly in your setup, internal jumpers allow the duplex mode of the Q-Series fiber quad- ports to be changed, even if the attached device supports full-duplex. This is desirable when there are devices connected which will not operate correctly with half-duplex. -
Page 31: Powering The Magnum Quad-Series Switch
Powering the Magnum Quad-Series Switch The Magnum Quad-Series Switches incorporate an internal universal power supply, and has a recessed male IEC connector for the AC power cord at the left-rear. A manual power ON-OFF switch is adjacent. A six-foot 115 VAC 60 Hz standard power cord is supplied with each unit shipped within the United States and Canada. -
Page 32: Quad Port Module (Qpm) Installation
Individual segments can be connected or disconnected without concern for AC power-related problems or damage to the unit. Power supply options are available to suit the Quad-Series Switches to special high-availability communications and/or heavy industrial-grade applications, including: * -48VDC, 24VDC & 125VDC with single DC input, * -48VDC, 24VDC &... - Page 33 Magnum Quad-Series Fiber Switches Step 2. Remove Chassis Cover The Magnum Q-Series chassis are combined with top and bottom part and assembled together with the help of 20 Philips head screws. There are 7 screws located on front-top of the unit and three screws each on the left and right edges. Remove these screws.
-
Page 34: Installing Qpm Cards In The Magnum Q-Series
Magnum Quad-Series Fiber Switches Figure 3.9.1b: Magnum QS5116, Top View with Chassis Cover Step 3. Remove bottom-front and modules rear top Retaining Screws in any QPM or Face Plates On the bottom-front of the unit, there are two retaining screws for each QPM card slot as well as two other retaining screws on the rear top of the module. - Page 35 Magnum Quad-Series Fiber Switches the QPM card with the connector socket inside the unit. Step 5. Be sure the QPM front panel is guided into the front slot cut-out first and then precisely aligned the header pins with the holes in the socket slot mounted on the board.
-
Page 36: Removing Qpm Cards
Step 8. Once all QPM cards have been installed (including face plates for empty slots), the chassis cover should be replaced. 3.9.3 Removing QPM Cards To properly remove a QPM card from the Fiber Switch, follow the 3 steps below. Step 1. Remove chassis cover Caution: Be sure the power cord is unplugged. -
Page 37: Operation
10 or 100Mb separate traffic domain for fiber port to maximize bandwidth utilization and network performance. All ports can communicate to all other ports in a Magnum Quad-Series, but local traffic on a port will not consume any of the bandwidth on any other port. -
Page 38: Status Leds
The module has a manual Up-link push-button, located on the front panel next to 10/100Mb RJ-45 Quad-port # 1 which it controls. It enables the port’s cable to either connect to a user station node (push in) or to be cascaded (push out) to a 10/100Mb repeater or switching hub in the network. - Page 39 If the device at the other end is not an auto-negotiating device, the Quad-Switch’s RJ-45 ports will try to detect its idle signal to determine 10 or 100 speed, and will default to half-duplex at that speed per the IEEE standard.
-
Page 40: Auto-Negotiation For 10 Mb Ports, Half- Or Full-Duplex Mode
Magnum Quad-Port Switch will negotiate to run full-duplex. If the attached device or node doesn’t support F/H mode auto-negotiation (for example, if it is a 10 Mb repeater or a standard 10 Mb hub), the Quad-Switch’s RJ-45 ports will default to operate at half-duplex. -
Page 41: Power Budget Calculations For Quad-Series Qpm's With Fiber
Magnum Quad-Series Fiber Switches Power Budget Calculations for Quad-Series QPM’s with Fiber Media Receiver Sensitivity and Transmitter Power are the parameters necessary to compute the power budget. To calculate the power budget of different fiber media installations using Magnum products, the following equations should be used:... -
Page 42: Introduction - Magnum Quad-Series (Qpm)
Chapter 5 for specific return procedures. Product Description An important feature of the Magnum Quad-Series is the use of Quad- Port Modules (QPMs) for flexible mixed-media connectivity to RJ-45 and fiber media. Since the Magnum Quad-Series Switches have dual-speed capability for copper ports, the quad-port interfaces are designed to support all standard Ethernet media types at 10 or 100Mps speed. -
Page 43: Qpm-Mst, 100Mb Multi-Mode Fx-St Quad-Port Mod
Magnum Quad-Series Fiber Switches 5.2.1 QPM-MST, 100Mb multi-mode FX-ST Quad-port Module, “twist lock” The Magnum QPM-MST is a multi-mode 100Mbps fiber optic quad-port module equipped with dual ST-type connectors. It functions as a fiber optic transceiver to support 100BASE-FX network segments. When installed in a... -
Page 44: Qpm-Msc 100Mbps Multi-Mode Fx-Sc Quad-Port, "Snap
Magnum Quad-Series Fiber Switches 5.2.2 QPM-MSC 100Mbps multi-mode FX-SC Quad-port, “snap-in” connector The Magnum QPM-MSC is a multi- mode 100Mbps fiber optic transceiver module, similar to the QPM-MST. It has the same LEDs indicating port activity (ACT), Link (LK), and FDX or HDX operation, and the same face-plate lettering. -
Page 45: Qpm-Mtrj, 100Mb Multi-Mode Fx Quad-Port, Mtrj Small
QPM-MV45, 100Mbps multi-mode FX Quad-Port VF45 small- form factor Magnum QPM-MV45 is a quad-port multi-mode fiber FX “small-form-factor” VF-45 connector used primarily in 100Mbps fiber-to-the-desktop links. Its size is similar to the MT-RJ port, but the VF-45 shell is slightly larger. When not in use, its appearance... -
Page 46: Qpm-Rj45 (Twisted Pair), 10/100Mb Tp Quad-Port
(UTP) and shielded twisted pair (STP) cable connections. The QPM-RJ45 quad-port module is equipped with a Media Dependent Interface-Crossover (MDI-X) push-button to allow for one cascaded connection. This feature eliminates the need for a special twisted pair crossover cable when connecting to a hub or another switch. -
Page 47: Multi-Mode Connector, "Combo" Quad-Port Module
QPRJ-MST, “3 + 1” 3@10/100Mb RJ-45 and 1@100Mb Fiber ST Multi-mode Connector, “Combo” Quad-Port Module The Magnum QPRJ-MST is also a 3+1 Combo quad-port. It is the same as the QPRJ-MSC “3+1 combo” module except the multi-mode fiber port is ST-type. See Section 5.2.1 for a description of the 100Mb multi-mode-mode fiber SC-type port. -
Page 48: Single-Mode Connector, "Combo" Quad-Port Module
QPRJ-SSC, “3 + 1” 3@10/100Mb RJ-45 and 1@100Mb Fiber SC Single-mode Connector, “Combo” Quad-Port Module The Magnum QPRJ-SSC is also a 3+1 Combo quad-port module. It is the same as the QPRJ-MSC “3+1 combo” module except the fiber port is single-mode. See Section 5.2.3 for a description of the 100Mb single-mode fiber port. -
Page 49: Troubleshooting
However, if you are unsure of the procedures described in this section or if the Magnum Quad Series Fiber Switch is not performing as expected, do not attempt to repair the unit; instead contact your supplier for assistance or contact GarrettCom Customer Support. -
Page 50: When Calling For Assistance
(see Warranty Information, Appendix A, for complete details). However, if the problem or condition causing the return cannot be duplicated by GarrettCom, the unit will be returned as: GarrettCom reserves the right to charge for the testing of non-defective... -
Page 51: Shipping And Packaging Information
Testing and repair of product that is not under warranty will result in a customer (user) charge. Shipping and Packaging Information Should you need to ship the unit back to GarrettCom, please follow these instructions: Package the unit carefully. It is recommended that you use the original container if available. - Page 52 It protects the Quad-Series Switches from incorrect DC input connections. An incorrect polarity connection, for example, will neither affect the Quad-Series Switches, its internal power supply, nor will it blow the fuse in the internal power supply. The manual power “On-Off” Switch (optional) is used for powering the unit on and off when it is placed into or taken out of service.
- Page 53 (3) screw-down lead posts. It is similar for 24, 100 and 125VDC options on the Quad-Series Switch. The leads are identified as negative (-), positive (+), and chassis ground (GND).
-
Page 54: Appendix C: Magnum Internal Dc Dual-Source Power Option
Magnum QS5116-48VDC, QS5116-24VDC, QS5116-100VDC, and QS5116-125VDC with this Dual-Source option are identical to those listed in the Magnum Quad-Series Fiber Switch Installation and User Guide, including Appendix B “Internal DC Power Supply Option”... - Page 55 INSTALLATION This section describes the proper connection of the -48VDC, 24, 100 and 125VDC dual source leads to the DC power terminal block on the Magnum Quad-Series Switch (shown in Figure C4.0 with 48v input as example). The –48VDC terminal block on the Magnum Quad-Series Switch is located on the right rear of the unit and is equipped with five (5) screw-down lead posts (see Figure C5.0).
- Page 56 Magnum Quad-Series Fiber Switches Note: The GND should be hooked up first. The Quad-Series Switch unit has a floating ground, so the user may elect to Ground either + or = terminal to suit the customer’s use. Before connecting to Terminal Block of –48VDC, 24, 100 or 125VDC, always use a digital voltmeter to measure the output voltage of the power supply and determine the lead which is more “+ve potential”.
