Page 1: User Manual

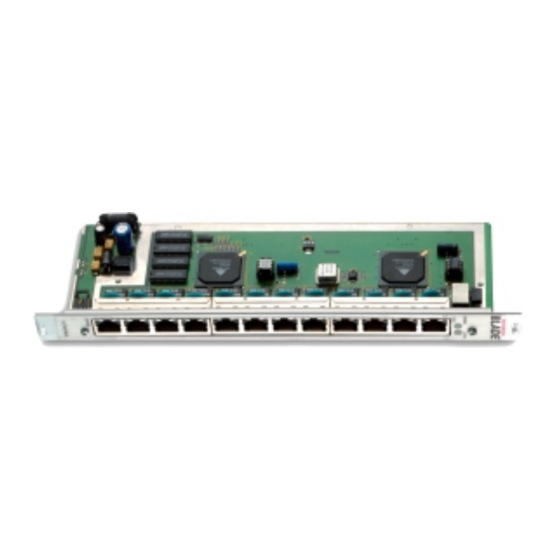

MagnumBlade Compact PCI Hubs 10/100 Mbps & 100Mbps Hubs User Manual www GarrettCom com... - Page 2 If problems are experienced with a Magnum Blade cPCI Hub, consult page 9, Troubleshooting, of this User Guide. Copyright 2001 GarrettCom, Inc. All rights reserved. No part of this publication may be reproduced without prior written permission from GarrettCom, Inc.
-
Page 3: Ordering Information
Stand alone operation, uses no cPCI Backplane connectors. Magnum Blade DS12E Same as DS12 but the speed is fixed at 100Mbps, no auto-negotiation. GarrettCom, Inc. reserves the right to change specifications, performance characteristics and/or model offerings without notice. www GarrettCom com... -
Page 4: Table Of Contents
Inc. manual standard. There are no changes to the content of the material at this time. Rev B 09/00 : Change the company name to GarrettCom, Inc. (Formerly it was Garrett Communications). There are no changes to the content of the material at... -
Page 5: Operating Environment
10Mbps: use Category 3, 4, 5 UTP SWITCHES, MANUAL: MDI-X thumb operated slide up-link switch converts top-most port# 1 on hub from a regular (= position) user segment port to a cross connection to a central hub or switch, or another cascaded hub or switch. -
Page 6: Power Supply (External)
Magnum Blade 10/100Mbps cPCI Hubs POWER SUPPLY (EXTERNAL): Power Input Voltage: 12VDC Power Consumption: 6.5 Watts typical Dimensions: 10.3in H x 0.8in W x 3.3in D(262mm x 20mm x 84mm) Weight: 0.5lb. (0.25 kg) LED INDICATORS, Unit: PWR: Steady on when power applied. -
Page 7: Introduction
I/O slot for a simple solution to cPCI Ethernet system problems. This eliminates the need for a hub in a separate box. The reliable Magnum Blade hubs provide efficient slot utilization in a 6U X 4HP-cPCI form factor with no cPCI Backplane connections used. They can be used in practically any cPCI system, without design modifications. -
Page 8: Features
Magnum Blade 10/100Mbps cPCI Hubs Features Twelve Ethernet hub ports on a 6U X 4HP Form-Factor cPCI Uses Rear I/O slot in cPCI chassis, keeping Ethernet cabling in the rear area No cPCI backplane connections, “universal”, can be used in any... -
Page 9: Hardware Installation
100 m, and that the longest UTP cable path through a 100Mb collision domain (max. of two Class II cascaded hubs) should not exceed 205 meters. -
Page 10: Troubleshooting
(node) setting. The up-link switch enables cascading when the switch is set to the crossover (X, or front) position. Alternately, when the switch is set to the normal straight through (=, or back) position, the port operates as a normal node-connection port. -
Page 11: Warranty
Phone: (510) 438- 9071, Fax: (510) 438- 9072 www.garrettcom.com Email: support@garrettcom.com HARDWARE: GarrettCom, Inc. (GCI) warrants to the original purchaser that each of its products, and all components thereof, will be free from defects in materials and/or workmanship for three years from the original date of purchase. Any warranty hereunder is extended to the original purchaser and is not assignable. -
Page 12: Warranty Registration Card
Magnum Blade 10/100Mbps cPCI Hubs ARRETT OM WARRANTY REGISTRATION CARD Important: Read the attached Warranty Statement card, then complete and return immediately. Please complete this form and return within 10 days of purchase to validate the warranty. PLEASE PRINT OR TYPE BELOW...
