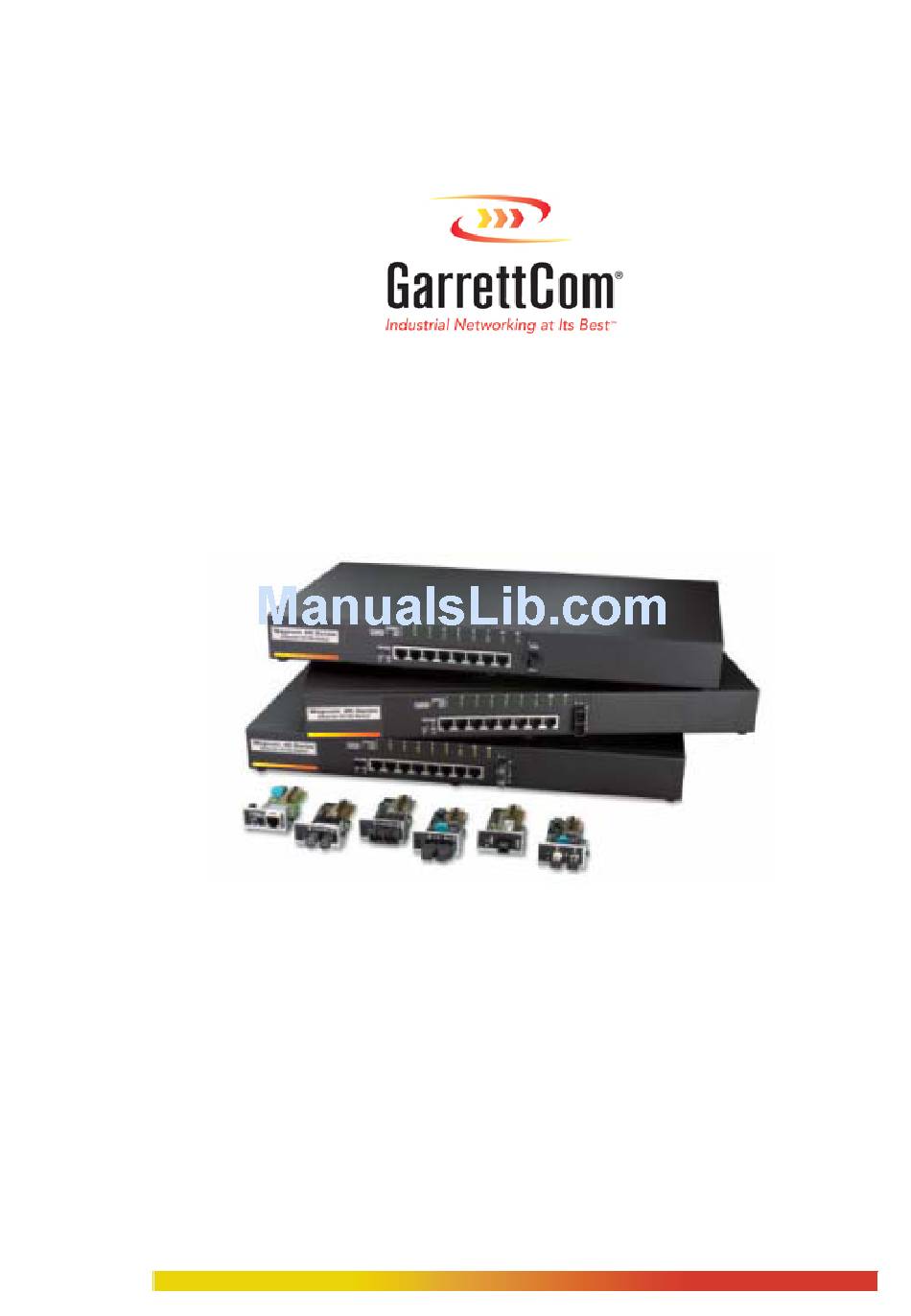

- Page 1 Magnum 4K-Series 4K8 Switches Installation and User Guide www GarrettCom com $5.00 USD...
- Page 2 If problems are experienced with a Magnum 4K8 Switches, consult Section 6, Troubleshooting, of this User Guide. Copyright ©2004 GarrettCom, Inc. All rights reserved. No part of this publication may be reproduced without prior written permission from GarrettCom, Inc.
- Page 3 Magnum 4K8 Switches Contacting GarrettCom, Inc. Please use the following mailing address, phone and fax numbers or Internet address. Web: http://www.GarrettCom.com Email: support@garrettcom.com Federal Communications Commission Radio Frequency Interference Statement Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
-
Page 4: Table Of Contents
Auto-negotiation, for Fast Ethernet copper ports... 24 Auto-negotiation for 10/100Mb ports,... 26 Flow-control, IEEE 802.3x standard ... 26 Power Budget Calculations for 4K-Series FPM’s with Fiber Media. 27 INTRO - MAGNUM 4K8 FIBER-PORT MODULES (FPM)... 28 Inspecting the Package and Product (Optional)... 28 Product Description ... - Page 5 125VDC Power option. Rev C 01/02 : Updated Operating Environment Spec. Rev B 04/01 : Change the company name to GarrettCom, Inc. (Formerly it was Garrett Communications). There are no changes to the content of the material at this time Rev A 12/00 : This revision is the initial release of the 4K8 Switches user manual.
- Page 6 6K25 Managed Fiber Switches, Gigabit, 100 and 10 Mbps, fiber and copper ports, mix-and match. Features SFF fiber for up to 25 fiber ports in a 1U unit. 4K-Series Switches, 100 and 10 Mbps, copper ports with optional fiber port, with auto-negotiating full switching performance.
-
Page 7: Specifications
Fiber Port, SC-type: Fiber optic single-mode, 100BASE-FX Manual switch-selections and jumpers Up-link Push-button: Crossover switch for one RJ-45 port#1 F-H: In F Port #9(fiber port)at full 100Mbps and in H at Half-duplex Fiber default: Full-duplex (Internal jumpers may select HDX mode) - Page 8 Cooling method: Fan cooled, @ 9 cfm Power Supply (Internal) AC Power Connector: IEC-type, male recessed at rear of chassis, with adjacent manual ON-OFF switch (on AC models only) Input Voltage: Input Frequency: 47 to 63 Hz (auto-ranging) Power Consumption: 9 watts typical, 11 watts max.
-
Page 9: Ordering Information
Magnum 4K8 Switches Ordering Information Magnum 4K8 Switches MODEL Magnum 4K8 Magnum 4K8R Fiber Port Modules for Magnum 4K-Series(4K8 Switches only) FPM-MSC FPM-MST FPM-SSC FPM-MV45 FPM-MTRJ K8PM-RJ45 FPM10-MST FPM-BLNK See appendices B and C for information on DC-powered models and options. -
Page 10: Introduction
To validate the product warranty, please complete and return the enclosed Product Registration Card to GarrettCom, Inc as soon as possible. In the event there are items missing or damaged, contact the party from whom you purchased the product. -
Page 11: Product Description - Magnum 4K8 Switches

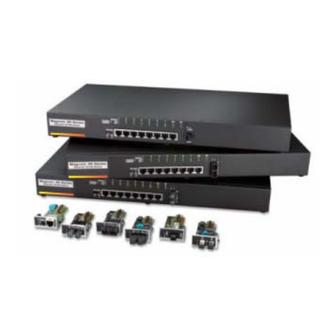

The 4K8 19” rack-mountable Switches comes along with eight 10/100 RJ-45 ports and one optional 10 or 100Mbps fiber port module on the right, i.e., with a capacity of 9 switched ports. www GarrettCom com Installation and User Guide port, may be configured from a variety of user selected... -
Page 12: 2: Magnum 4K8R "Reverse" Model, Front Leds And Connections In Rear
Soeed and F/H Full and Half duplex Leds for each port. The manual switch with (=, x)supports the port#1 for crossover port feature, whereas “F-H” manual switch for FPM port are user selectable for full fixed and half duplex. -
Page 13: 2.2.3 Fiber-Port Modules, 100Mb Fiber
2.2.3 Fiber-port modules, 100Mb fiber Fig.2.2.3 Fiber-Port Modules, FPM-ST, FPM-SC, FPM-MTRJ The fiber port module is optional for Magnum 4K8 Switch. In a fiber port module, all of the fiber ports are of the fixed speed at 100Mbps or 10Mb, either multi- or single-mode, and different connector type. -
Page 14: 2.2.4 Fiber-Port Modules, 10 Mb Fiber
LEDs to provide valid indications of operating conditions. The port#1 is equipped with a Media Dependent Interface-Crossover (MDI- X) push-button switch to simplify cascaded or up-link connections. www GarrettCom com Installation and User Guide... -
Page 15: Frame Buffering And Latency
Magnum 4K8 Switches are constantly adapting internally to provide maximum network performance with the least dropped packets. When the Switch detects that its free buffer queue space is low, the Switch sends industry standard (full-duplex only) PAUSE packets out to the devices sending packets to cause “flow control”. - Page 16 (when operating at half-duplex only). When the Switch detects that its free buffer queue space is low, the Switch prevents more frames from entering by forcing a collision signal on all receiving half-duplex ports in order to stop incoming traffic.
-
Page 17: Features And Benefits
Extended Temperature Operation The Magnum 4K8 has been tested for operation at temperatures of –5’C to 55’C. NEBS-certified models have been tested to a greater range per NEBS Level 3 requirements. For details, email mktg@garrettcom.com www GarrettCom com Installation and User Guide... -
Page 18: Applications
Speed characteristic of the 4K8 Switches enables them to inter-connect a series of subnets (one subnet per 4K-Series Switch) in a LAN traffic center. The subnet connections may be via either optional fiber or twisted pair cabling, and may be 100Mbps or 10 Mbps speed and full-or half-duplex mode. - Page 19 Example 2: In another situation similar to Example 1 above, a central Switch is needed to provide for a 8-segment 100Mb fiber Fast Ethernet backbone with switched copper support for 1 high speed local servers and 5 personal network setup for each different departments.
-
Page 20: 3.0 Installation
The location of a Magnum 4K8 Switch is dependent on the physical layout of the network. Typically the Switch is placed in a central wiring location where groups of network devices need to be connected in order to communicate with each other. These Switches are typically rack mounted in a wiring closet see Section 3.3.2 below), but... -
Page 21: Connecting Ethernet Media
Connecting Ethernet Media The Magnum 4K8 Switches are specifically designed to support all standard Ethernet media types within a single Switch unit. This is accomplished by using a family of Fiber-port Modules (FPMs) which can be individually selected and configured per-port. See Section 2.4 for a description of the FPMs. -
Page 22: Connecting Fiber Optic Sc-Type, "Snap-In
Connecting Twisted Pair (RJ-45,CAT3, CAT5, Unshielded or Shielded) The RJ-45 ports of the Magnum 4K-Series can be connected to the following two media types: 100BASE-TX and 10BASE-T. CAT 5 cables should be used when making 100BASE-TX connections. When the ports are used as 10BASE-T ports, CAT 3 may be used. -
Page 23: Rack-Mounting
Rack-mount installation requires special 19” rack-mounted brackets and screws (included with each 4K8 unit). The brackets attach to the front sides of the Switch, which is then fastened into a standard 19” RETMA rack. The 23” brackets and ETSI brackets are also available (optional) for rack- mounting of Magnum 4K Series Switches. -
Page 24: Fiber Port Module (Fpm) Installation
Magnum 4K8 Switches Fiber Port Module (FPM) Installation The Magnum 4K-Series Fiber Switches are normally received from the factory with all required FPM modules installed. There may be situations where FPM cards need to be added or replaced. In cases where additional FPM cards are needed, the face plate for an available front-mounted slot must be removed. - Page 25 AC Power Input Power Supply Board Left Side Media Connector LED Status Slot Figure 3.4.1b: Magnum 4K8 Switch, Top View without Chassis Cover www GarrettCom com Installation and User Guide 20 Phillips Head Screws on Top TopChassis Cover Back of Unit...
-
Page 26: Installing Fpm Cards In The Magnum 4K8 Switches
Sect.3.4.3. 3.4.2 Installing FPM Cards in the Magnum 4K8 Switches Up to sixteen front-mounted FPM card may be installed in one Magnum 4K8 Switch unit. Follow these steps to install a FPM. Step 1. Remove front-top chassis above. Step 2. The figure here illustrates the basic layout of an individual FPM card. - Page 27 Step 4. Once FPM cards have been installed, the chassis cover should be replaced. 3.4.3 Removing FPM Cards from Magnum 4K8 Switches To properly remove an FPM card from a 4K8 Switch, follow the 3 steps below. Step 1. Remove chassis cover Caution: Be sure the power cord is unplugged.
-
Page 28: Powering The Magnum 4K8 Switch
IEC connector for the AC power cord at the left-rear. A manual power ON-OFF switch is adjacent. A six-foot 115 VAC 60 Hz standard power cord is supplied with each unit shipped within the United States and Canada. -
Page 29: Operation
Switching Functionality A Magnum 4K-Series provides switched connectivity at Ethernet wire-speed among all of its ports. The Magnum 4K-Series supports10/100Mbs for copper media and 10 or 100Mb separate traffic domain for fiber port to maximize bandwidth utilization and network performance. All ports can communicate to all other ports in a Magnum 4K8, but local traffic on a port will not consume any of the bandwidth on any other port. -
Page 30: Status Leds
# 9(Fiber port module) to full fixed 100Mbps only whereas in “H” position led the port#9 to set at half-duplex. The Magnum 4K-Series Fast Ethernet bonus copper port# 9 can be set for either fixed 100Mb speed or for 10/100 F/H N-way auto-negotiation per the IEEE802.3u standard. - Page 31 When operating in 100Mb half-duplex mode, cable distances and hop-counts may be limited within that collision domain. The Path Delay Value (PDV) bit-times must account for all devices and cable lengths within that domain. For Magnum 4K-Series www GarrettCom com...
-
Page 32: Auto-Negotiation For 10/100Mb Ports
Duplex mode. The purpose of flow-control is to reduce the risk of data loss if a long burst of activity causes the switch to save frames until its buffer memory is full. This is most likely to occur when data is moving from a 100Mb port to a 10 Mb port, and the speed difference makes the 10Mb port unable to keep up. -
Page 33: Power Budget Calculations For 4K-Series Fpm's With Fiber Media
Magnum 4K8 Switches Power Budget Calculations for 4K-Series FPM’s with Fiber Media Receiver Sensitivity and Transmitter Power are the parameters necessary to compute the power budget. To calculate the power budget of different fiber media installations using Magnum products, the following equations should be used:... -
Page 34: Intro - Magnum 4K8 Fiber-Port Modules (Fpm)
Chapter 5 for specific return procedures. Product Description An important feature of the Magnum 4K-Series is the use of Fiber- Port Modules (FPMs) for flexible mixed-media connectivity to RJ-45 and fiber media. Since the Magnum 4K-Series Switches have dual-speed capability for copper ports, the fiber-port interfaces are designed to support all standard Ethernet media types at 10 or 100Mps speed. -
Page 35: Fpm-Mst,100Mbps Multi-Mode Fx-St-Type, "Twist-Lock
While the functionality of the these two modules is the same, the FPM-MSC is equipped with an SC-type "snap-in" connector instead of an ST-type. www GarrettCom com Installation and User Guide 100BASE-FX, -SX and 10BASE-FL ST Connectors ACTIVITY 100BASE-FX, -SX and 10BASE-FL... -
Page 36: Fpm-Ssc 100Mbps Single-Mode Fx-Sc-Type, "Snap-In
4K8 Full-duplex Switch, it supports fiber optic cable distances up to 100Mbps full duplex no-collisions domain distance limits, i.e., typically 2000 meters. www GarrettCom com Installation and User Guide 100BASE-FX, 10BASEFL sgl.mode SC Connectors ACTIVITY 100BASE-FX MT-RJ... -
Page 37: Fpm-Mv45, 100Mbps Multi-Mode Fx, Vf-45 Small-Form-Factor
When installed in a Magnum 4K8 Full-duplex Switch, it supports fiber optic cable distances up to the 100Mbps Full-duplex non-collision-domain distance limits, i.e., typically 2000 meters. -
Page 38: Troubleshooting
4K-Series product, it is recommended that the problem device is replaced with a known good device. Verify whether or not the problem is corrected. If not, go to Step 5 below. If the problem is corrected, the Magnum 4K-Series and its associated cables are functioning properly. -
Page 39: When Calling For Assistance
Return Material Authorization (RMA) Procedure All returns for repair must be accompanied by a Return Material Authorization (RMA) number. To obtain an RMA number, call GarrettCom Customer Service at (510) 438-9071 during business hours in California or email to support@garrettcom.com). When calling, please have the following information readily available: Name and phone number of your contact person. -
Page 40: Shipping And Packaging Information
Testing and repair of product that is not under warranty will result in a customer (user) charge. Shipping and Packaging Information Should you need to ship the unit back to GarrettCom, please follow these instructions: Package the unit carefully. It is recommended that you use the original container if available. -
Page 41: Appendix B : Internal Dc Power Supply Options
Power Consumption: Model 4K8: 9 watt typical, 11 watts max. With the exception of the power supply, all specifications and functions of Magnum 4K-Series-48VDC, 24VDC and 125VDC models are identical to those listed in the main manual. B2.0-48VDC, 24VDC & 125VDC POWER OPTION, THEORY OF OPERATION The -48VDC, 24VDC &... - Page 42 48V or –48V supply must be connected to the post labeled “+”. An ON-OFF manual switch is optional for DC power. This can be used to cut off power connections and as a RESET for the 4K-Series Switch. www GarrettCom com...
-
Page 43: Ordering Information
TROUBLESHOOTING Please refer to Section 6.0 for troubleshooting APPENDIX C: INTERNAL DC DUAL-SOURCE POWER OPTION C1.0 SPECIFICATIONS - FOR MAGNUM 4K-SERIES FIBER SWITCH Power Supply (Internal, -48VDC Dual-Source, model # Dual-Src-48V) DC Power Connector: First Source: “A+”, “A GND: Terminal for “earth” or ground wire connection to the hub chassis... -
Page 44: Features And Benefits Of The Dual-Source Design
DC source with the highest voltage at a given time. The Switch unit will not allow power to flow from a higher voltage input to a lower voltage input, i.e. the two DC power sources are not mixed together by the hub. - Page 45 Magnum 4K8 Switches The -48VDC terminal block on the Magnum 4K-Series Switch is located on the right rear of the unit and is equipped with five (5) screw-down lead posts (see Fig C5.0). The primary terminals are identified as positive (A+), negative (A- ), and the secondary power terminals as negative (B-), positive(B+).
