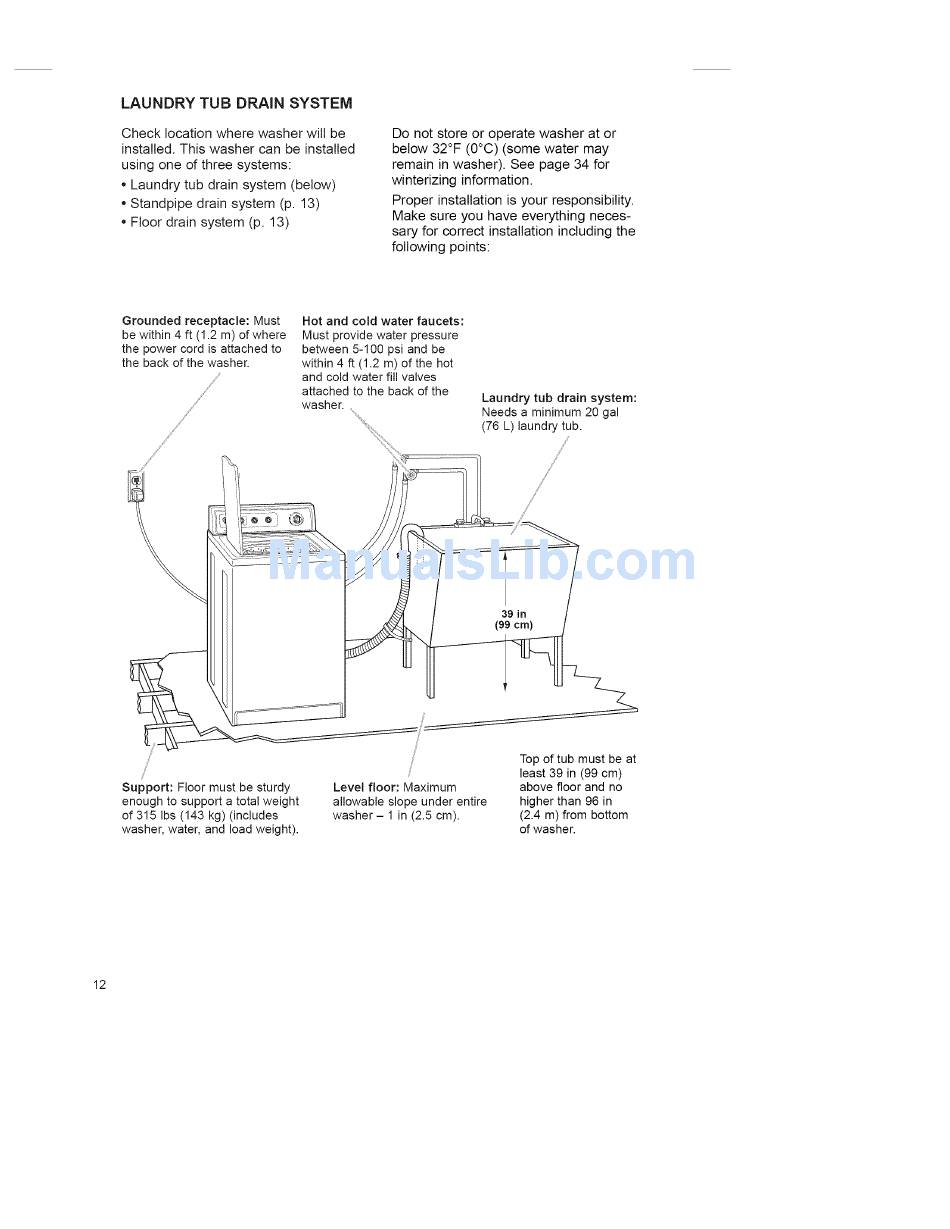

LAUNDRY TUB DRAIN SYSTEM
Check location where washer witt be
installed. This washer can be installed
using one of three systems:
Laundry tub drain system (below)
Standpipe drain system (p. 13)
Floor drain system (p. 13)
Do not store or operate washer at or
below 32°F (0°C) (some water may
remain in washer). See page 34 for
winterizing information.
Proper installation is your responsibility.
Make sure you have everything neces-
sary for correct installation including the
following points:
Grounded receptacle: Must
be within 4 ft (1.2 m) of where
the power cord is attached to
the back of the washer.
f
J
f
Hot and cold water faucets:
Must provide water pressure
between 5-100 psi and be
within 4 ft (1.2 m) of the hot
and cold water fill valves
attached to the back of the
washer.
Laundry tub drain system:
Needs a minimum 20 gal
(76 L) laundry tub.
,S
J
_ j
Support: Floor must be sturdy
enough to support a total weight
of 315 Ibs (143 kg) (includes
washer, water, and load weight).
9
Level floor: Maximum
allowable slope under entire
washer- 1 in (2.5 cm).
Top of tub must be at
least 39 in (99 cm)
above floor and no
higher than 96 in
(2.4 m) from bottom
of washer.
