EXTrUDEr DiSASSEmBLy
4. Set the extruder lever arm to the open position. The extruder lever arm is open when it points
out towards the side of the MakerBot Replicator 2X and closed when it points in towards the

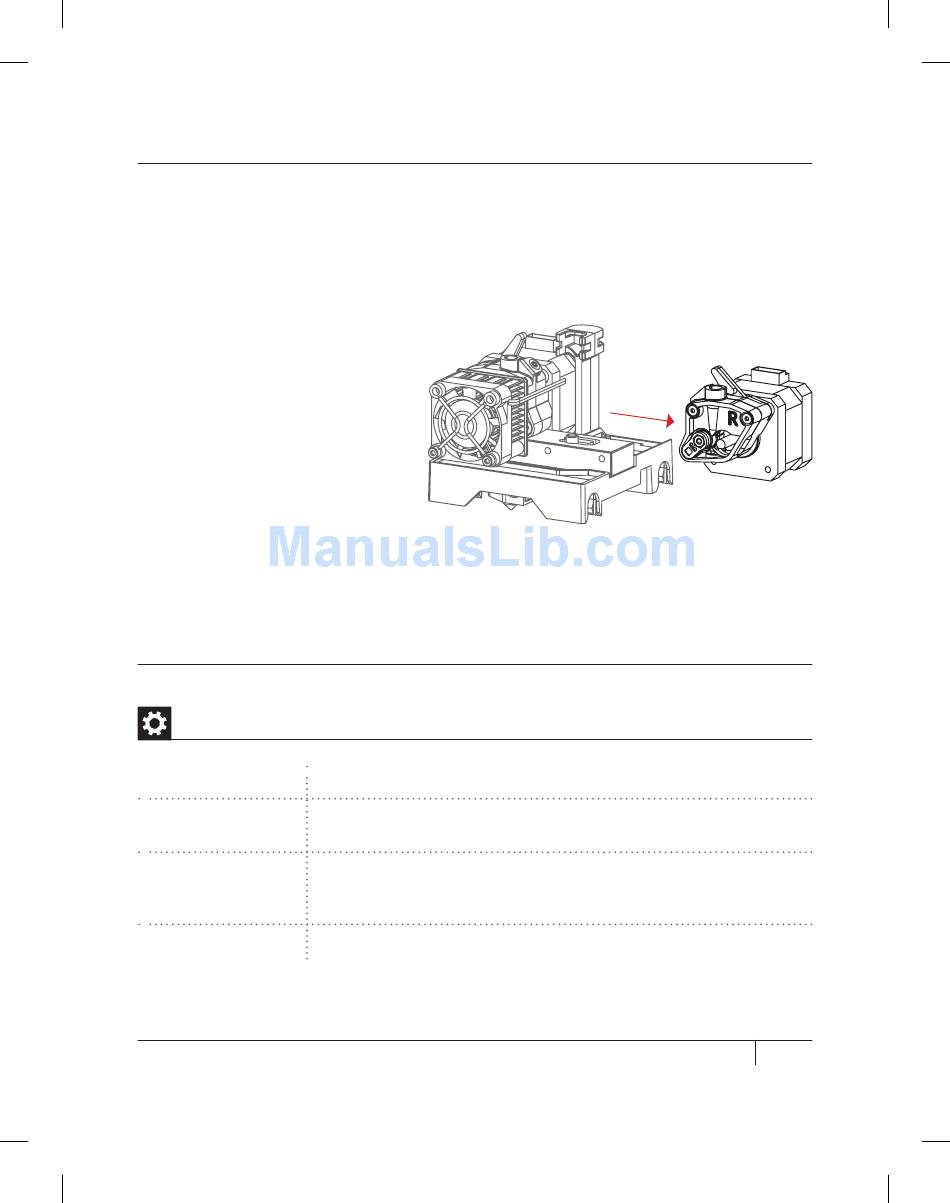

other extruder.
5. Unplug the motor wire harness
from the top of the extruder motor
and slide the motor assembly out
of the extruder.
6. The extruder is now broken down
into its main assemblies. To remove
any filament stuck in the thermal
barrier tube, run the Unload script
to heat the extruder and use a pair
of pliers to pull the filament free.

DiAgNOSTiCS

LCD: The Top-Level Menus
BUiLD FrOm SD
PrEhEAT
UTiLiTiES
iNFO AND SETTiNgS
CONTINUED

LCD PANEL | TOP-LEVEL MENU

Displays the list of models on the SD card. Select one to start a 3D print.
Allows you to preheat the extruder.
Tools that allow you to configure and maintain your MakerBot
Replicator 2X.
Optional settings and information about the MakerBot Replicator 2X.
E TROUBLESHOOTING, DIAGNOSTICS, AND MAINTENANCE 51
