5. (Optional) Connect your computer's disk activity LED cable to the LED connector on the HBA (marked
on the figures in About Your Host Bus Adapter
Ensure that the positive lead of the LED cable (usually a red wire or a wire marked with a red stripe)
is attached to pin 1.

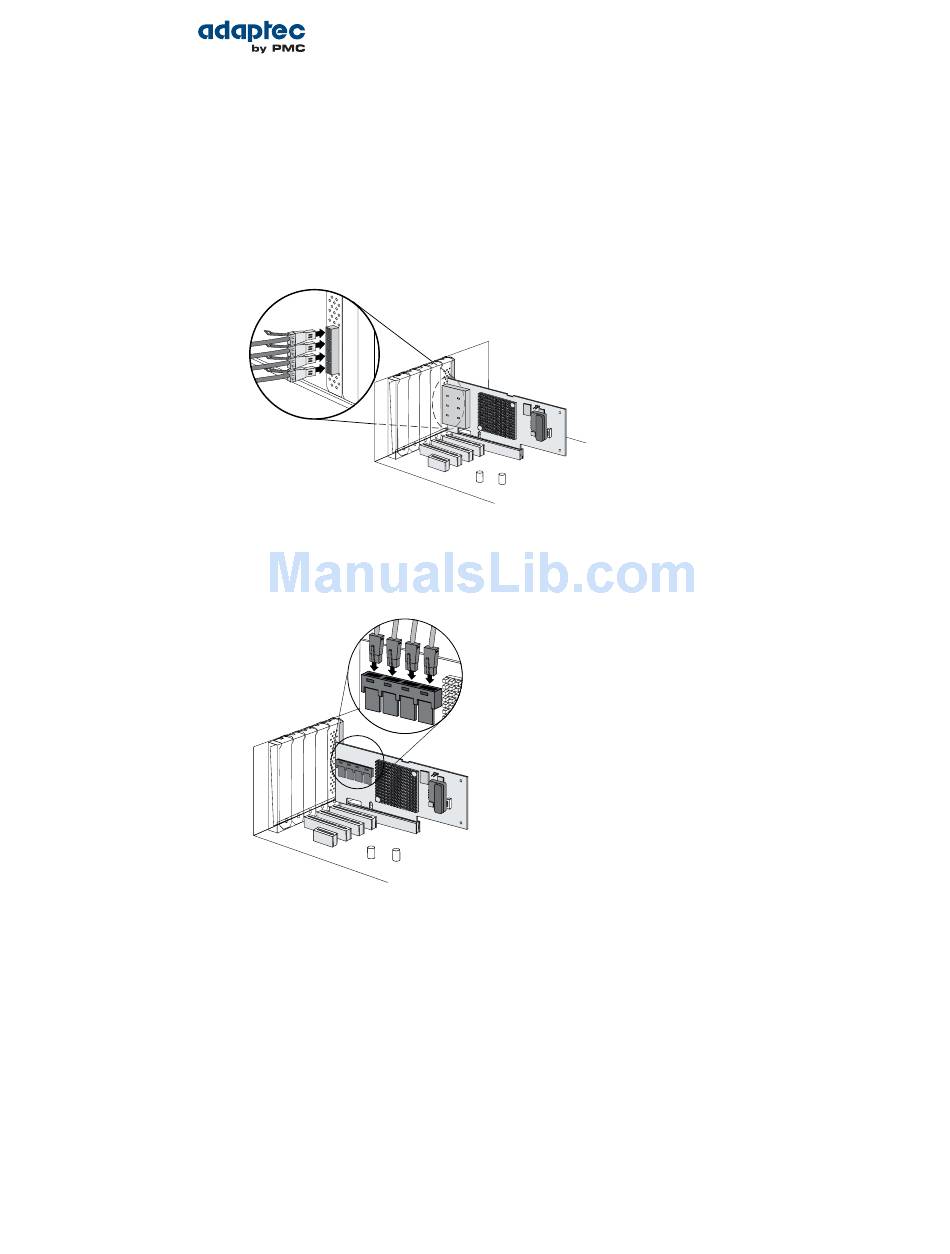

6. Connect serial cables between the HBA and internal or external disk drives, as required:
• For an HBA with external ports, connect serial cables between the HBA and external disk drives
or enclosures:
External Ports,
Front view
• For an HBA with with internal ports, connect serial cables between the HBA and internal disk
drives:
7. Close your computer cabinet, reconnect the power cord and network cables, then power up the
system.
Proprietary and Confidential to PMC-Sierra, Inc.
Document No.: CDP-00279-01-A Rev. A, Issue:
Serial Attached SCSI Host Bus Adapters Installation and User's Guide
on page 14).
