  • Page 1 ’ EFERENCE AFW-4300 400 M DAPTER...
  • Page 2 AFW-4300 User’s Reference...

  • Page 3: Table Of Contents

    Introduction 1 System Requirements 3 PC Compatible 3 Macintosh 3 Additional Requirements for Video Editing and Capturing 4 For Windows 4 For Macintosh 4 Contents of Box 5 About DV Technology 6 About 1394 Technology 7 Troubleshooting 8 Contents...

  • Page 4: Introduction

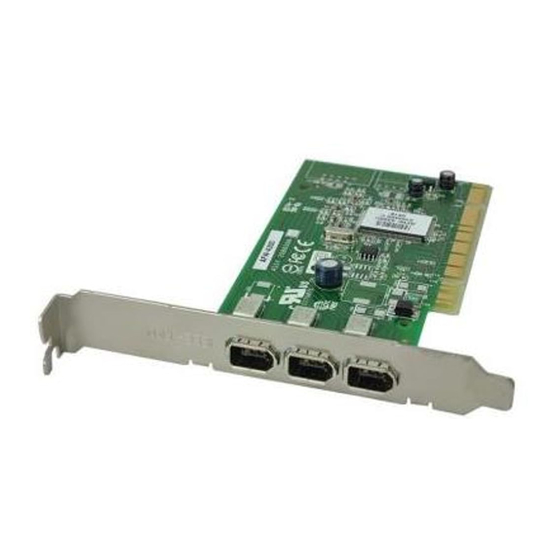

    About 1394 Technology Troubleshooting Introduction The Adaptec AFW-4300 Host Adapter (or AFW-4300) is a PCI interface board that can enable your Personal Computer with IEEE-1394 functions. With the AFW-4300, you can connect Digital Video (DV) camcorders or other devices with a 1394 digital interface to any PC compatible or Power Macintosh expansion slots.
  • Page 5 AFW-4300 User’s Reference The AFW-4300 features include: IEEE-1394-compliance Up to 400 Megabits per second (Mbps) transfer rate Three external connectors Open architecture API (OHCI Compliant) Compatibility assurance To install your AFW-4300, see the AFW-4300 Installation Guide included in your kit.

  • Page 6: System Requirements

    System Requirements The minimum system requirements for the AFW-4300 are: PC Compatible IBM-compatible PC, 266 MHz Processor or above Microsoft Windows 2000 , or Windows ME ® Available PCI slot CD-ROM or DVD-ROM drive Macintosh Mac OS 8.6 or higher...

  • Page 7: Additional Requirements For Video Editing And Capturing

    AFW-4300 User’s Reference Additional Requirements for Video Editing and Capturing 64 MB RAM (128 MB recommended) 50 MB of available hard drive space for program files and digital audio/video content Note: DV uses 250 MB per minute of capture. DV camcorder or other device equipped with 1394 interface...

  • Page 8: Contents Of Box

    Contents of Box The contents in this kit are: Adaptec AFW-4300 Host Adapter 6-to-4 pin FireWire cable AFW-4300 Hardware Installation Guide FireConnect 4300 CD containing: MGI VideoWave 4 DV editing software for Windows Links to latest Macintosh FireWire software and drivers...

  • Page 9: About Dv Technology

    AFW-4300 User’s Reference About DV Technology DV technology is a standard digital file and compression format for recording video and audio data onto a digital tape. DV uses compression to reduce the enormous size of the uncompressed video data (much like processing 30 full-screen bitmap images every second) to file sizes manageable by desktop computers.

  • Page 10: About 1394 Technology

    About 1394 Technology 1394 (also known as FireWire or i.LINK) is an international standard data transfer protocol created by Apple Computer, Inc. and ratified by the International Standards Organization as IEEE 1394. Like other data I/O protocols such as SCSI, Fibre Channel, and IDE, 1394 itself knows nothing about video, compression, or editing.

  • Page 11: Troubleshooting

    PCI slot. Check that the 1394 cable is properly connected between your AFW-4300 and the DV camcorder or other peripehrals. Check the Windows 2000 Event Log if you encounter problems loading the drivers on your Windows 2000 operating system.
  • Page 12 5. If the extensions are loaded and enabled, verify that the card is seated properly. If you are still unable to resolve a problem, see the Adaptec Web site at http://www.adaptec.com, or the Adaptec Support Knowledgebase at http://ask.adaptec.com for additional troubleshooting information.
  • Page 13 Copyright © 2000 Adaptec, Inc. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written consent of Adaptec, Inc., 691 South Milpitas Blvd., Milpitas, CA 95035.
  • Page 14 This device has been tested and found to comply with the limits for a Class B digital device, pursuant to the Australian/New Zealand standard AS/NZS 3548 set out by the Spectrum Management Agency. Adaptec, Inc. AFW-4300 Tested to Comply With FCC Standards...
  • Page 15 Canadian Compliance Statement This Class B digital apparatus meets all requirements of the Canadian Interference- Causing Equipment Regulations. Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matérial brouilleur du Canada. Japanese Compliance (Voluntary Control Council Initiative)
  • Page 16 MAY RETURN THE ENTIRE UNUSED PRODUCT FOR A FULL REFUND. (Single User, Non-Networked Applications) In return for acquiring a license to use the Adaptec software, which may include software from third party licensors and patches made available by Adaptec (“Software”), and the related documentation, you agree to the following terms and conditions: 1.
  • Page 17 3. Ownership of Software. As Licensee, you own the media upon which the software is recorded or fixed, but Adaptec and its licensors retain title and ownership of the Software recorded on the original media and all subsequent copies of the Software, regardless of the form or media in which or on which the original and other copies may exist.
  • Page 18 Agreement, in writing signed by an officer of Adaptec. You assume full responsibility for the use of the Software and agree to use the Software legally and responsibly. This Agreement shall be governed by California law, except as to copyright matters, which are covered by Federal law.
  • Page 19 Limited 5-Year Warranty 1. Adaptec, Inc. (“Adaptec”) warrants to the purchaser of this product that it will be free from defects in material and workmanship for a period of five (5) years from the date of purchase. If the product should become defective within the warranty period, Adaptec, at its option, will repair or replace the product, or refund the purchaser’s purchase price for the product, provided it is delivered at the...
  • Page 20 7. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR CONSUMER PRODUCTS, AND SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION OR EXCLUSIONS MAY NOT APPLY TO YOU. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
  • Page 21 Adaptec, Inc. 691 South Milpitas Boulevard Milpitas, CA 95035 © 2000 Adaptec, Inc. All rights reserved. Adaptec and the Adaptec logo are trademarks of Adaptec, Inc. which may be registered in some jurisdictions. SOURCE NUMBER: 512723-00, Ver. AA JG 11/00...
