Installing the Host Bus Adapter

This section describes how to install the Adaptec Host Bus Adapter into your computer cabinet or server.
Adaptec Host Bus Adapters come in two configurations:
• Adapters with internal connectivity
• Adapters with external connectivity
Follow the steps below to install your HBA and connect your internal or external storage devices.
Caution: Be sure to handle the adapter by its bracket or edges only.
1. Turn off your computer and disconnect the power cord and any network cables. Open the cabinet,
following the manufacturer's instructions.

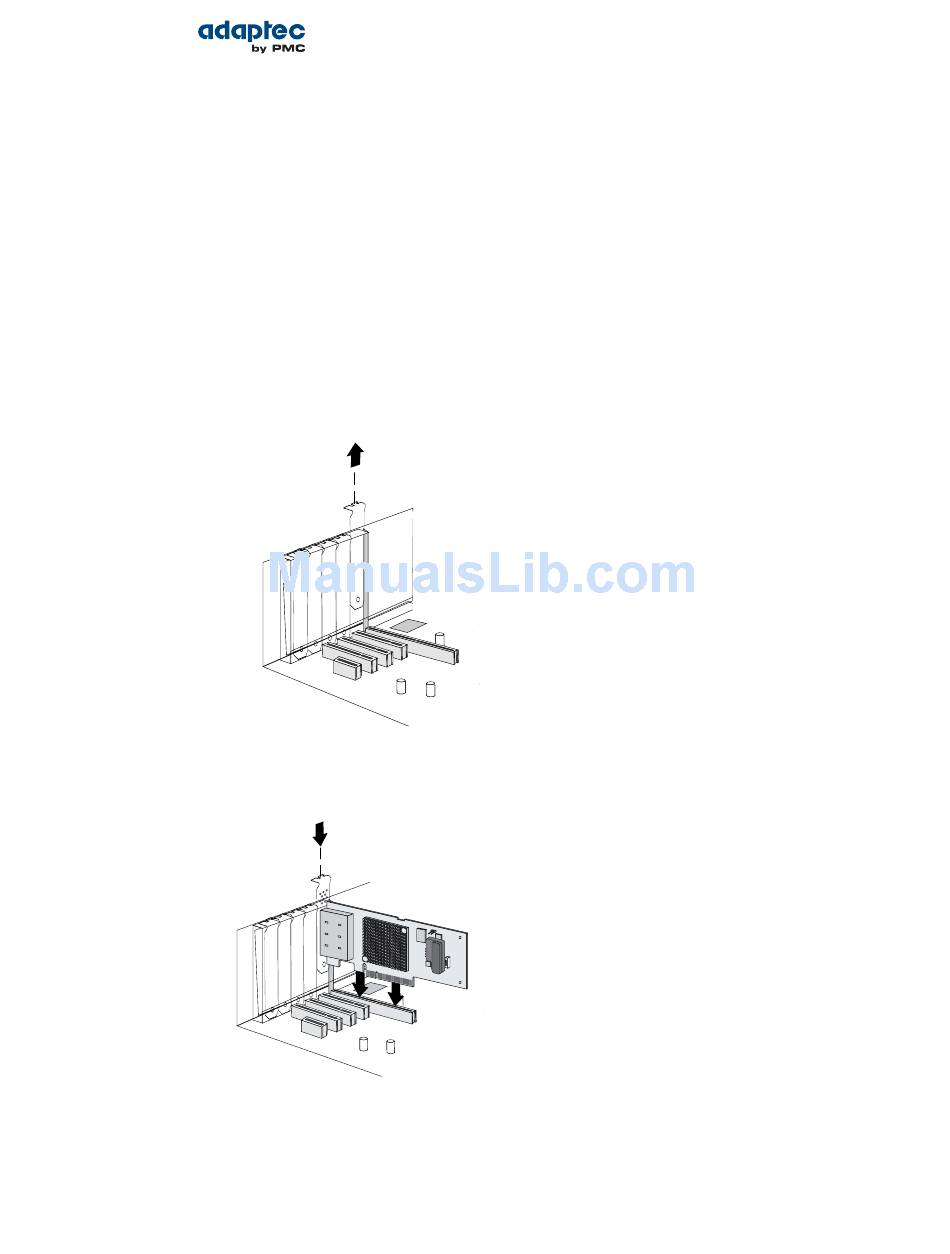

2. Select an available PCIe expansion slot that's compatible with your HBA and remove the slot cover,
as shown in the figure below. (To check PCIe bus compatibility of your HBA, see
Bus Adapter on page 14.)
Caution: Touch a grounded metal object before handling the adapter.
3. Insert the HBA into the expansion slot and press down gently but firmly until it clicks into place.
When installed properly, the adapter should appear level with the expansion slot.
4. Secure the bracket in the expansion slot, using the retention device (for instance, a screw or lever)
supplied with your computer.
