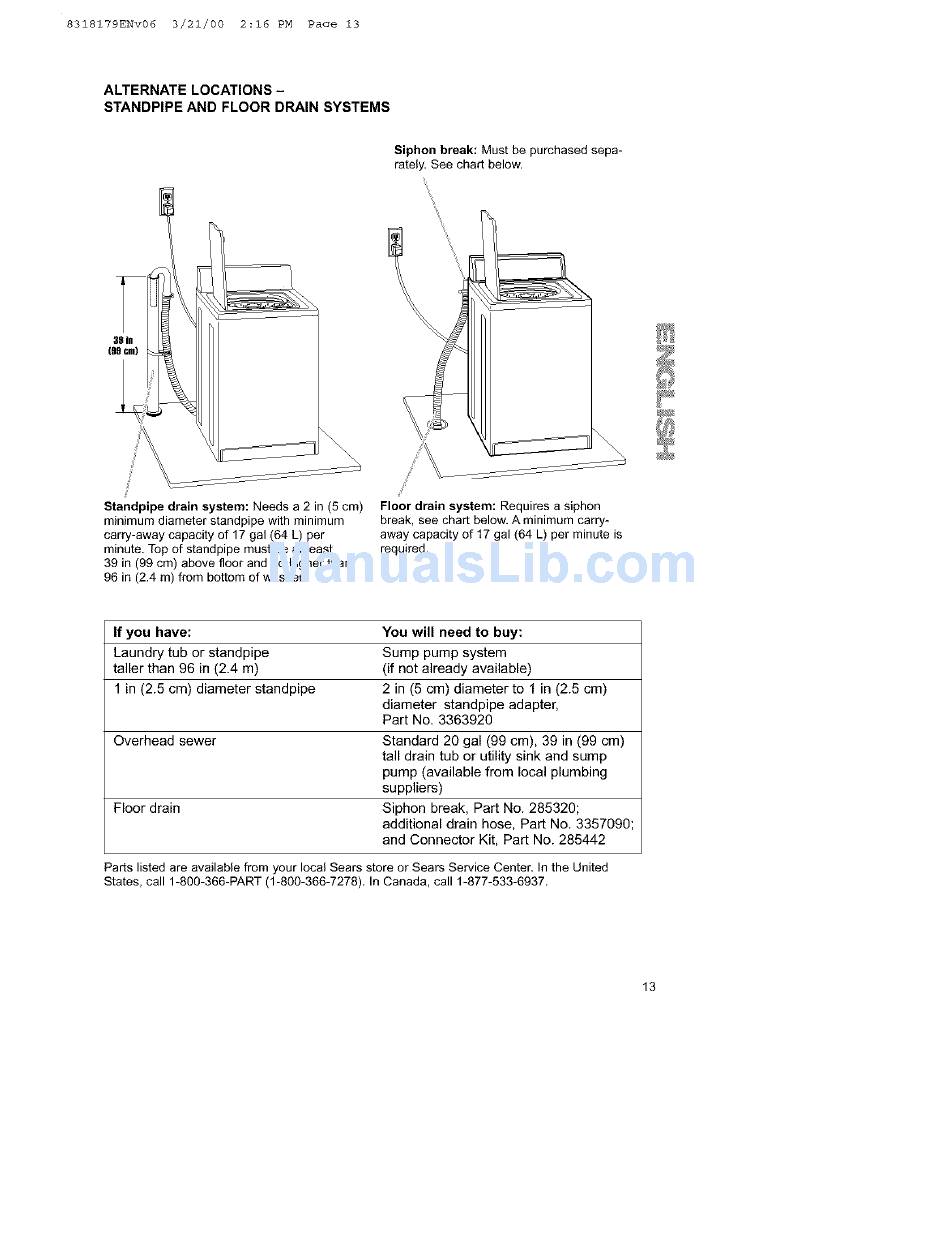

ALTERNATE LOCATIONS -
STANDPIPE AND FLOOR DRAIN SYSTEMS
Siphon break: Must be purchased sepa-
rately. See chart below.
38 in
(99 cm)
Standpipe drain system: Needs a 2 in (5 cm)
minimum diameter standpipe with minimum
carry-away capacity of 17 gal (64 L) per
minute. Top of standpipe must be at least
39 in (99 cm) above floor and no higher than
96 in (2.4 m) from bottom of washer.
\
/
Floor drain system: Requires a siphon
break, see chart below. A minimum carry-
away capacity of 17 gal (64 L) per minute is
required.
If you have: You will need to buy:
Laundry tub or standpipe Sump pump system
taller than 96 in (2.4 m) (if not already available)
1 in (2.5 cm) diameter standpipe 2 in (5 cm) diameter to 1 in (2.5 cm)
diameter standpipe adapter,
Part No. 3363920
Overhead sewer Standard 20 gal (99 cm), 39 in (99 cm)
tall drain tub or utility sink and sump
pump (available from local plumbing
suppliers)
Floor drain Siphon break, Part No. 285320;
additional drain hose, Part No. 3357090;
and Connector Kit, Part No. 285442
Parts listed are available from your local Sears store or Sears Service Center. in the United
States, call 1-800-366-PART (1-800-366-7278). In Canada, call 1-877-533-6937.
