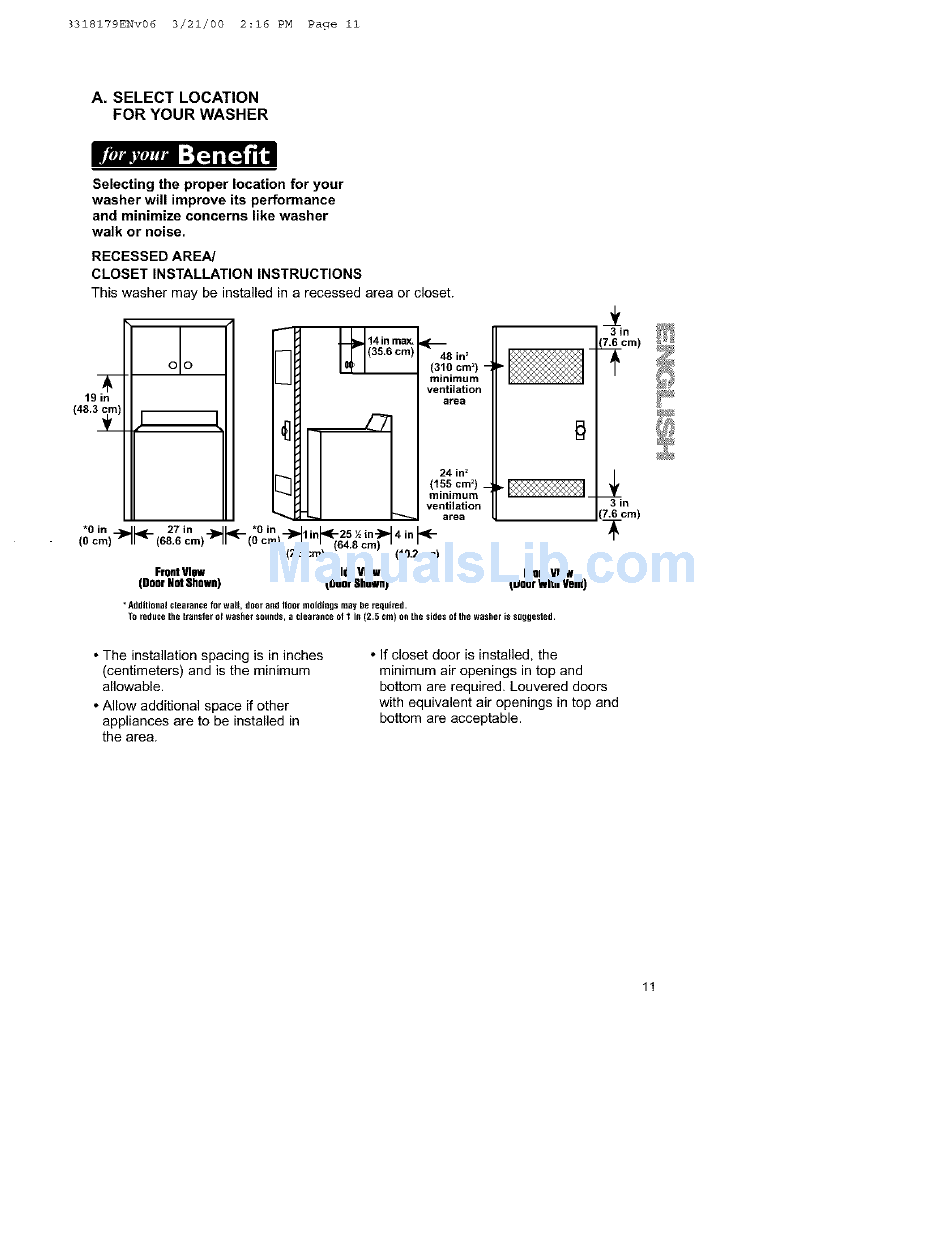

A. SELECT LOCATION
FOR YOUR WASHER
Selecting the proper location for your
washer will improve its performance
and minimize concerns like washer
walk or noise.
RECESSED AREA]
CLOSET INSTALLATION INSTRUCTIONS
This washer may be installed in a recessed area or closet.
0 0 14 in max.
(310 cm 2)
_-- minimum
ventilation
19 in area
(48.3 _m) I_ 24in2
(t 55 cm2) _
minimum
ventilation
area
*0 in 27 in *0 in 1 in 25 ½ in 4 in
(2.5 cm) " '" (10.2 cm)
Front V iew Side View
(Door N ot S hown) (Dear S hown)
FrontView
(DoorWithVent)
3 in
(_cm)
* Additional clearance for wall, door and floor moldings may be required.
To reduce the transfer ol washe_ sonnds, a clearance of I in (2.5 cm) on the sides ol the washer is suggested.
• The installation spacing is in inches
(centimeters) and is the minimum
allowable.
•Allow additional space if other
appliances are to be installed in
the area.
• If closet door is installed, the
minimum air openings in top and
bottom are required. Louvered doors
with equivalent air openings in top and
bottom are acceptable.
