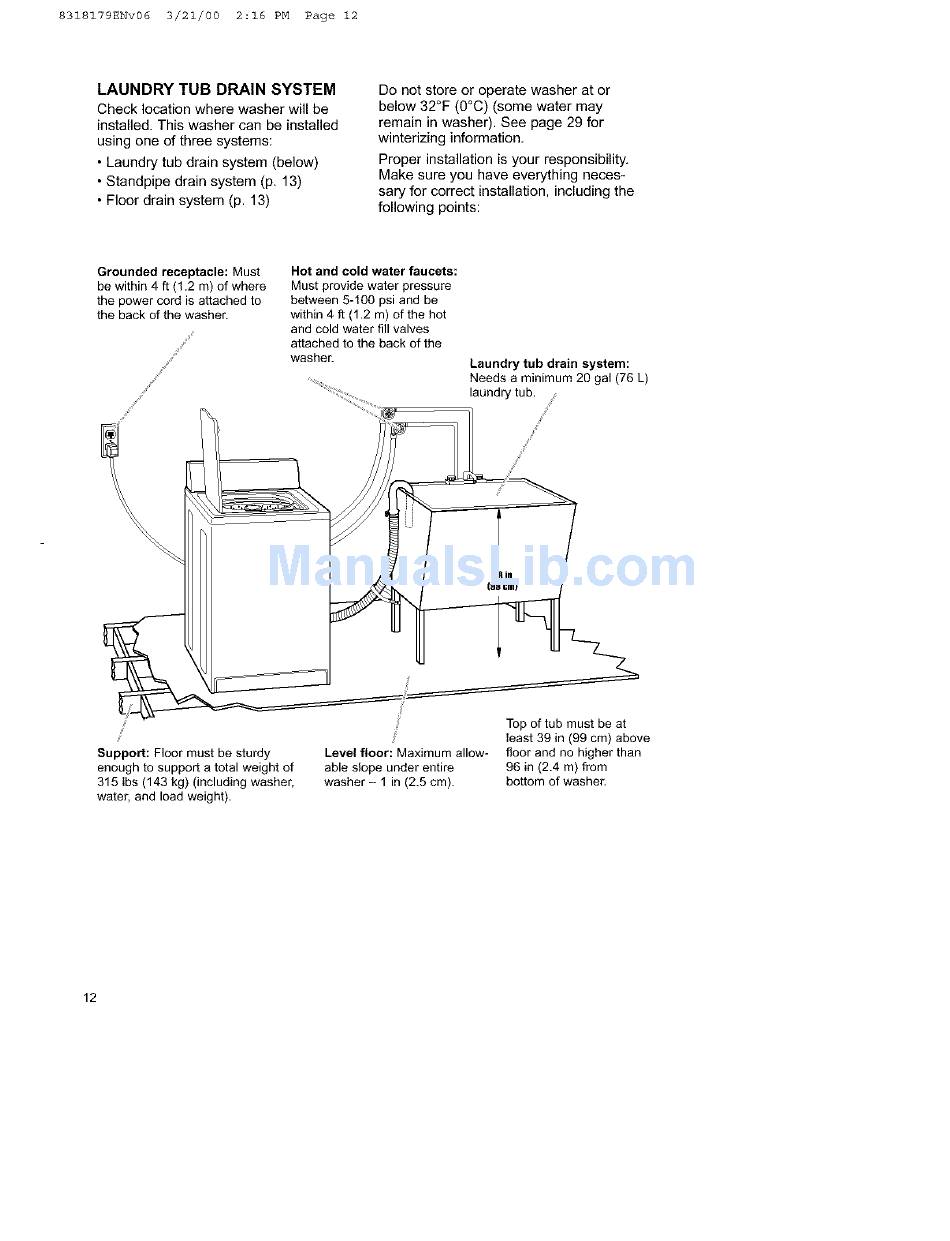

LAUNDRY TUB DRAIN SYSTEM
Check location where washer will be
installed. This washer can be installed
using one of three systems:
• Laundry tub drain system (below)
• Standpipe drain system (p. 13)
• Floor drain system (p. 13)
Do not store or operate washer at or
below 32°F (0°C) (some water may
remain in washer). See page 29 for
winterizing information.
Proper installation is your responsibility,
Make sure you have everything neces-
sary for correct installation, including the
following points:
Grounded receptacle: Must
be within 4 ft (1.2 m) of where
the power cord is attached to
the back of the washer.
S
S
Hot and cold water faucets:
Must provide water pressure
between 5-100 psi and be
within 4 ft (1.2 m) of the hot
and cold water fill valves
attached to the back of the
washer.
Laundry tub drain system:
Needs a minimum 20 gal (76 L)
<
Support: Floor must be sturdy
enough to support a total weight of
315 Ibs (143 kg) (including washer,
water, and load weight).
Level floor: Maximum allow-
able slope under entire
washer - 1 in (2.5 cm).
Top of tub must be at
least 39 in (99 cm) above
leer and no higher than
96 in (2.4 m) from
bottom of washer.
