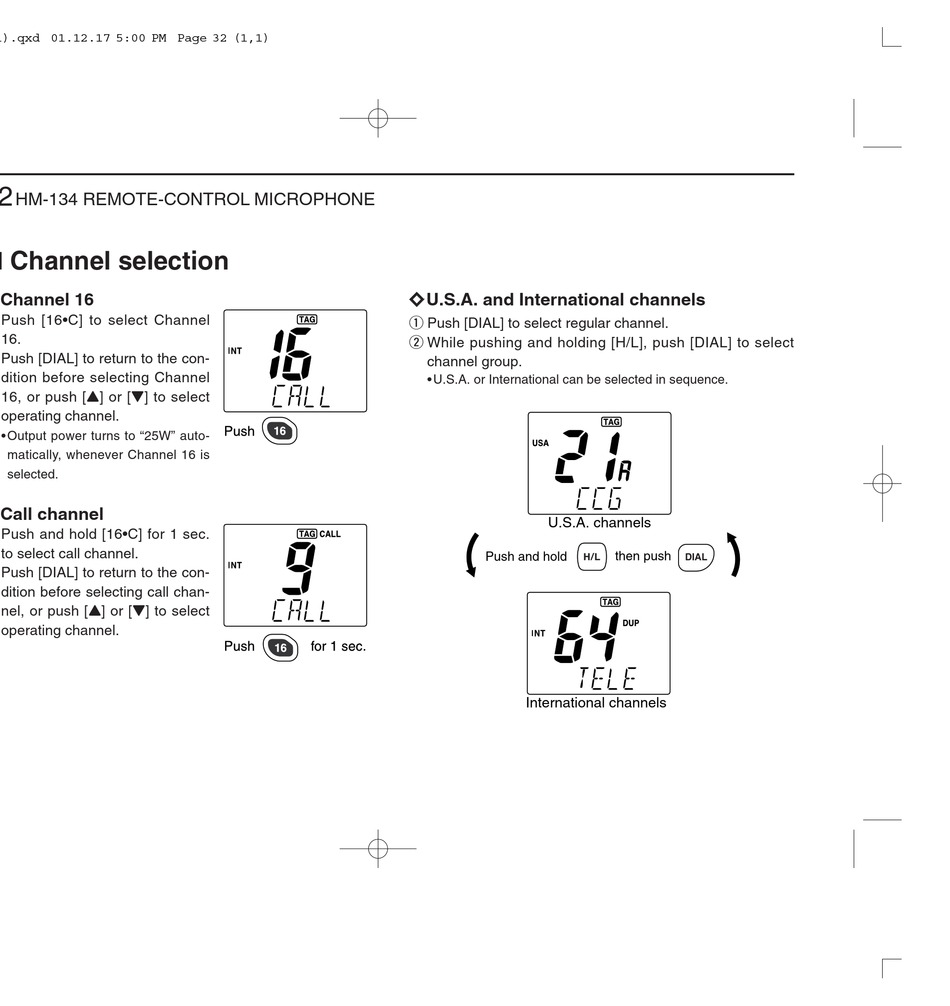

I Channel Selection - Icom IC-M503 Insrtuction Manual

12
HM-134 REMOTE-CONTROL MICROPHONE

I Channel selection

ï ï Channel 16
q Push [16•C] to select Channel
16.
w Push [DIAL] to return to the con-
dition before selecting Channel
16, or push [Y] or [Z] to select
operating channel.
• Output power turns to "25W" auto-
matically, whenever Channel 16 is
selected.
ï ï Call channel
q Push and hold [16•C] for 1 sec.
to select call channel.
w Push [DIAL] to return to the con-
dition before selecting call chan-
nel, or push [Y] or [Z] to select
operating channel.
32
ï ï U.S.A. and International channels
q Push [DIAL] to select regular channel.
w While pushing and holding [H/L], push [DIAL] to select
channel group.
• U.S.A. or International can be selected in sequence.
U.S.A. channels
Push and hold
International channels
then push
DIAL
