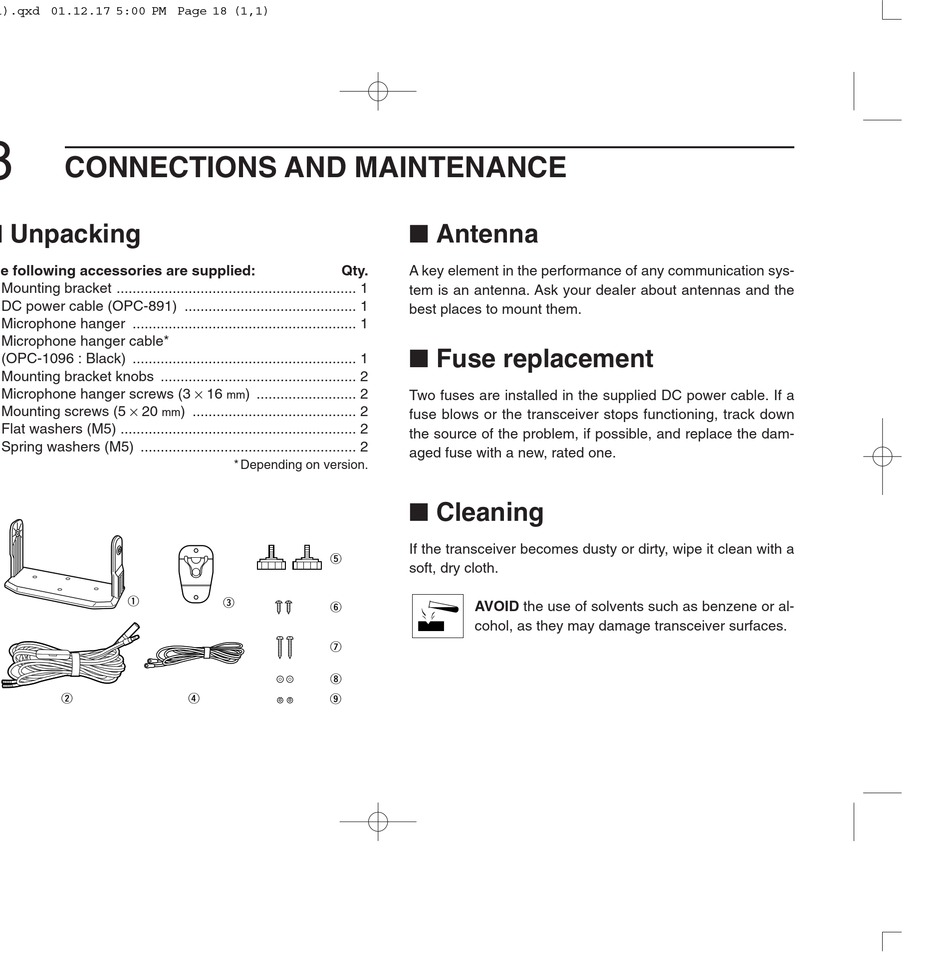

CONNECTIONS AND MAINTENANCE

I Unpacking

The following accessories are supplied:
q Mounting bracket ............................................................ 1
w DC power cable (OPC-891) ........................................... 1
e Microphone hanger ........................................................ 1
r Microphone hanger cable*
(OPC-1096 : Black) ........................................................ 1
t Mounting bracket knobs ................................................. 2
y Microphone hanger screws (3 × 16
u Mounting screws (5 × 20
i Flat washers (M5) ........................................................... 2
o Spring washers (M5) ...................................................... 2
w
18
) ......................... 2
mm
) ......................................... 2
mm
* Depending on version.
q
e
r

I Antenna

Qty. A key element in the performance of any communication sys-
tem is an antenna. Ask your dealer about antennas and the
best places to mount them.

I Fuse replacement

Two fuses are installed in the supplied DC power cable. If a
fuse blows or the transceiver stops functioning, track down
the source of the problem, if possible, and replace the dam-
aged fuse with a new, rated one.

I Cleaning

If the transceiver becomes dusty or dirty, wipe it clean with a
t
soft, dry cloth.
AVOID the use of solvents such as benzene or al-
y
cohol, as they may damage transceiver surfaces.
i
o
