CONNECTIONS AND MAINTENANCE

I Microphone hanger

Rest the supplied microphone on the hanger when not in use.

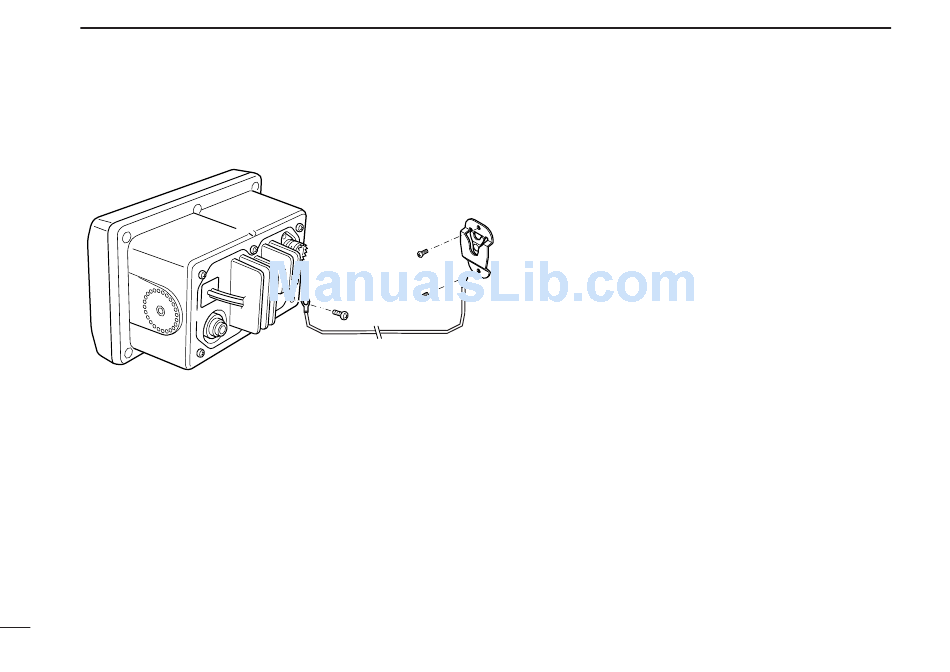

Connect the OPC-1096* to the transceivers chassis and mi-
crophone hanger to use the microphone hanger function.
• Tighten the screw at fixing torque 0.7 N •m (6.9 kg•m).
• If the microphone hanger function is used, Channel 16 is se-
lected automatically when the supplied microphone is rested
on the hanger.
20
OPC-1096
* Depending on version.
