13

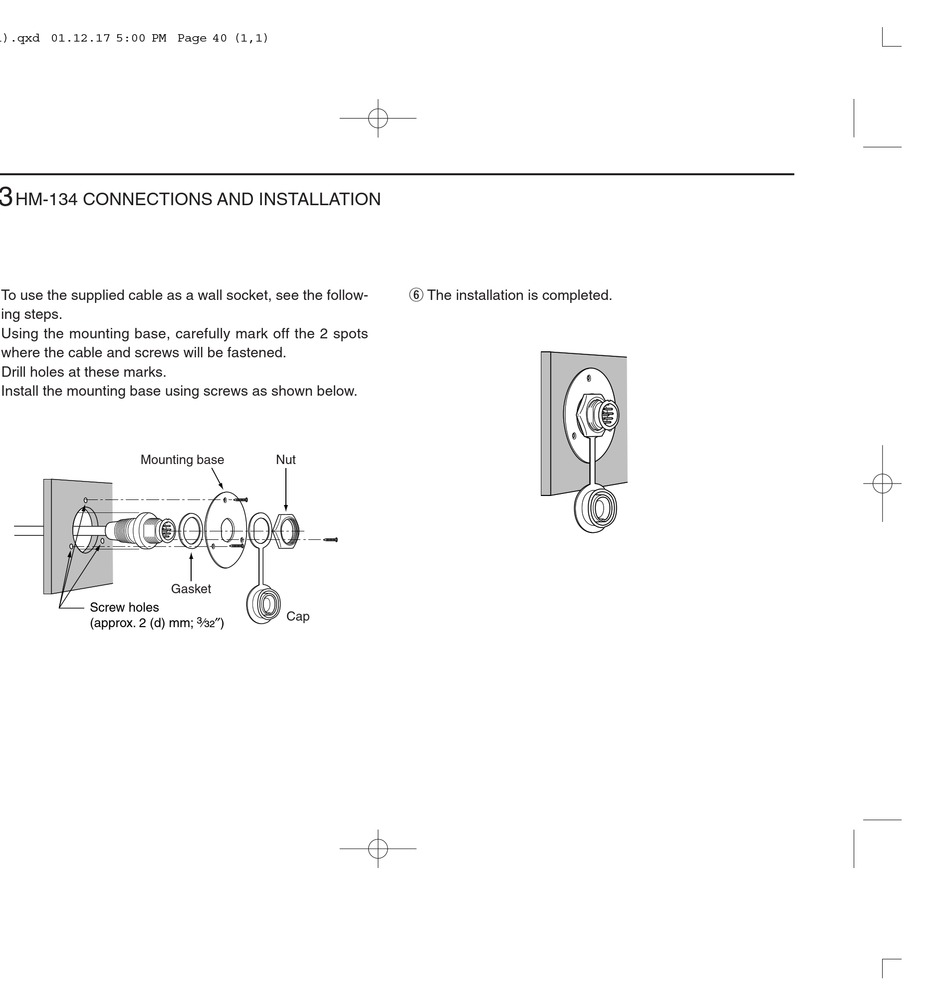

HM-134 CONNECTIONS AND INSTALLATION
w To use the supplied cable as a wall socket, see the follow-
ing steps.
e Using the mounting base, carefully mark off the 2 spots
where the cable and screws will be fastened.
r Drill holes at these marks.
t Install the mounting base using screws as shown below.
Screw holes
(approx. 2 (d) mm;
40
Mounting base Nut
Gasket
Cap
")
3
⁄
32
y The installation is completed.
