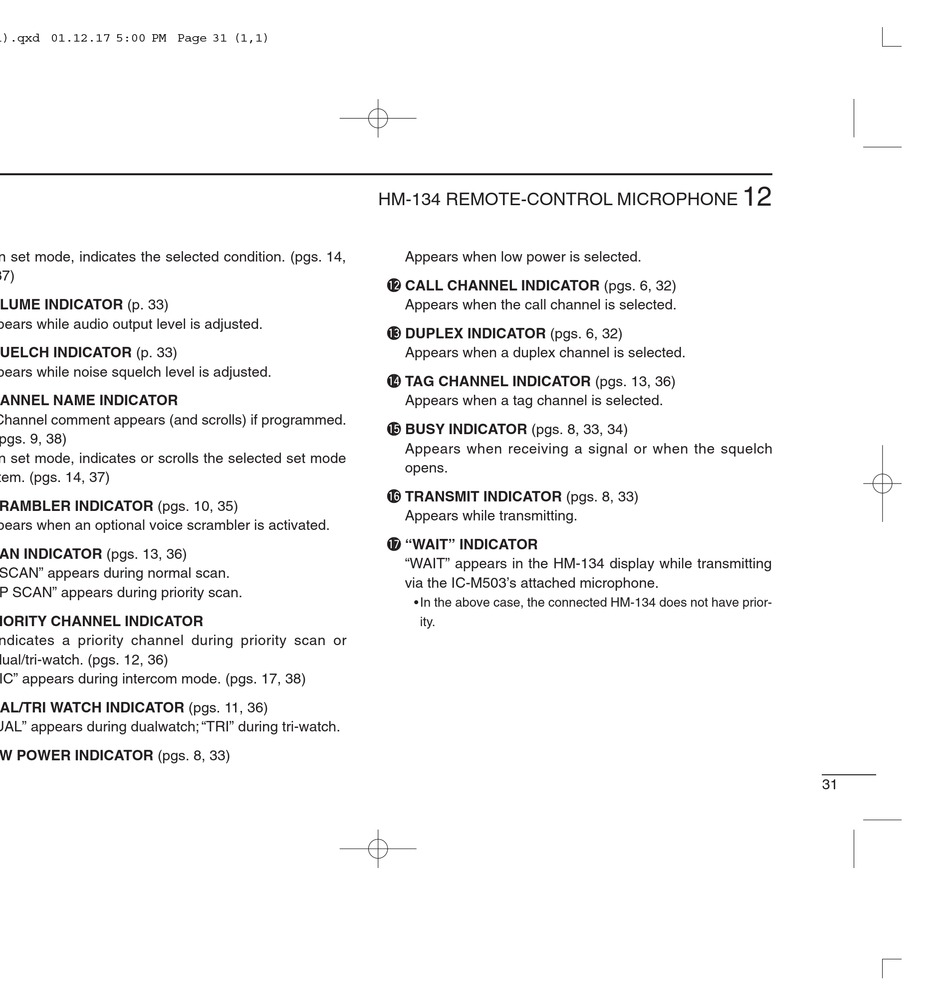

Icom IC-M503 Insrtuction Manual page 35

➥ In set mode, indicates the selected condition. (pgs. 14,
37)
r VOLUME INDICATOR (p. 33)
Appears while audio output level is adjusted.
t SQUELCH INDICATOR (p. 33)
Appears while noise squelch level is adjusted.
y CHANNEL NAME INDICATOR
➥ Channel comment appears (and scrolls) if programmed.
(pgs. 9, 38)
➥ In set mode, indicates or scrolls the selected set mode
item. (pgs. 14, 37)
u SCRAMBLER INDICATOR (pgs. 10, 35)
Appears when an optional voice scrambler is activated.
i SCAN INDICATOR (pgs. 13, 36)
➥ "SCAN" appears during normal scan.
➥ "P SCAN" appears during priority scan.
o PRIORITY CHANNEL INDICATOR
➥ Indicates a priority channel during priority scan or
dual/tri-watch. (pgs. 12, 36)
➥ "IC" appears during intercom mode. (pgs. 17, 38)
!0 DUAL/TRI WATCH INDICATOR (pgs. 11, 36)
"DUAL" appears during dualwatch; "TRI" during tri-watch.
!1 LOW POWER INDICATOR (pgs. 8, 33)
HM-134 REMOTE-CONTROL MICROPHONE
Appears when low power is selected.
!2 CALL CHANNEL INDICATOR (pgs. 6, 32)
Appears when the call channel is selected.
!3 DUPLEX INDICATOR (pgs. 6, 32)
Appears when a duplex channel is selected.
!4 TAG CHANNEL INDICATOR (pgs. 13, 36)
Appears when a tag channel is selected.
!5 BUSY INDICATOR (pgs. 8, 33, 34)
Appears when receiving a signal or when the squelch
opens.
!6 TRANSMIT INDICATOR (pgs. 8, 33)
Appears while transmitting.
!7 "WAIT" INDICATOR
"WAIT" appears in the HM-134 display while transmitting
via the IC-M503's attached microphone.
• In the above case, the connected HM-134 does not have prior-
ity.
