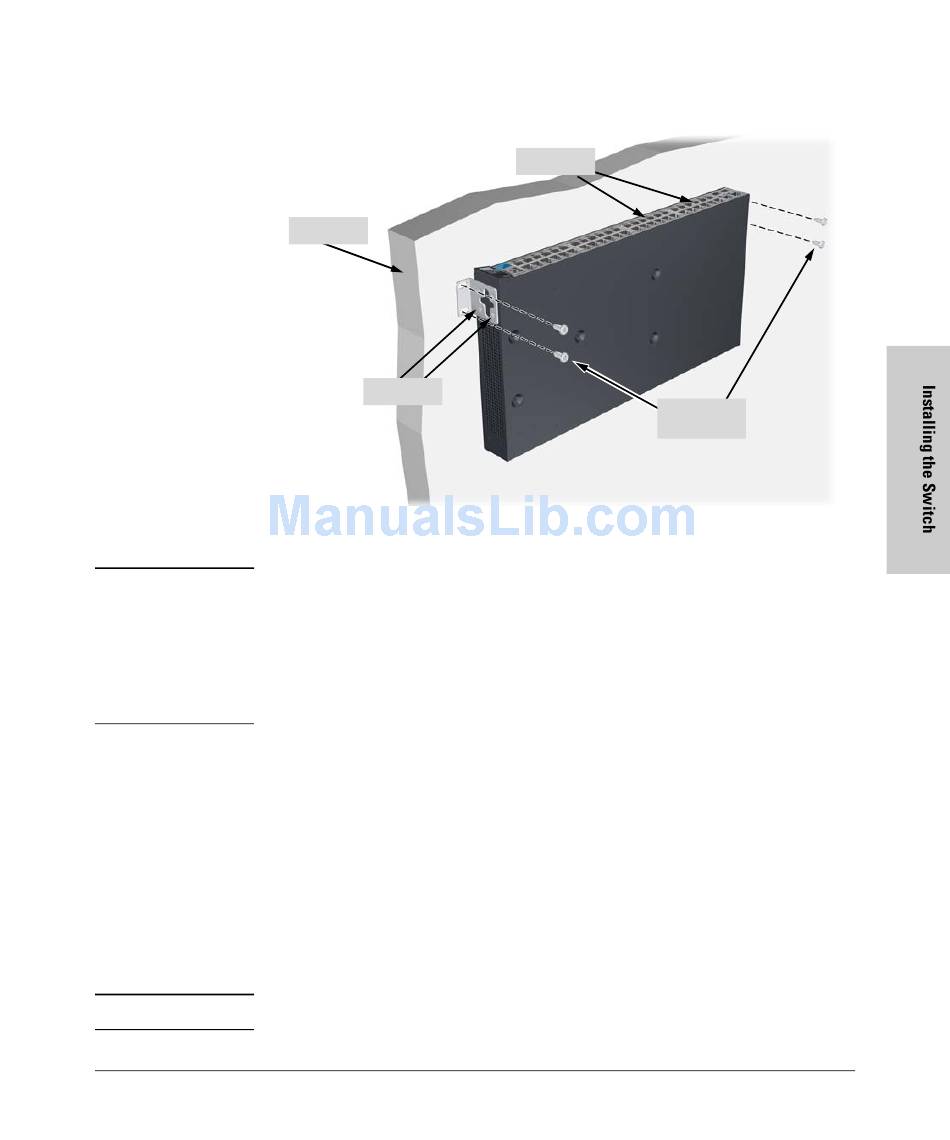

Figure 2-8. Horizontal wall mounting
C a u t i o n
The J9088A 48-port, non-PWR switch can be wall mounted with either the
RJ-45 ports side up or down in the horizontal orientation. A vertical wall mount
orientation is not supported.
The J9085A 24-port, non-PWR switch can be wall mounted with the RJ-45 port
side facing down only in the horizontal orientation. A vertical wall mount
orientation is not supported.

Horizontal Surface Mounting

Place the switch on a table or other horizontal surface. The switch comes with
rubber feet in the accessory kit that can be used to help keep the switch from
sliding on the surface.
Attach the rubber feet to the four corners on the bottom of the switch within
the embossed angled lines. Use a sturdy surface in an uncluttered area. You
may want to secure the networking cables and switch power cord to the table
leg or other part of the surface structure to help prevent tripping over the
cords.
C a u t i o n
Ensure the air flow is not restricted around the sides and back of the switch.
Wall
M4 screws
RJ-45 Ports
5/8-inch
wood screws
Installing the Switch
Installation Procedures
2-15
