Audio Connections

D-Command monitoring is based on the XMON analog interface, which is remotely controlled from the D-Command monitor-
ing section. All external analog audio inputs and outputs for control room monitoring and studio communication are connected
to the XMON interface.
XMON provides 18V phantom for its three external mic inputs (External Talkback Mic, Listen Mic 1, Listen Mic 2).
All audio connections are made with standard DB-25 connectors. The back panel of the XMON is shown in Figure 6.
Cue Inputs
Cue Outputs

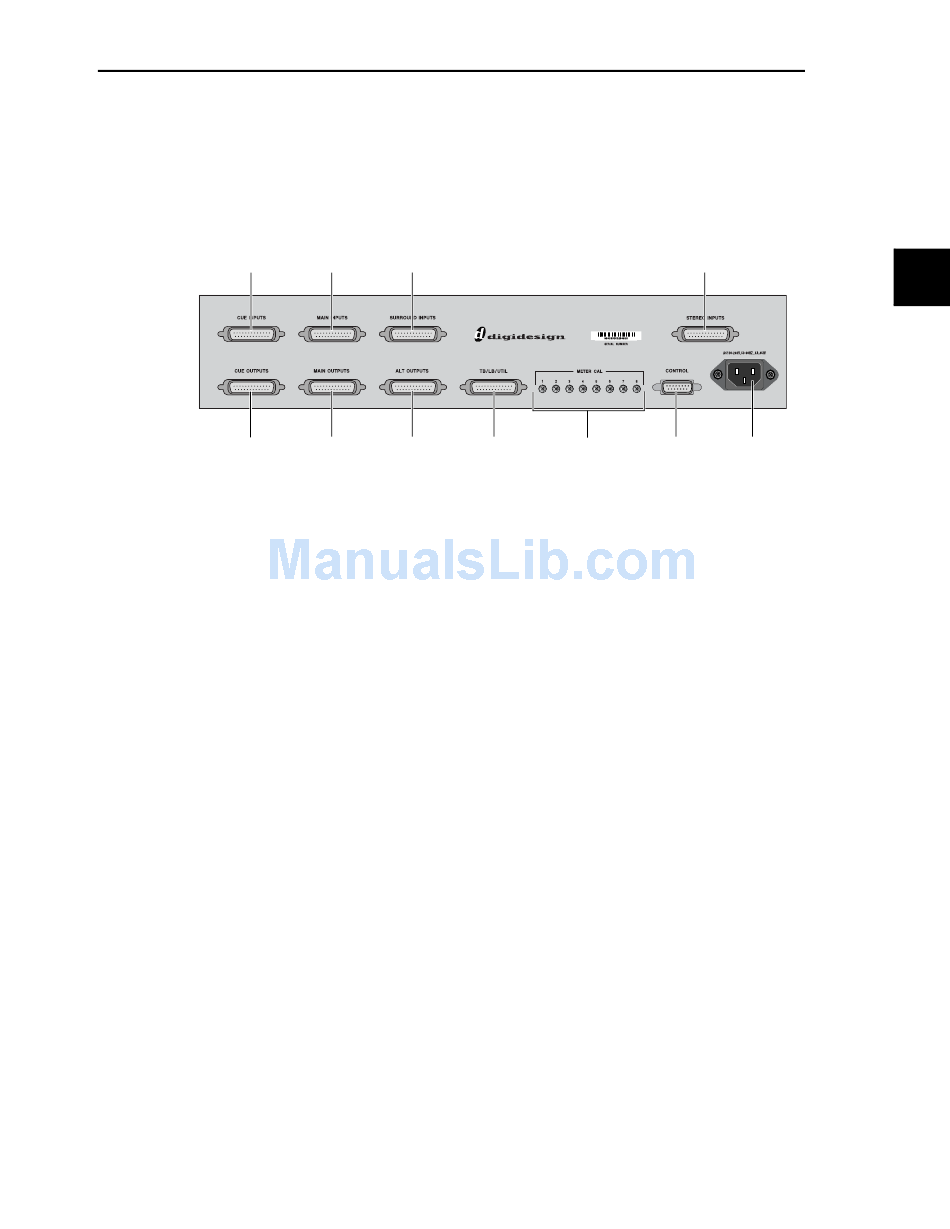

Figure 6. XMON back panel

XMON Monitoring System Connection

D-Command connects to XMON with a single 15-pin XMON cable. A 50-foot (15.25 m) cable is included with the D-Command
Main Unit. The system supports up to an 80-foot (24.5 m) cable.

To connect the XMON to D-Command:

Connect the included AC power cord to the back panel of the XMON and to a power source. A surge protected power source
1
is highly recommended.
Connect one end of the included XMON cable to the Control Surface port on your XMON unit, and the other end to the 15-pin
2
XMON Monitoring System connector on the back panel of the D-Command Unit.
Main Inputs Surround Inputs
Main Outputs Alt Outputs Talkback/
Listenback/
Utility
Stereo Inputs
Meter Calibration Control Surface
Screws
Chapter 4: Connecting D-Command 19
AC Power
