Appendix B: Audio Connections and Pinouts

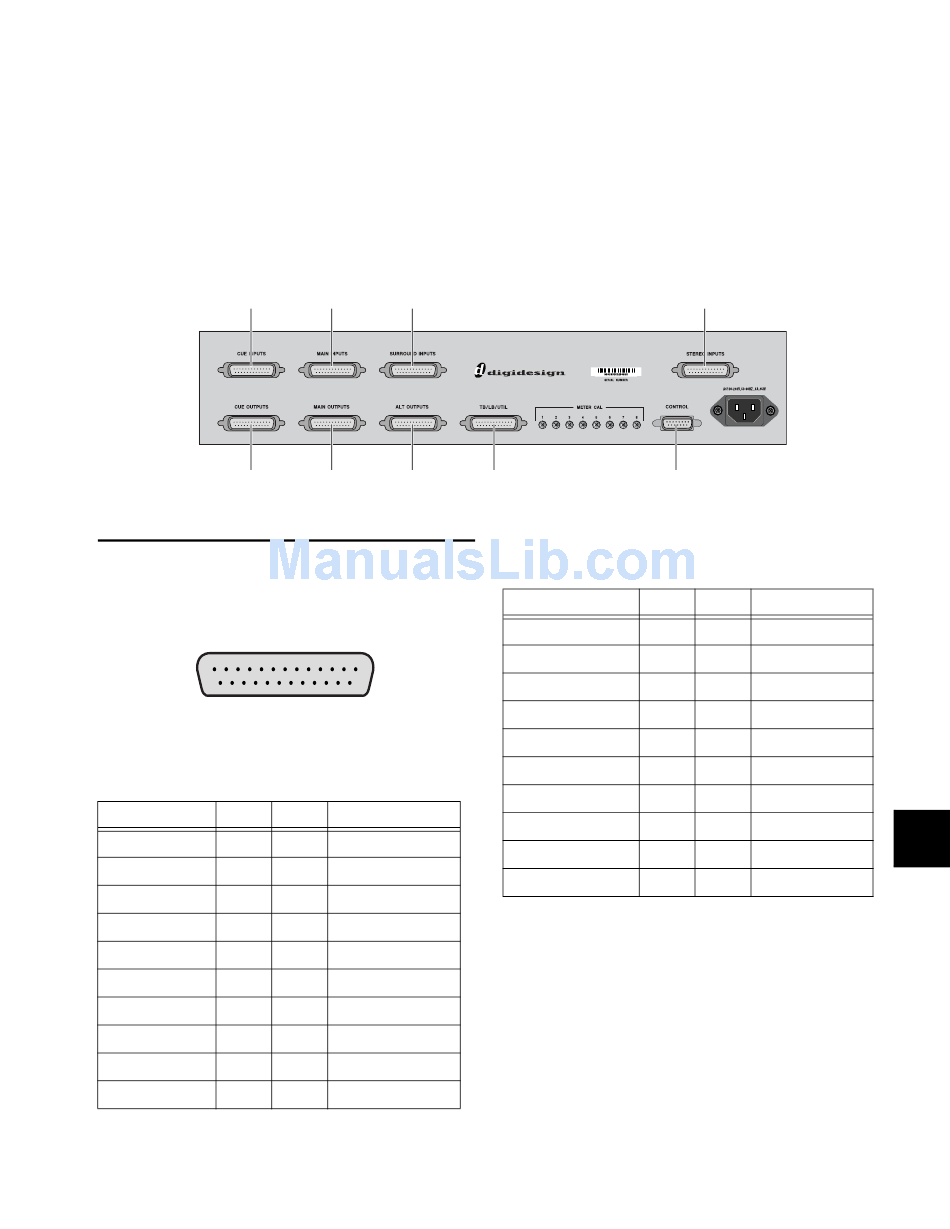

All external D-Command audio connections are made to the back panel of the XMON interface, shown below. All audio connec-
tors are standard female DB-25 connectors. The connector for communication with D-Command is a 15-pin female connector.

Cue Inputs

Cue Outputs
XMON back panel connectors

25-Pin Female Connector Pinouts

All XMON DB-25 connector pinouts conform to the pin num-
bering scheme shown below.
13
25
DB-25 Connector (user view)
Cue Inputs
Cue Inputs
Signal Name Hot (+)
Cue Input 1 (Left) 24
Cue Input 1 (Right) 10
Cue Input 2 (Left) 21
Cue Input 2 (Right) 7
[Not Connected] 18
[Not Connected] 4
[Not Connected] 15
[Not Connected] 1
GND
SHIELD GND

Main Inputs

Surround Inputs
Main Outputs Alt Outputs Talkback/Listenback/Utility
1
14
Cold (–) Ground (shield)
12 25
23 11
9 22
20 8
6 19
17 5
3 16
14 2
13
connector housing
Stereo Inputs
D-Command connector
Main Inputs
Main Inputs
Signal Name Hot (+)
Main Input 1 (L) 24
[Main Input 2 (Lc)]* 10
Main Input 3 (C) 21
[Main Input 4 (Rc)]* 7
Main Input 5 (R) 18
Main Input 6 (Ls) 4
Main Input 7 (Rs) 15
Main Input 8 (LFE) 1
GND
SHIELD GND
* Main Inputs 2 and 4 are active on XMON, but the corre-
sponding Lc and Rc outputs cannot be controlled indepen-
dently from the D-Command monitor section.
Appendix B: Audio Connections and Pinouts 119
Cold (–) Ground (shield)
12 25
23 11
9 22
20 8
6 19
17 5
3 16
14 2
13
connector housing
