Low Filter and High-Pass Filter Controls

Notch indicator
Low Filter
indicator
Filter In switch

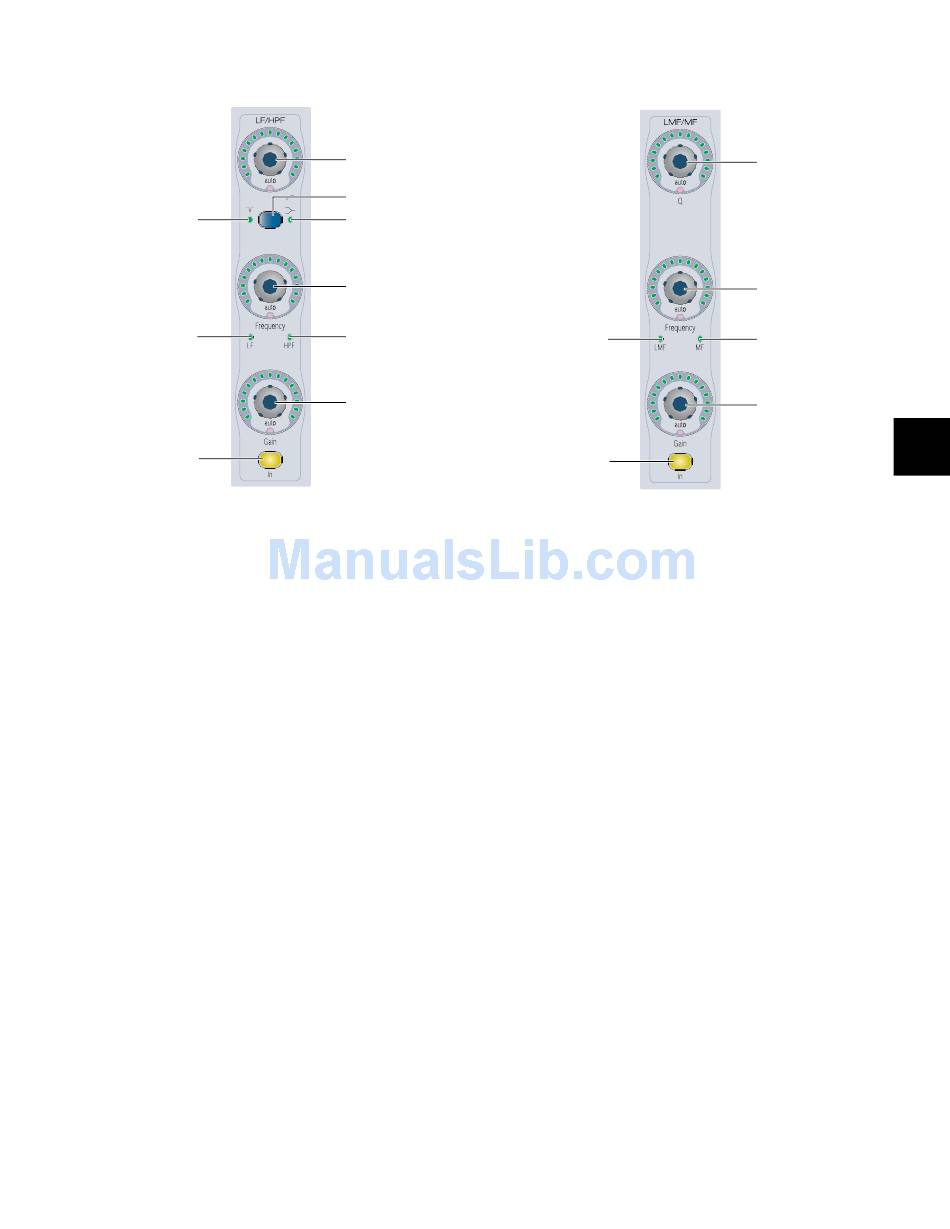

Low Filter and High-Pass Filter controls in the EQ section
Q Encoder
The top encoder controls the Q of the selected filter. The Auto
indicator under the encoder knob lights when the parameter
is enabled for automation.

Notch/Shape Switches and Indicator

The Notch/Shape switch let you switch between the two filter
types when they are available. The indicators on either side of
the switch light to show which type of filter is active.

Frequency Encoder

The middle encoder controls the filter frequency for the cur-
rently selected band. When the filter is a notch filter, the en-
coder controls the center frequency. When the selected filter
is a low-pass filter, the encoder controls the cutoff frequency.
The Auto indicator under the encoder knob lights when the
parameter is enabled for automation.
Gain Encoder
The bottom encoder controls the gain for each band. The Auto
indicator under the encoder knob lights when the parameter
is enabled for automation.
Filter In Switch
The Filter In switch lets you engage or bypass the correspond-
ing EQ band in the plug-in.

Low-Mid Filter and Mid Filter Controls

Q encoder
Notch/Shape switch
Shelf indicator
Frequency encoder
High-Pass Filter
indicator
Gain
encoder
Low-Mid Filter and Mid Filter controls in the EQ section
Q Encoder
The top encoder controls the Q of the selected filter. The Auto
indicator under the encoder knob lights when the parameter
is enabled for automation.
Frequency Encoder
The middle encoder controls the center frequency for the cur-
rently selected band. The Auto indicator under the encoder
knob lights when the parameter is enabled for automation.
Gain Encoders
The bottom encoder controls the gain for each band. The Auto
indicator under the encoder knob lights when the parameter
is enabled for automation.
Filter In Switch
The Filter In switch lets you engage or bypass the correspond-
ing EQ band in the plug-in.
Low-Mid Filter
indicator
Filter In switch
Q encoder
Frequency encoder
Mid Filter
indicator
Gain
encoder
