4. Grasp small end of squeegee and pull it through the barrel; it will pull the paint and
shell fragments out of the barrel.
5. You can now tilt the receiver back up to let a ball fall into the chamber and pump it
closed.

Field Disassembly

• Do not disassemble this marker while it is pressurized.
• Do not pressurize a partially assembled marker.
1. Perform the marker unloading instructions on page 9.
2. Perform the air supply removal instructions on page 11.
3. Using the supplied 3/16 allen wrench, loosen the barrel bolt at the front of the receiver
(item 16 on page 20).
4. The barrel, forearm grip, and front bolt will remove as an assembly by pulling straight
out on the forearm grip.
5. Tip the receiver forward to remove the bolt/hammer spring (item 18 on page 20), and
the hammer assembly (items 19, 20, 21, and 22 on page 20). You will have to pull
the trigger and tap the front of the receiver to get these parts out. The valve assembly
remains in the receiver.
This is the only disassembly required to perform periodic cleaning.

Re-assembly

Re-assembly is in the
reverse order of field
stripping. Be sure to
insert the hammer
assembly facing with
the "hook" of the sear
towards the front of
the receiver as shown
in Figure 6.
Figures 7 through
9 show progressive
steps of the re-
assembly procedure.

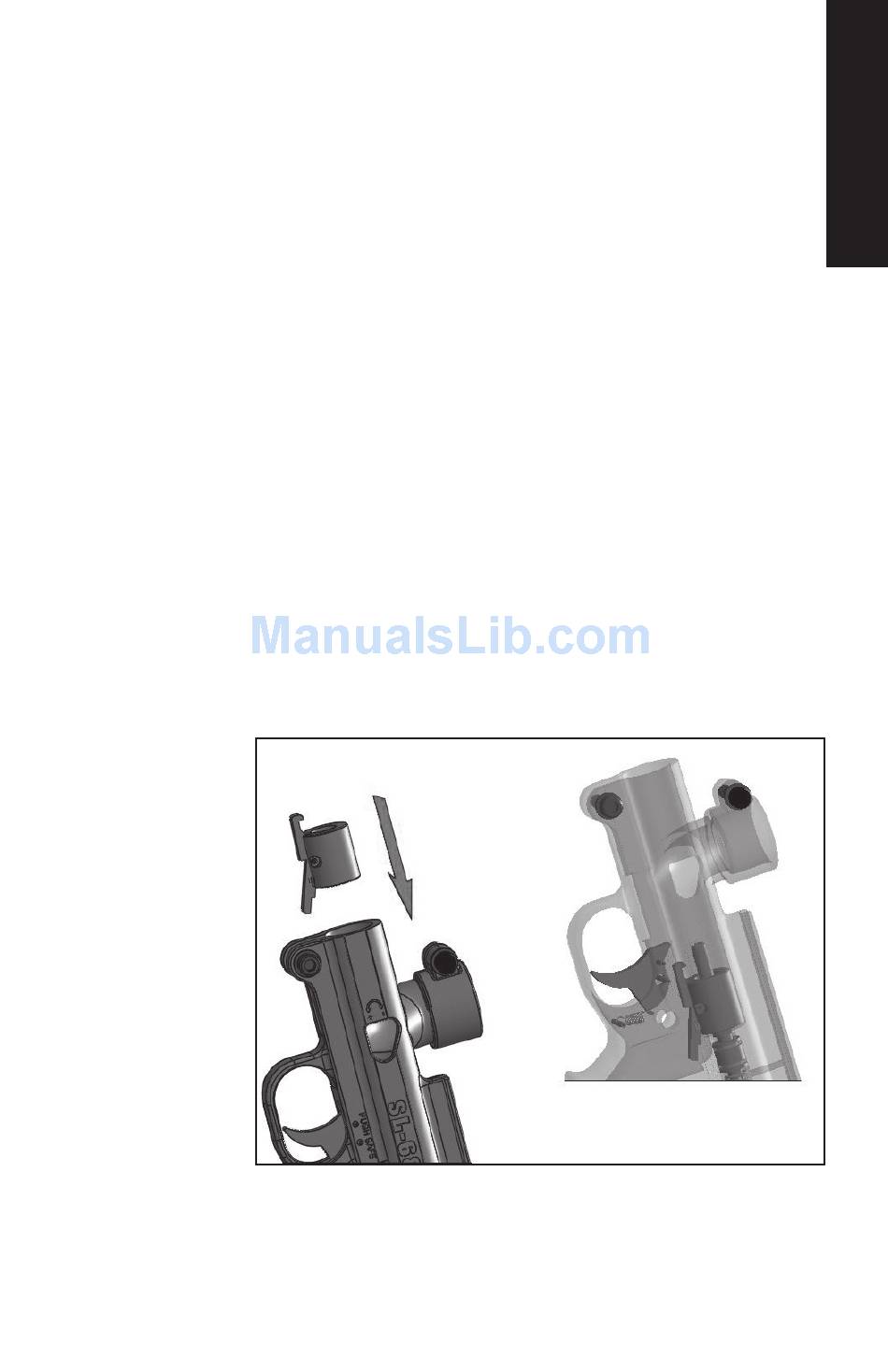

Figure 6: Insert the Hammer and Sear Assembly
You will have to pull the trigger and depress the sear to get the
assembly all the way in.
13
