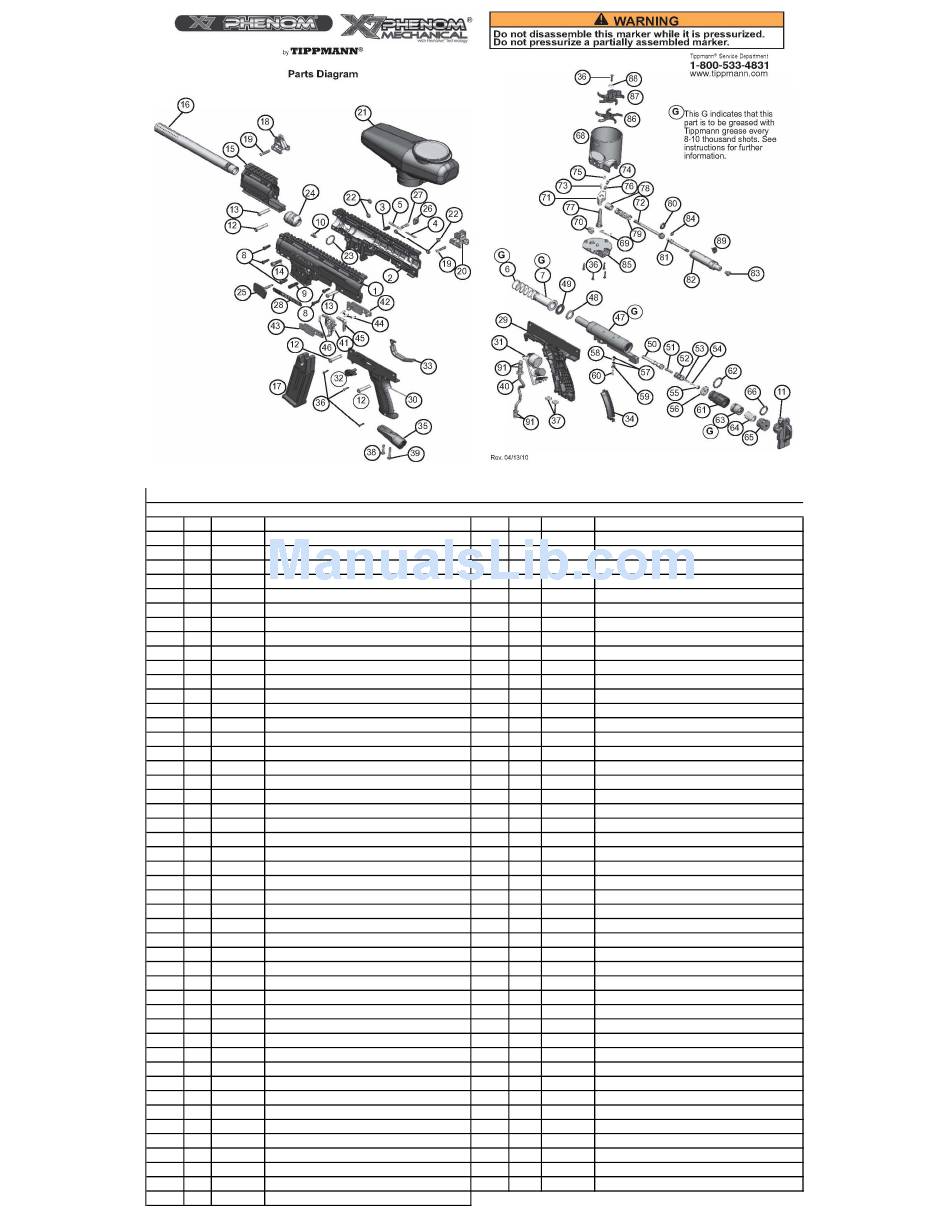

Tippmann X7 PHENOM Parts Diagram

ITEM QTY. PT. NO.
1 1 TA30043 Receiver, Left Half
2 1 TA30044 Receiver, Right Half
3 1 TA30027 CFS Hose Fitting Assembly
4 1 TA05016 Hose, 5/16" ID x 1½"
5 1 TA30057 Compression Spring
6 1 TA30003 Compression Spring
7 1 TA30101 Front Bolt Assembly
8 5 98-01A Screw, LHSHCS
9 1 TA30016 Pressure Gauge Plug Assembly
10 1 FA-18 Ball Latch
11 1 TA10038 End Cap
12 3 TA10045 Push Pin Assembly
13 2 02-PIN Push Pin Assembly
14 1 02–41 ¼ - 20 UNC x " SHCS
15 1 TA30047 Front Grip/Shroud Assembly
16 1 TA30041 Barrel
17 1 TA30004 Magazine
18 1 TA06061 Front Sight Assembly
19 2 TA07065 Bolt
20 1 TA06041 Rear Sight Assembly
21 1 TA10042 Hopper Assembly
22 5 9-PA Hex Nut, Black
23 1 TA20046 O-ring
24 1 02–69 Barrel Adapter Assembly
25 1 TA30006 Magazine Release Pin
26 1 TA30009 Magazine Release Button
27 1 TA30032 Compression Spring
28 1 TA30042 Name Plate
29 1 TA30002 Lower Receiver, Right (Electro-pneumatic model)
29 1 TA30061 Lower Receiver, Right (Mechanical model)
30 1 TA30001 Lower Receiver, Left (Electro-pneumatic model)
30 1 TA30060 Lower Receiver, Left (Mechanical model)
31 1 TA99600 Hall Effect Electronics
32 1 TA30103 Selector Switch
33 1 02–38 Trigger Guard
34 1 TA10066 Battery Door
35 1 TA30015 Air Supply Adapter (ASA)
36 9 PL-42A Screw, #4 x 5/8" Black
37 2 CA-08B Nut, 10-32 Square MS
38 1 PL-01A Screw, BHCS
39 1 98-06A Screw, BHCS
40 1 TA30045 Gas Line Assembly
41 1 TA30100 Trigger Assembly
42 1 TA30008 Trigger Plate, Right
43 1 TA30007 Trigger Plate, Left
44 3 02–33 Dowel Pin,
45 1 TA30013 Trigger Lever
Phenom Marker Parts List
DESCRIPTION ITEM QTY.
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
PT. NO. DESCRIPTION
1 02–88 Compression Spring
1 TA30024 Valve Body, Machined
1 TA30018 Spacer Washer
1 TA20077 Bumper Disk
1 TA30038 Firing Spool Complete
1 TA30030 Compression Spring
1 TA30020 Valve Spool Spacer Complete
1 02–88 Compression Spring
1 TA30028 Regulator Pin
1 TA20075 Regulator Pin Seal
1 TA30025 Regulator Seat
2 TA20008 O-Ring, C.U., 70A, 2-003
1 TA30036 Valve Core
1 TA30037 Trigger Pin Plug
1 TA30039 Trigger Pin
1 TA30026 Regulator Body
1 TA30040 O-ring
1 TA30104 Regulator Piston Assembly
1 TA30031 Compression Spring
1 TA30022 Velocity Adjuster
1 TA30054 O-ring
1 TA30046 Cyclone Feed System Assembly Complete
1 02–43 Feeder Housing
1 02–50 Feeder Ratchet Spring
1 02–42 ¼ - 20 Flange Nut
1 02–53 Feeder Ratchet
1 02–54 Feeder Cylinder Piston
1 02-52L Dowel Pin, 3/32 OD x 7/16"
1 TA01260 Compression Spring
1 02-52S Dowel Pin, 3/32 OD x 5/16"
1 02–51 Ratchet Spring Guide
1 02–49 Feeder Axle
1 02–64 Feeder Cylinder Plug
1 02–66 Compression Spring
1 02–63 Piston U-Cup Seal
1 02–65 Feeder Reset Rod
1 TA10034 Feeder Cylinder
1 02–61 Feeder Reset Button
1 SL2-6 O-Ring
1 02–44 Feeder Bottom Plate
1 TA30012 Lower Feeder Sprocket
1 TA30011 Upper Feeder Sprocket
1 02–48 #4 Flat Washer
1 20-07 Banjo Fitting Assembly
1 TA99004 9V Battery
4 TA30049 O-Ring, Gas Line
