Operation
In operation, many ALIF installations require no intervention once configured.
The TX and RX units take care of all connection control behind the scenes so
that you can continue to work unhindered.
Front panel indicators

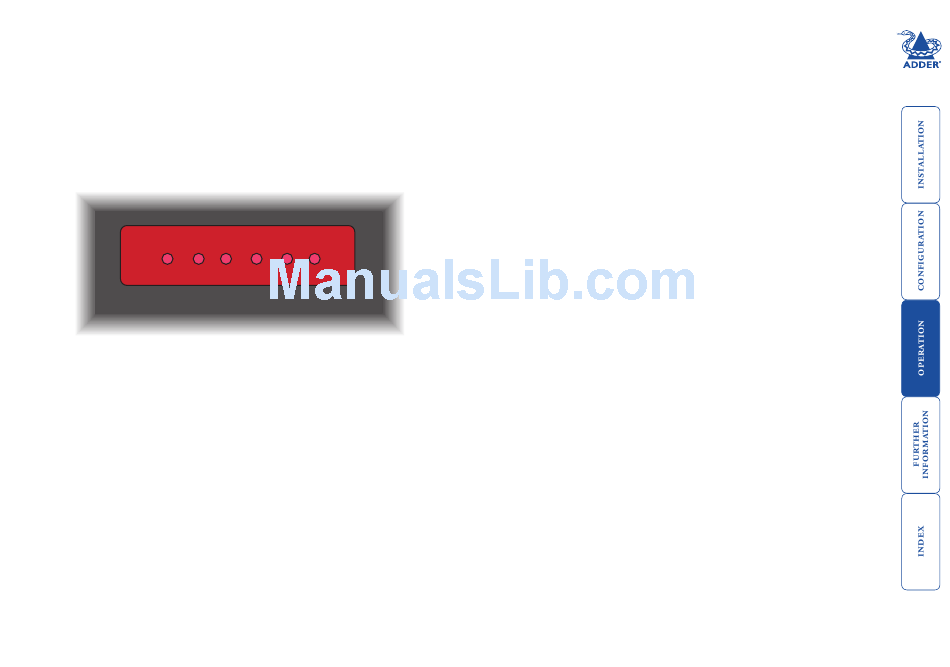

The six front panel indicators on each unit provide a useful guide to operation:
NET SER AUD USB DVI PWR
Indicators
These six indicators clearly show the key aspects of operation:
• NET On when valid network link is present. Flashes when the unit is in error.
• SER On when the AUX (serial) port is enabled and active.
• AUD On when audio is enabled and active.
• USB On when USB is enabled and active.
• DVI On when either or both DVI Video channels are enabled.
• PWR Power indicator.
22
