AdderLink ALIF1000T and ALIF1000R unit features

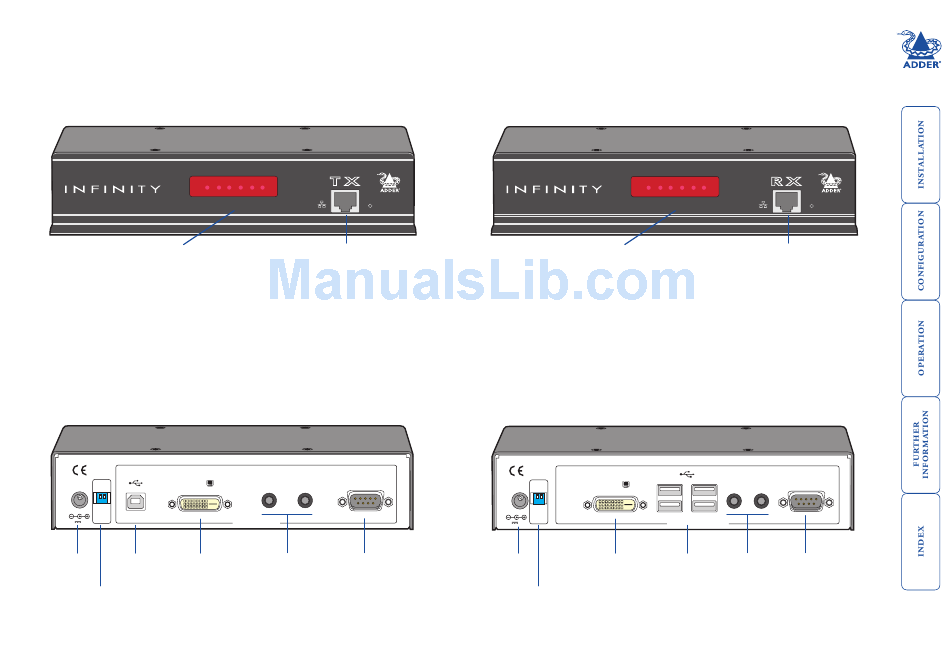

The ALIF1000 units are housed within durable, metallic enclosures with most connectors situated at the rear panel -
the Ethernet ports are situated on the front panels. The smart front faces also feature the operation indicators.
ALIF1000T (transmitter) - front
AdderLink
NET SER AUD USB DVI PWR
Indicators
These six indicators clearly show the key aspects of operation:
• NET On when valid network link is present.
Flashes when the unit is in error.
• SER On when the AUX (serial) port is enabled and active.
• AUD On when audio is enabled and active.
• USB On when USB is enabled and active.
• DVI On when DVI video is enabled.
• PWR Power indicator.
ALIF1000T (transmitter) - rear
INDOOR
USE ONLY DVI-D
OPTIONS
1 2
ON
1 2
5V 2.5A
Power USB Video
input port input
Configuration
switches
T R A N S M I T
www.adder.com
Gigabit
Ethernet
port
LINE OUT AUX
LINE IN
COMPUTER
Audio AUX
line (serial)
in/out port
ALIF1000R (receiver) - front
AdderLink
NET SER AUD USB DVI PWR
Indicators
These six indicators clearly show the key aspects of operation:
• NET On when valid network link is present.
Flashes when the unit is in error.
• SER On when the AUX (serial) port is enabled and active.
• AUD On when audio is enabled and active.
• USB On when USB is enabled and active.
• DVI On when DVI video is enabled.
• PWR Power indicator.
ALIF1000R (receiver) - rear
INDOOR
USE ONLY OPTIONS DVI-D
1 2
ON
1 2
5V 2.5A
Power Video
input output
Configuration
switches
R E C E I V E R
www.adder.com
Gigabit
Ethernet
port
LINE IN/
LINE OUT AUX
MIC IN
USER CONSOLE
USB Audio AUX
ports line (serial)
in/out port
3
