TX USB link

ALIF units act as USB 2.0 hubs
and so can provide four sockets
at the RX unit with only a single
connection at the TX unit.

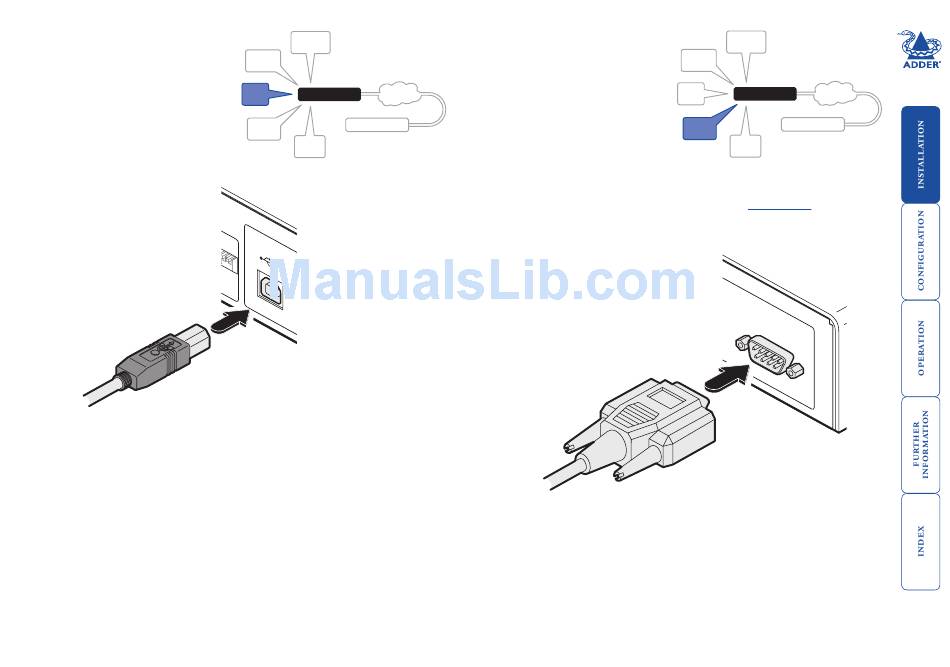

To make a USB link
1 Connect the type B connector
of the supplied USB cable to the
USB port on the TX unit rear
panel.
USB link from
host computer
2 Connect the type A connector of the cable to a vacant USB socket on the
host computer.
VIDEO
LINK
AUDIO
LINKS
USB
ALIF TX LINK
LINK
ALIF RX
SERIAL
LINK
POWER
IN
O P
T I O
N S
1
2
1
2

TX AUX port

The AUX port is an RS232 serial
port that allows extension of RS232
signals up to a baud rate of 115200.
The port has software flow control,
but no hardware flow control.
To connect the AUX port
1 Ensure that power is removed from the ALIF unit.
2 Connect a suitable serial 'null-modem' cable (see
between a vacant serial port on your computer and the AUX port on the
right hand side of the ALIF rear panel.
Serial (null-modem) link
from your computer
VIDEO
LINK
AUDIO
LINKS
USB
ALIF TX LINK
LINK
ALIF RX
SERIAL
LINK
POWER
IN
Appendix D for pin-out)
A U
X
12
