Appendix D

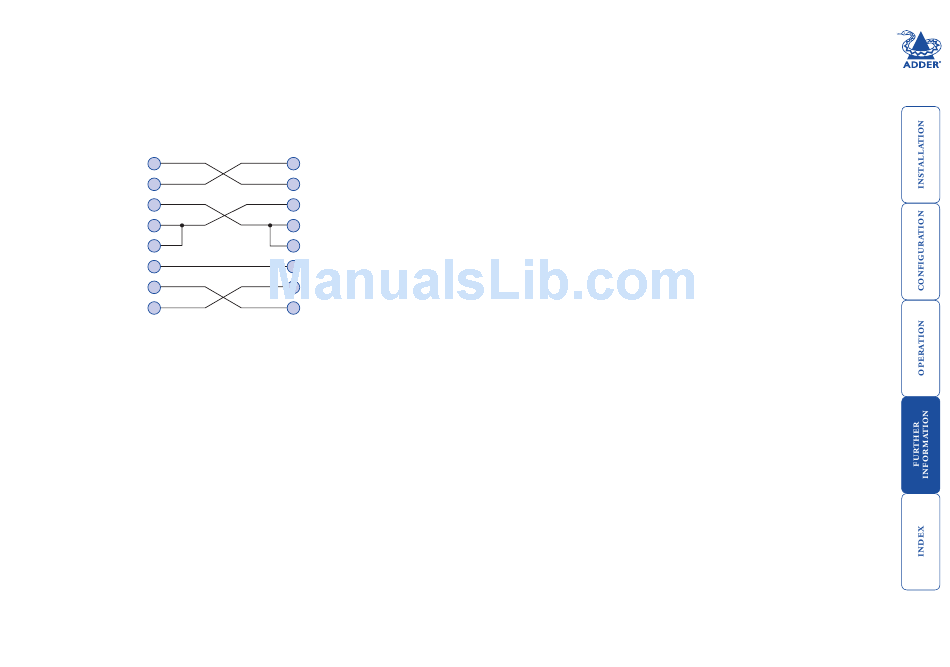

RS232 'null-modem' cable pin-out

9pin D-type
female
2
RXD
3
TXD
4
DTR
6
DSR
1
DCD
5
GND
7
RTS
8
CTS

Supported video modes

ALIF units support all VESA and CEA video modes.
9pin D-type
female
2
RXD
3
TXD
4
DTR
6
DSR
1
DCD
5
GND
7
RTS
8
CTS
ALIF 1000 general specifications
Casing (w x h x d): 198mm (7.92") x 44mm (1.76") x 120mm (4.8")
Construction: 1U compact case, robust metal design
Weight: 0.75kg (1.65lbs)
Mount kits: Rack mount - single or dual units per 1U slot.
VESA monitor / wall mount chassis.
Power to adapter: 100-240VAC 50/60Hz, 0.5A,
Power to unit: 5VDC 12.5W
Operating temp: 0ºC to 40ºC (32ºF to 104ºF)
Approvals: CE, FCC
ALIF 2000 general specifications
Casing (w x h x d): 198mm (7.92") x 44mm (1.76") x 145mm (5.7")
Construction: 1U compact case, robust metal design
Weight: 1.11kg (2.44lbs)
Mount kits: Rack mount - single or dual units per 1U slot.
VESA monitor / wall mount chassis.
Power to adapter: 100-240VAC 50/60Hz, 0.8A,
Power to unit: 5VDC 20W
Operating temp: 0ºC to 40ºC (32ºF to 104ºF)
Approvals: CE, FCC
