AdderLink Infinity
Quick Start Guide
ALIF1000
AdderLink
NET SER AUD USB DVI PWR
ALIF2000
AdderLink
www.adder.com
NET SER AUD USB
DVI PWR
Second port
reserved
NET SER AUD USB DVI PWR
T R A N S M I T
www.adder.com
T R A N S M I T
ALIF 1000 and 2000 (transmitter and receiver) - front panel indicators
The six indicators on TX and RX units clearly show the key aspects of operation:
! NET On when valid network link is present.
Flashes if there's an error.
! SER On when the serial port is enabled and active.
! AUD On when audio is enabled and active.
{
ALIF1000
ALIF2000
Gigabit
Ethernet
Network
Gigabit
Ethernet
Network
OR
Fibre
Optic
Network

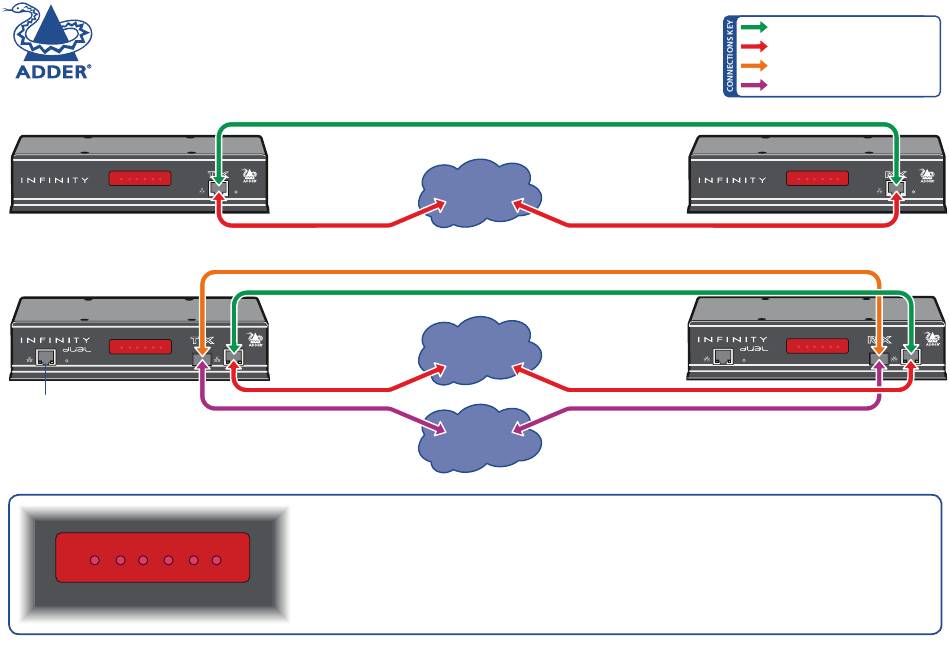

Direct Gigabit Ethernet link
Switched Gigabit Ethernet link
Direct Fibre Optic link
Switched Fibre Optic link
AdderLink
NET SER AUD USB DVI PWR
AdderLink
www.adder.com
NET SER AUD USB
! USB On when USB is enabled and active.
! DVI On when DVI video is enabled and active.
! PWR Power indicator.
R E C E I V E R
www.adder.com
R E C E I V E R
DVI PWR
