RX power in

Each ALIF unit is supplied with an
appropriate power adapter. When
all other connections have been
made, connect and switch on the
power adapter unit.
Note: Please see Power adapter
identification shown opposite.

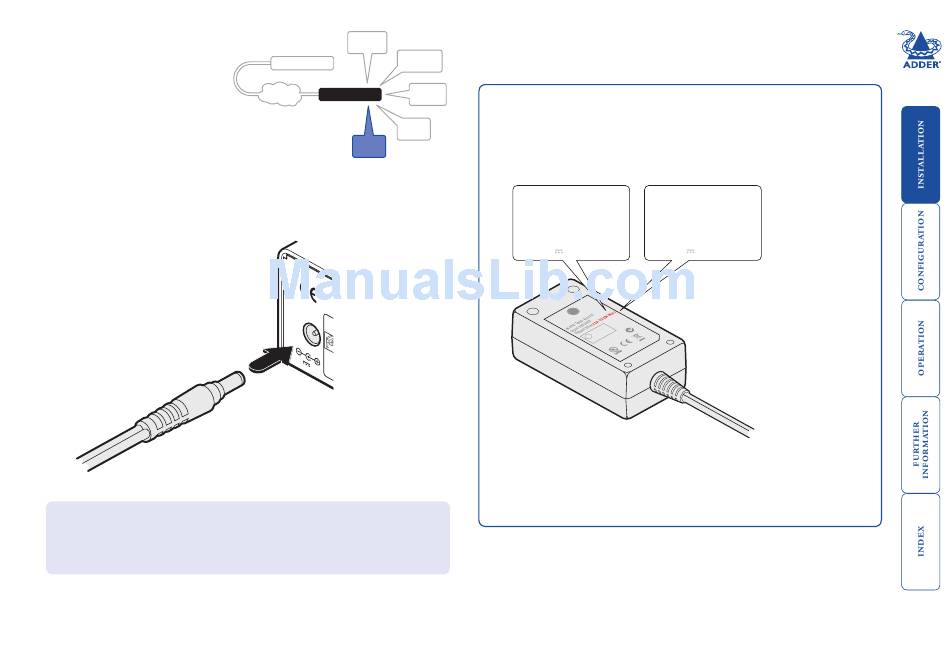

To apply power in
1 Attach the output lead from the power adapter to the
panel of the unit.
2 Connect the IEC connector of the supplied country-specific power lead to
the socket of the power adapter.
Power lead from
power adapter
3 Connect the power lead to a nearby main supply socket.
Note: Both the unit and its power supply generate heat when in operation and
will become warm to the touch. Do not enclose them or place them in locations
where air cannot circulate to cool the equipment. Do not operate the equipment
in ambient temperatures exceeding 40
with equipment whose surface temperature exceeds 40
VIDEO
DISPLAY
MIC &
ALIF TX
SPEAKERS
LINK ALIF RX
DEVICES
SERIAL
LINK
POWER
IN
socket on the rear
5V
I N D
U S O O
E O
R
N L
Y
O P
T
Note: Ensure that
1
Option switches
5 V
1 and 2 are both
2 . 5
1
A
in the 'off' (up)
position to enable
normal operation
of the unit.
o C. Do not place the products in contact
C.
o
USB

Power adapter identification

Due to the increased power requirements of the ALIF2000 series, these models
are supplied with larger capacity (20W) power adapters. The standard 12.5W
and higher power 20W adapters use identical housings, so within installations
where both types are used, you need to double check the underside labels to
differentiate the two types:
12.5W model
(for ALIF1000)
Model: SA06-xxxxx-V
Input: 100-240V
Output: 5V 2.5A (12.5W Max.)
No damage will be caused if the 12.5W adapter and the 20W adapter are used
in place of each other on either of the ALIF1000 or ALIF2000 units. However,
correct operation of ALIF2000 units can only be guaranteed if a 20W power
adapter is used. Always ensure that only ADDER 5-volt power supplies are used
to power the units.
20W model
(for ALIF2000)
Model: SA06-xxxxx-V
Input: 100-240V
Output: 5V 4A (20W Max.)
Power adapter
18
