TX USB link

ALIF units act as USB 2.0 hubs and so can
provide four sockets at the RX unit with
only a single connection at the TX unit.

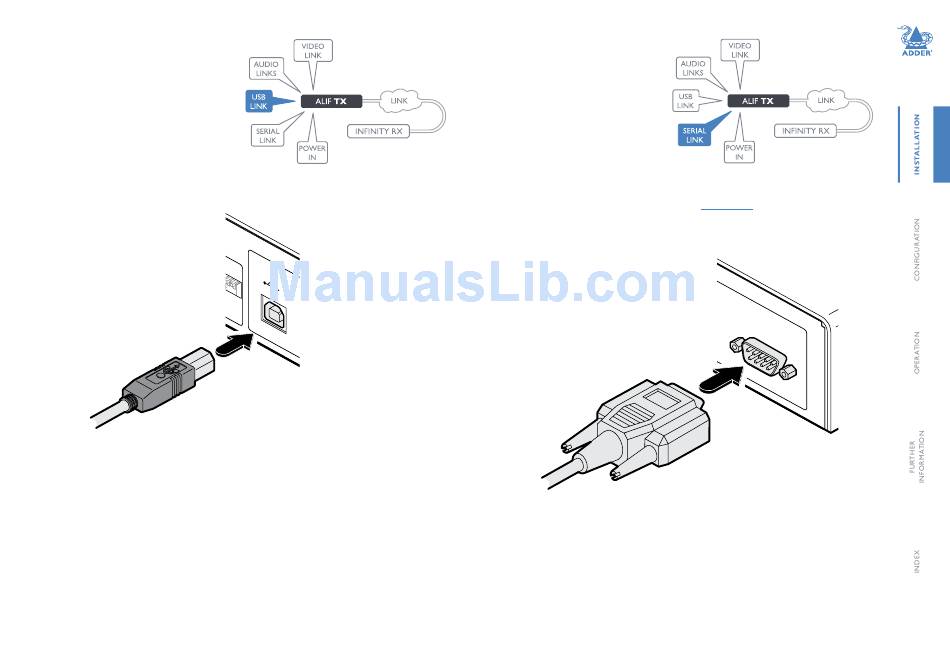

To make a USB link
1 Connect the type B connector of the supplied USB cable to the USB port on the TX
unit rear panel.
USB link from
host computer
2 Connect the type A connector of the cable to a vacant USB socket on the
host computer.
O P
T I O
N S
1
2
1
2

TX AUX port

The AUX port is an RS232 serial port
that allows extension of RS232 signals up
to a baud rate of 115200. The port has
software flow control, but no hardware
flow control.
To connect the AUX port
1 Ensure that power is removed from the ALIF unit.
2 Connect a suitable serial 'null-modem' cable (see
vacant serial port on your computer and the AUX port on the right hand side of the
ALIF rear panel.
Serial (null-modem) link
from your computer
Appendix F for pin-out) between a
A U
X
9
