Designing Labels Using LDS Chapter 4
The command ^D56<CR> selects the user's layout or more simply the end of the formatting
information.
The command ^D2<CR> instructs the printer to start accepting data for each of the defined
field's strings that are entered into the previous format received (between the ^D57 and
^D56 commands). Field #1 defines the placement and configuration for Text Data String
#1; Field #2 defines the placement and configuration for Text Data String #2, etc... The
label is printed from the bottom left corner to the top of the label.
The next three lines are the text data for the associated field format lines.
Text Data String #4 is being accessed twice. The format places the Text "012345" on the
label and then is accessed again placing a Code39 symbol representing "012345" on the
label.
The command ^D3<CR> instructs the printer to print.
Micr oco m
Co rpor a tion
Thermal Printing Solutions
012345

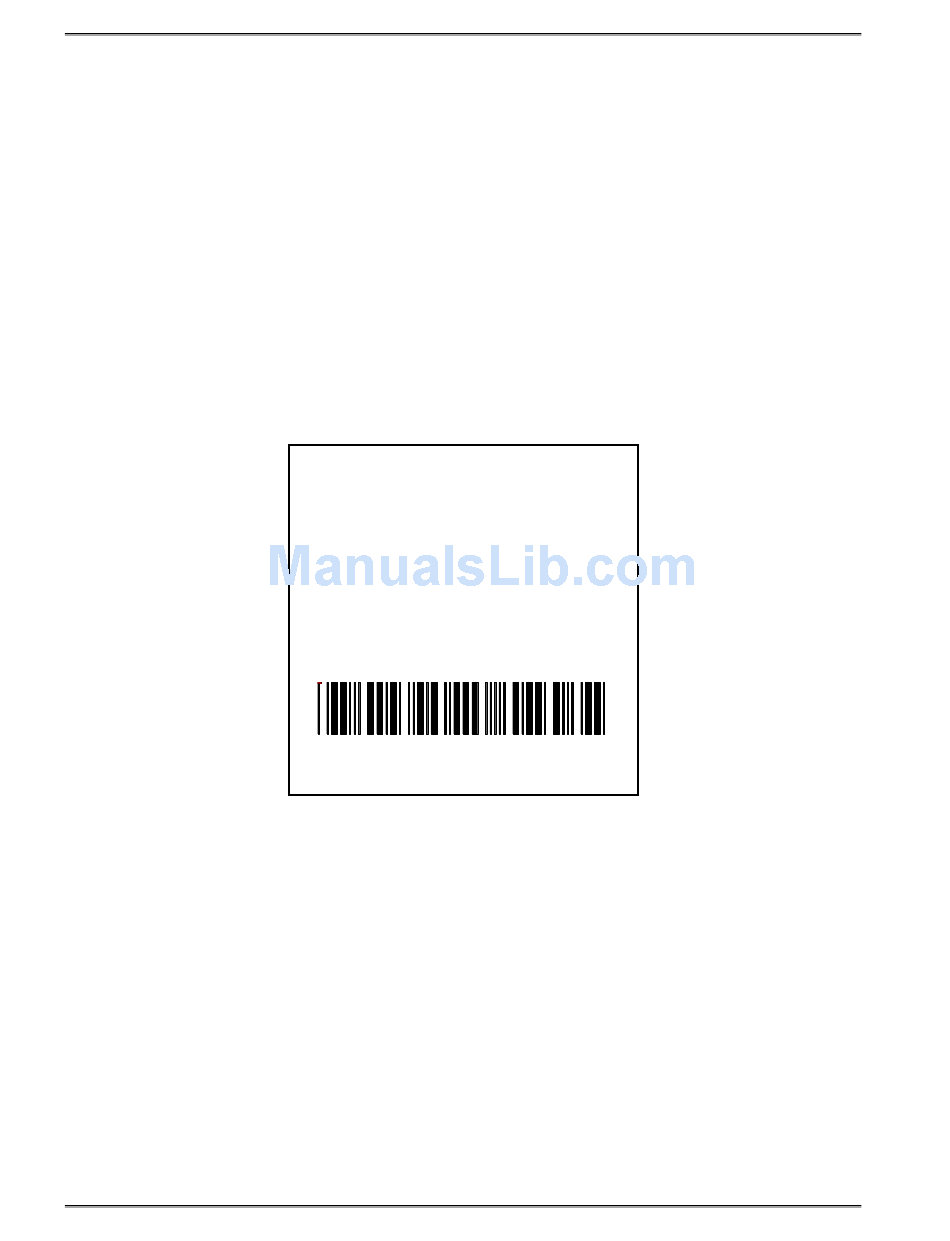

Figure 4-2 3x3 Sample Label

4.4 Label Header

The label header consists of eleven parameters that control the media layout as well as
printer configuration. A comma (,) delimiter is used to separate the parameters and a
carriage return is required to terminate the header.
The values for header elements requiring measurements are expressed as thermal dots or
pixels. Dot or pixel size varies depending upon the print resolution of the print head. The
dot size of a 300 dots per inch head (12 dots/mm) is 0.0033". The dot size is the same in
both the horizontal and vertical direction. For example, a 4" X 6" label printed with a 300
DPI print head would be 1200 (4 X 300 dots in the horizontal or "X" direction, and 1800 (6 X
300) dots in the "Y" direction.
4-4 428TM Operator's Manual - 880042-0141
