Fluke Visual UpTime Select 807-0115 Brochure & Specs page 9

10/100/1000 Ethernet ASE
With SPAN mode capabilities
Key features
• 500 MB of total analysis
• SPAN mode deployment
• Deployable in DS3, NxDS3, Fractional
OC3, and Ethernet to Premises topologies
• IP Transport or LAN Visibility software
• Voice over IP (VoIP) analysis capability
• Application analysis capability
• LAN management port
• Realtime events
Technical Data
The Visual UpTime® Select™ 10/100/1000 Ethernet
ASE enhances the analysis functionality of Visual
UpTime Select for Ethernet networks. The ASE
provides up to 500 Mbps of detailed network traffi c
analysis and management, while maintaining full wire
speed pass-through of all traffi c. It supports both IP
Transport and LAN Visibility software
Designed for business class DSL and cable, the
10/100/1000 Ethernet ASE has a wide variety of
deployment options. The IP Transport Ethernet ASE is
deployed off a LAN switch SPAN port (see fi gure).

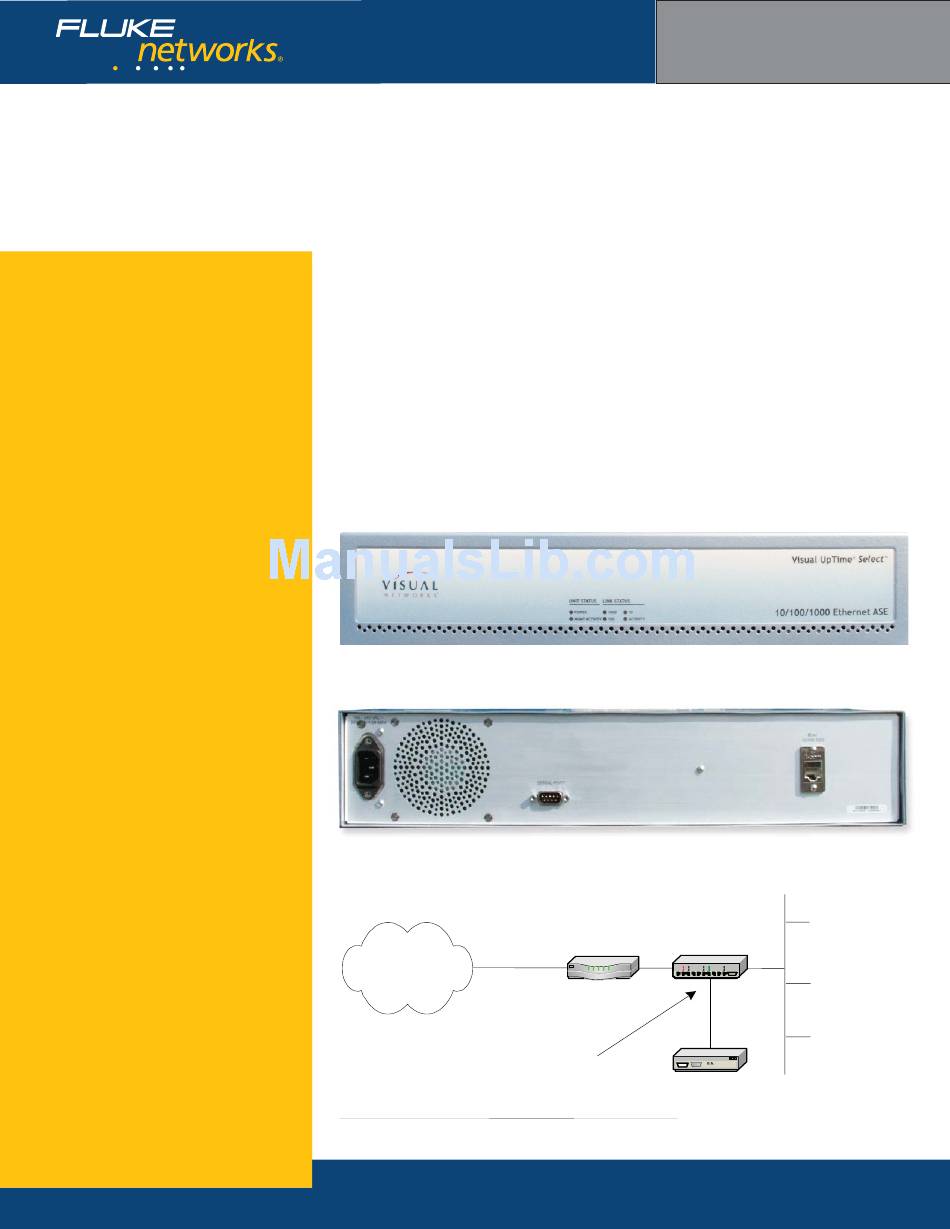

Ethernet inline probe model 807-0220 front view
Ethernet inline probe model model 807-0220 rear view
Wide Area
Network
Ethernet probe model 807-0220 deployed on a LAN switch SPAN port
Visual UpTime Select
ASE model 807-0220
The LAN Visibility Ethernet ASE is deployed on the
LAN. The ASE collects and displays application fl ow
traffi c on the LAN between clients and application
server. In contrast, the IP Transport ASE is designed
to display only traffi c to or from the WAN, and ignore
local traffi c (such as between a client and an Inter-
net or application server).
Customer
LAN Switch
Edge Router
SPAN port
Ethernet ASE LAN
