Fluke TAP-1000BT-BT Quick Installation Manual

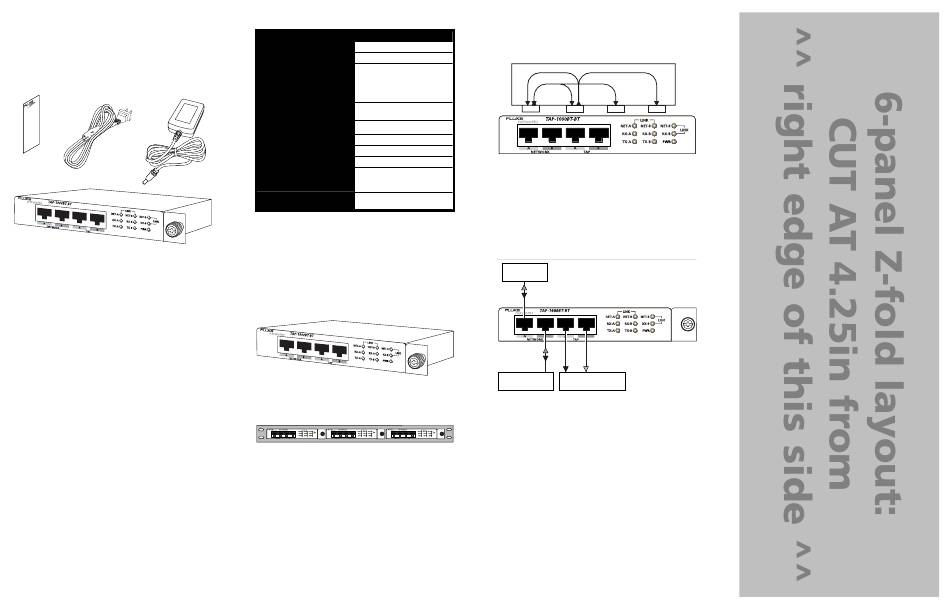

Unpacking
(1) Quick Installation Guide
(1) TAP-1000BT-BT
(1) AC Power Cable
(1) AC Power Supply
AC Power AC Power
Quick Cables
Supplies
Installation
Guide
TAP-1000BT-BT
Introduction
The TAP-1000BT-BT is a single-port, full-duplex device
that provides an easy method to rapidly and effectively
deploy analysis tools to monitor 1000BASE-T traffic
between network devices. Typically, install the tap
on a critical 1000BASE-T link in the network where
monitoring and analysis capabilities are important.
TAP-1000BT-BT features and benefits:
• 1000Base-T compatible
• Full duplex monitoring
• Power fault tolerant
• Standard RJ45 connectors
TAP-1000BT-BT Specifications
FEATURE SPECIFICATION
CHANNEL One-directional 1000BASE-T Ethernet
CABLE TYPE CAT 5E
PORT CONNECTIVITY
NETWORK A RJ45
NETWORK B RJ45
TAP A RJ45
TAP B RJ45
90m max. length between
DISTANCE LIMIT
network end-points. Tap typically 1m.
POWER REQUIREMENTS External power supply 5V DC, 2A
OPERATING TEMPERATURE 0° to 40°C (32° to 104°F)
STORAGE TEMPERATURE -30° to 65°C (-22° to 149° )
HUMIDITY RH 5% to 95% non-condensing
(H) 28mm x (W) 146mm x (D) 146mm
DIMENSIONS (H) 1.10" x (W) 5.75" x (D) 5.75"
(includes rack mount bracket)
unit: 340.2g (12oz)
WEIGHT
shipping: 907.2g (2lbs)
R R A A C C K K I I N N S S T T A A L L L L A A T T I I O O N N M M E E T T H H O O D D S S
Prior to installation, you may want to contact your
Fluke Networks representative first to learn more
about using the included thumbscrew mounting
bracket for mounting in either a 1U 3-bay (TAP-RMK-3)
or 4U-14 bay (TAP-RMK-14) Rack Mount Kit.
Figure 1. TAP-1000BT-BT unit shown with included
thumbscrew bracket for standalone mounting
Figure 2. Three TAP-1000BT-BT units shown mounted in
optional 3-bay (TAP-RMK-3) Rack Mounting Kit
Figure 3. TAP-1000BT-BT units shown mounted in optional
14-bay (TAP-RMK-14) Rack Mounting Kit
F F U U N N C C T T I I O O N N A A L L O O P P E E R R A A T T I I O O N N
Refer to Figure 3 below for a diagram of the
functional operation of the TAP-1000BT-BT.
A B A B
Figure 3. TAP-1000BT-BT Functional Diagram
C C O O N N N N E E C C T T I I N N G G T T H H E E T T A A P P - - 1 1 0 0 0 0 0 0 B B T T - - B B T T
T T O O A A N N E E T T W W O O R R K K
To connect the TAP-1000BT-BT into a network,
refer to Figure 4 below and follow these steps:
Distribution
Full Duplex
Network Cable
Full-Duplex
TAP Cables
Network Cable
Access Switch Network Analysis Tool
Figure 4. TAP-1000BT-BT simple connectivity diagram
IMPORTANT
Do not exceed the maximum length of 90 meters
between end-points.
